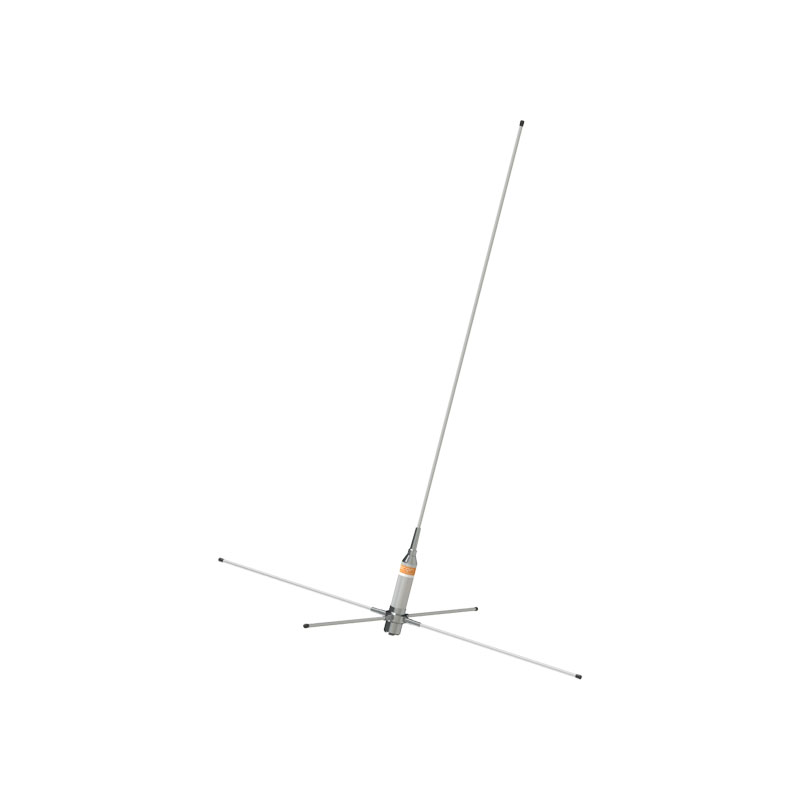

Scan Antenna VHF96 High-Performance Multi-Purpose VHF Antenna
Scan Antenna VHF96 Outdoor Antenna is a premium, fiberglass omnidirectional antenna designed for demanding maritime and land-based communication systems. Built to withstand the harshest environments, it provides reliable performance across the entire international maritime VHF band.
Features
-
Broadband Performance: Covers a wide frequency range without the need for tuning.
-
Marine-Grade Durability: Housed in a high-quality, tapered glass fiber tube with a glossy white finish to resist UV and salt spray.
-
Internal Protection: All internal metal parts are DC-grounded to significantly reduce noise and provide protection against atmospheric discharges (lightning).
-
Universal Mounting: Features a standard 1-inch (1″-11TPI) threaded base, making it compatible with a wide range of standard marine brackets.
Specifications
| Feature | Specification |
| Frequency Range | 146 – 162.5 MHz (VHF) |
| Gain | 0 dBd (2.1 dBi) |
| Polarization | Vertical |
| Impedance | 50 ohm |
| Max Power | 100W |
| VSWR | < 1.5:1 at resonance |
| Connector | UHF-Female (SO-239) or N-Female |
| Length | Approx. 1.0 meter (3.3 feet) |
| Weight | 0.5 kg |
Applications
-
Commercial Shipping: Reliable ship-to-shore and ship-to-ship VHF communication.
-
Pleasure Craft: A sleek, durable upgrade for yachts and motorboats.
-
Fixed Land Stations: Ideal for coastal monitoring stations or private VHF networks.
