TC-600-NMH-X N Male Connector

TC-600-NMH-X High-Performance N-Male Connector for LMR-600 Cable

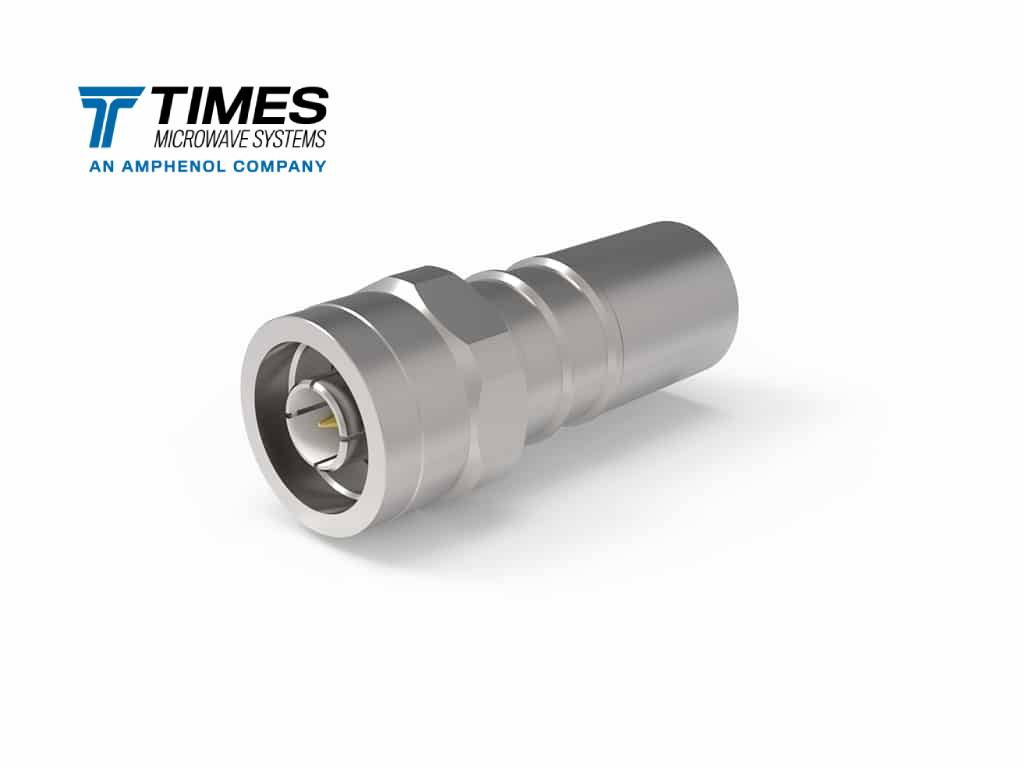

TC-600-NMH-X is a precision-engineered N-Male (Plug) connector from Amphenol Times Microwave Systems, specifically designed to deliver optimized electrical performance with LMR-600 and equivalent 50-ohm coaxial cables (including FBT-600, T-RAD-600, and TCOM-600). Built for critical RF infrastructure, this connector guarantees a low-loss, high-bandwidth signal path up to 6 GHz.

The Definitive High-Performance N-Type Connector for LMR-600

• Exceptional RF Performance: Features a low VSWR (Voltage Standing Wave Ratio) of < 1.30:1 and an ultra-low insertion loss of typically 0.1  dB (DC to 3 GHz), ensuring maximum power transfer and signal integrity across high-frequency bands.

• Broadband Compatibility: Rated for an impressive maximum frequency of 6 GHz, making it an ideal and future-proof solution for 4G/5G, WLAN, telemetry, and critical communication links.

• Robust & Durable Construction: The body is constructed from high-quality brass with an Albaloy (White Bronze) finish, offering superior corrosion resistance and long-term durability in challenging environments.

• Gold-Plated Contacts: The male pin contact is gold-plated over a nickel barrier, providing infallible conductivity and maintaining high-quality signal transfer over extensive operating cycles.

• Secure Crimp and Solder Termination: Utilizes a secure, industry-standard crimp-on outer contact and a solder-on inner contact method, ensuring a mechanically reliable and electrically sound field termination.

TC-600-NMH-X Specification

Recommended tools

• Stripping/Prep Tool CST-600

• Crimping Tool CT-600

• Crimping Die (Hex Size)

• Deburring Tool DBT-01
