TC-600-NMH-RA-D N Male Right Angle Connector

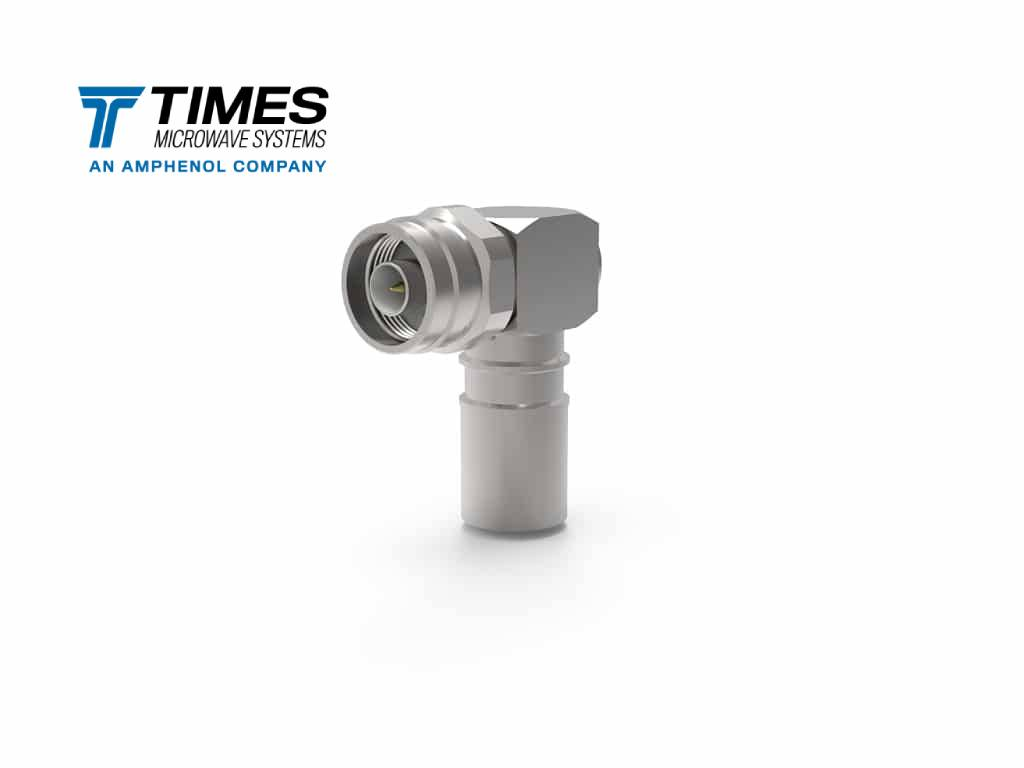

TC-600-NMH-RA-D the Precision N-Male Right-Angle Connector for LMR-600 Series Cables

TC-600-NMH-RA-D is the definitive solution for high-frequency coaxial cable termination in densely packed or restricted-space RF systems. This N-Male (Plug) Right-Angle TC Connector is specifically engineered for LMR-600, FBT-600, and other 600-series cables, providing a reliable and streamlined connection that eliminates strain and maximizes efficiency.

Ultimate space-saving design with uncompromising 6 GHz RF performance

• High-Performance RF Integrity: Engineered to maintain superior signal quality up to 6 GHz, ensuring minimal signal loss and an excellent VSWR of <1.30:1.

• Space-Saving Right-Angle Design: The 90-degree orientation is essential for tight enclosures, equipment rack jumpers, and installations where cable bending radius is a critical constraint.

• Rugged, Weatherproof Construction: Features a durable Alballoy body and a Gold-plated center pin, guaranteeing long-term corrosion resistance and infallible connectivity in demanding environmental conditions (Rated for -55 C to +155 C).

• Secure Termination Method: Utilizes a solder inner contact for a robust electrical connection, paired with a crimp outer contact for superior mechanical strength and shielding effectiveness.

TC-600-NMH-RA-D Specification

Required Tools

CST tool Cable Strip tool

DBT-01 deburring tool

CT-600 Crimping tool

Soldering Equipment
