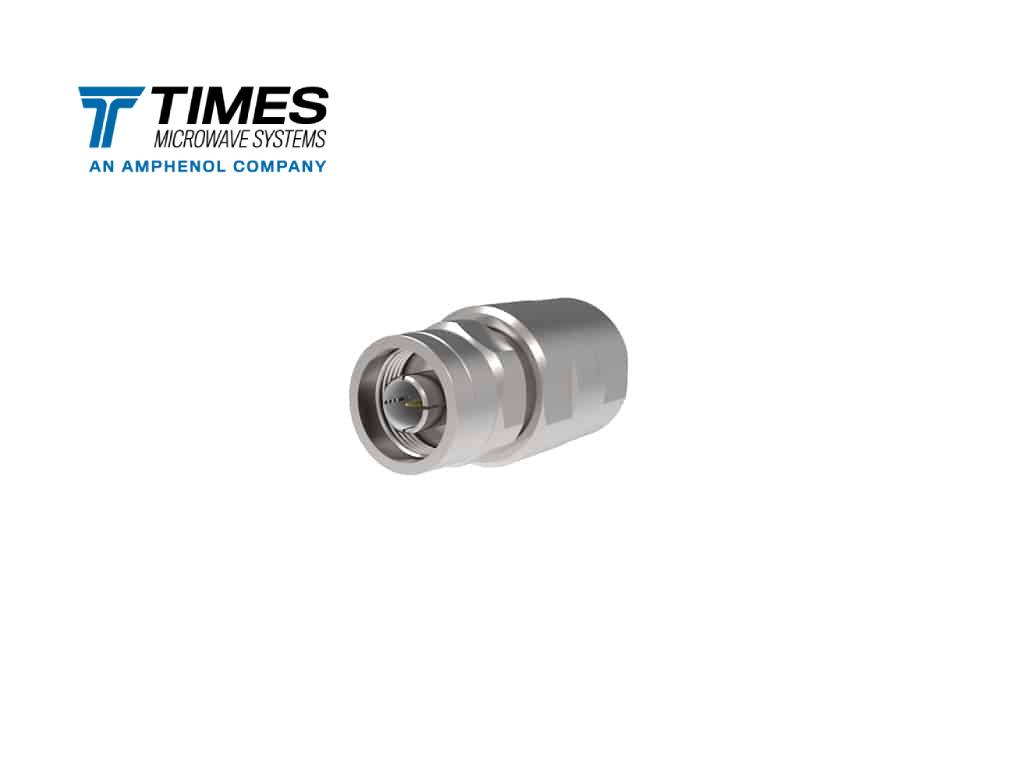

TC-600-NMC-2-D N Male Straight TC Style Connector
TC-600-NMC-2-D is a high-performance Type N Male (Plug), Straight TC style radio frequency (RF) coaxial connector. It’s engineered for durability and excellent RF performance, making it an ideal choice for critical communication and signal transmission systems. This connector is specifically designed for use with LMR-600 and equivalent 600-series cables that have a stranded center conductor.
TC Style Connector Benefits
-
Superior RF Performance: Designed for systems where excellent RF and mechanical performance is critical, ensuring reliable signal integrity.
-
Weatherproof & Durable: The Type N interface is known for its durability and weatherproof capabilities, suitable for both indoor and outdoor applications.
-
Solder-Pin Contact: Features a solder-pin inner contact attachment, providing a secure and low-resistance electrical bond, particularly suited for cables with stranded center conductors.
-
Threaded Coupling: Utilizes a threaded coupling mechanism for a secure and stable connection that meets or exceeds MIL-C-39012 specifications.
-
High-Quality Finish: The body features an Allbaloy finish, and the inner pin is gold-plated for enhanced conductivity and corrosion resistance.
TC-600-NMC-2-D Specifications
| Attribute | Specification |
| Interface | N Type |
| Gender | Male (Plug) |
| Orientation | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| VSWR (Voltage Standing Wave Ratio) | <1.35:1 at 6 GHz |
| Inner Contact Attachment | Solder |
| Outer Contact Attachment | Clamp |
| Body Finish | Allbaloy |
| Pin Finish | Gold |
| Dimensions (Length) | 47 mm (1.85 in) |
| Weight12 | 92 g (0.2 lb)13 |
Recommended Tools
-
CST-600 Cable Strip Tool
-
CT-600 Crimp Tool
