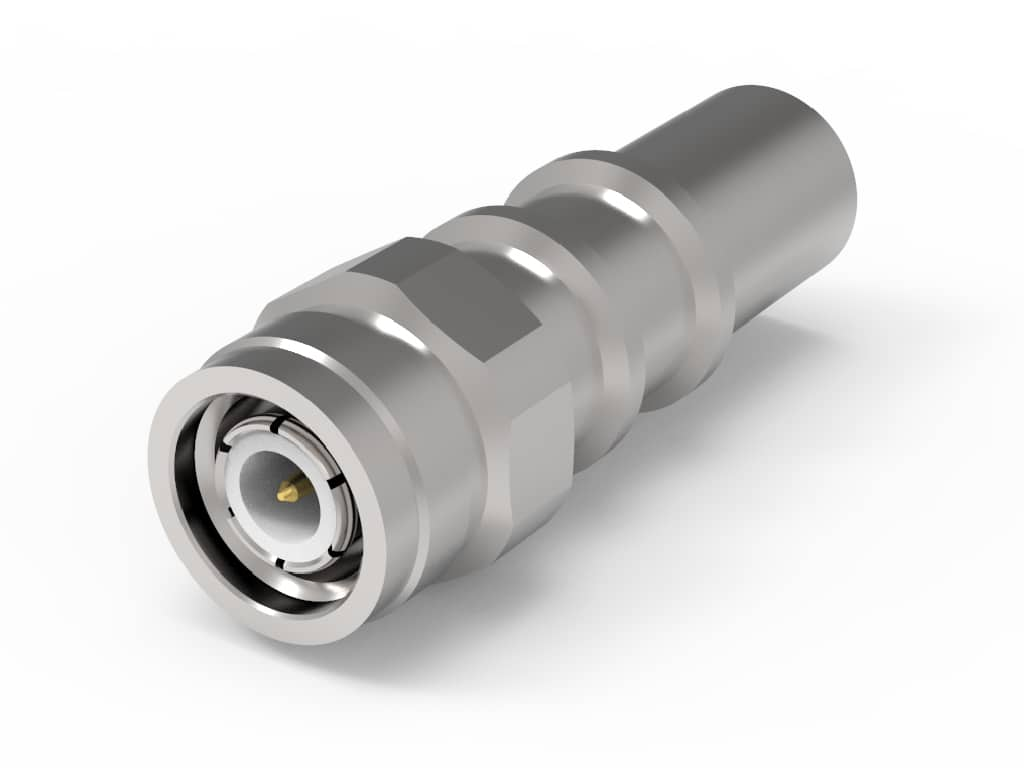

TC-400-TM-X Premium TNC Male (Plug) Straight Connector for LMR-400
As the Exclusive Distributor for Times Microwave Systems, Soyuztec Trading LLC provides high-performance RF connectivity solutions engineered for reliability. The TC-400-TM-X is a high-frequency, weatherproof TNC connector designed specifically for 400-series cables, offering superior performance over standard BNC interfaces.
Features
-
High-Frequency Performance: Optimized for operation up to 6 GHz.
-
Weatherproof Design: Threaded interface ensures a secure, moisture-resistant connection.
-
Durable Construction: Features an Alballoy® body finish for excellent corrosion resistance and a Gold-plated center pin for maximum conductivity.
-
Precision Fit: Specifically engineered for LMR-400, TCOM-400, and FBT-400 coaxial cables.
Specifications
| Attribute | Detail |
| Connector Style | TNC |
| Gender | Male (Plug) |
| Interface | Straight, Threaded Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-400 (FBT-400, TCOM-400, T-RAD-400) |
| Inner Contact Attachment | Solder |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Alballoy (White Bronze) |
| Center Contact Plating | Gold |
| VSWR (DC-6 GHz) | < 1.30:1 |
| Mating Cycles | 500 |
Compatibility & Tooling
To ensure a MIL-spec quality termination, Soyuztec recommends the following genuine Times Microwave tools:
-
Compatible Cables: LMR-400, LMR-400-DB, LMR-400-FR, TCOM-400.
-
Prep Tool: CST-400 (Strip tool).
-
Crimp Tool: CT-400/300 (Crimp handle with 0.429″ hex die).
-
Cutting Tool: CCT-01.
Why Source from Soyuztec Trading LLC?
Soyuztec Trading LLC is your trusted partner for high-quality RF components. We ensure
-
Genuine Products: 100% authentic Times Microwave Systems hardware.
-
Technical Support: Expert guidance on cable assembly and connector selection.
-
Ready Stock: Fast lead times for time-sensitive projects in the UAE and beyond.
