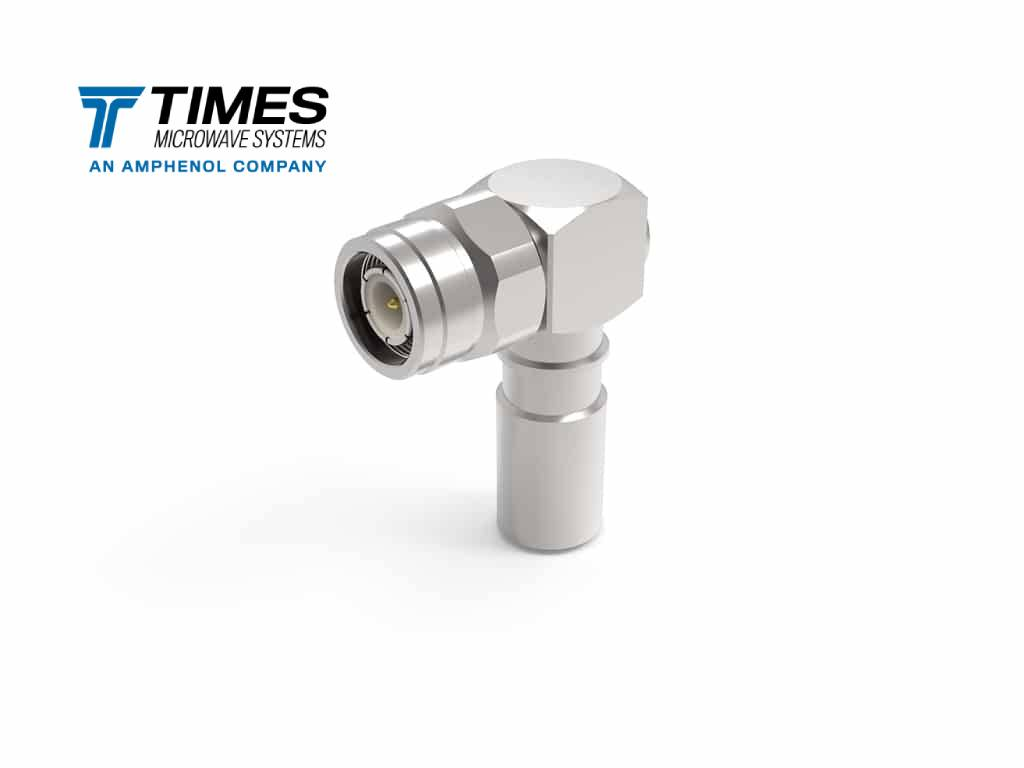

TC-400-TM-RA-D TNC Male Right Angle Crimp/Solder Connector for LMR-400 Coaxial Cable
The TC-400-TM-RA-D is a right-angle (90°), high-performance TNC male (plug) connector designed for use with LMR-400 and comparable flexible, low-loss coaxial cables. Due to spatial limitations, this specialized connector is crucial for routing the thicker LMR-400 cable out of the equipment right away. It provides the rugged, threaded TNC interface and the superior low-loss performance required for demanding RF applications up to 6 GHz.
Key Features & Advantages
- Right-Angle Design: The 90-degree body allows the thick LMR-400 coaxial cable to route immediately parallel to the equipment surface, minimizing coaxial cable bending stress and reducing the required operational footprint.
- LMR-400 Optimized: Precisely matched to the electrical and physical requirements of LMR-400 coaxial cable, ensuring maximum signal transfer and the lowest possible signal loss.
- TNC Threaded Interface: Provides a secure, vibration-resistant threaded coupling, offering reliable performance superior to bayonet (BNC) connectors in high-vibration environments.
- Crimp Termination: Uses a traditional, proven crimp method for ferrule, ensuring a robust mechanical and electrical termination.
- High-Frequency Capability: Engineered for reliable operation up to 6 GHz, suitable for modern wireless and data systems.
TC-400-TM-RA-D Detailed Technical Specifications
| Attribute | Detail |
| Connector Style | TNC |
| Gender | Male (Plug) |
| Interface | Right-Angle (90°), Threaded Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-400 (and equivalents) |
| Inner Contact Attachment | Solder or Non-Solder Pin (consult datasheet) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Operating Temperature | Designed for wide commercial/industrial range |
Typical Applications
The right-angle configuration and LMR-400 low-loss capability make the TC-400-TM-RA-D invaluable for:
- Designed for server racks, this equipment provides effective strain relief and neat routing for connecting large-diameter cables.
- Antenna Systems: Enables a low-profile connection for base station antennas or equipment ports requiring LMR-400 cable.
- Its compact size makes this telemetry ideal for installations in vehicles or tight chassis.
- Test and Measurement: Creating custom low-profile, low-loss jumper cables for lab environments.
Installation & Recommended Tooling
Working with LMR-400 requires heavy-duty, precise tooling:
- Crimping Tool: Requires the appropriate hex die size (consult datasheet, typically .429″ HEX) for the ferrule.
- Cable Prep Tool: A dedicated LMR-400 strip tool CST-400 is required
