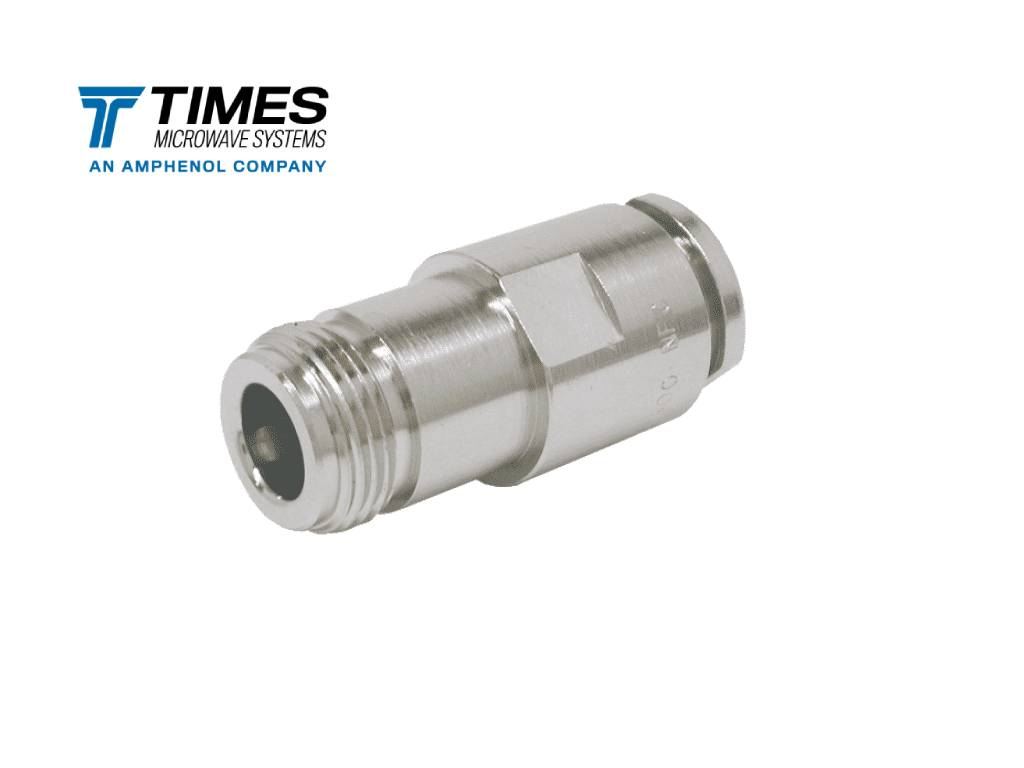

TC-400-NFC N-Female Coaxial Connector for LMR-400 Times Microwave
TC-400-NFC is a robust, high-performance Type N Female (Jack) coaxial connector engineered for seamless integration with LMR-400 series cables and similar high-quality coaxial cables. It’s the ideal choice for demanding applications where signal integrity and reliability are paramount.
- Exceptional RF Performance: Low VSWR (Voltage Standing Wave Ratio) of <1.25:1 up to 2.5 GHz ensures minimal signal reflection and maximum power transfer.
- Durable & Weatherproof: As a medium-size RF connector, the Type N interface is renowned for its durability and weatherproof design, making it suitable for both indoor and harsh outdoor environments.
- High-Quality Plating: Features a Gold-plated center contact for enhanced mate/de-mate life and a Nickel or Alballoy body finish for superior corrosion resistance.
- Secure Connection: Utilizes a reliable threaded coupling mechanism that is fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.
- Solder-Pin Design: The solder-on center contact makes it a perfect option for cables with stranded center conductors, ensuring a secure and low-resistance connection.
- Easy Termination: Designed for straightforward field installation with a clamp-on outer contact (braid) for efficient and reliable termination.
Technical Specifications
| Feature | Specification |
| Connector Type | Type N Female (Jack) |
| Interface | N Type |
| Style | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 2 GHz (or 2.5 GHz depending on specific variant/testing) |
| VSWR (Max) | <1.25:1 @ 2.5 GHz |
| Cable Group Compatibility | LMR-400, FBT-400, TCOM-400, T-RAD-400-FR |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Clamp |
| Body Material | Brass |
| Body Finish | Nickel or Alballoy (White Bronze) |
| Pin Finish | Gold or Silver (Center Contact Plating) |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
| Operating Temperature | -40°C to 85°C (some variants: -65°C to 165°C) |
| Mounting | Free Hanging (In-Line) |
Applications
The TC-400-NFC is engineered for professional and high-reliability coaxial cable assemblies in a wide range of RF and microwave systems.
- Wireless Communication: Connectors for cellular/mobile base stations and infrastructure.
- Amateur Radio: Ideal for high-power, low-loss connections in Ham Radio setups.
- Broadband: Use in various telecom and broadcasting equipment.
- Testing and Measurement: Reliable connections for laboratory and field RF test equipment.
- Antenna Systems: Connecting high-gain antennas to low-loss coaxial cable runs.
Compatible Tools & Accessories
Ensure a professional and reliable installation with the following compatible tools:
- Cable Prep Tool: CST-400 (for cutting the LMR-400 jacket and dielectric to the correct dimensions).
- Cutting Tool: CCT-02 / CCT-03 (for cable trimming).
- Weather Sealing: Use of a Weather Seal Strain Relief Boot is highly recommended for outdoor installations to ensure long-term integrity.
