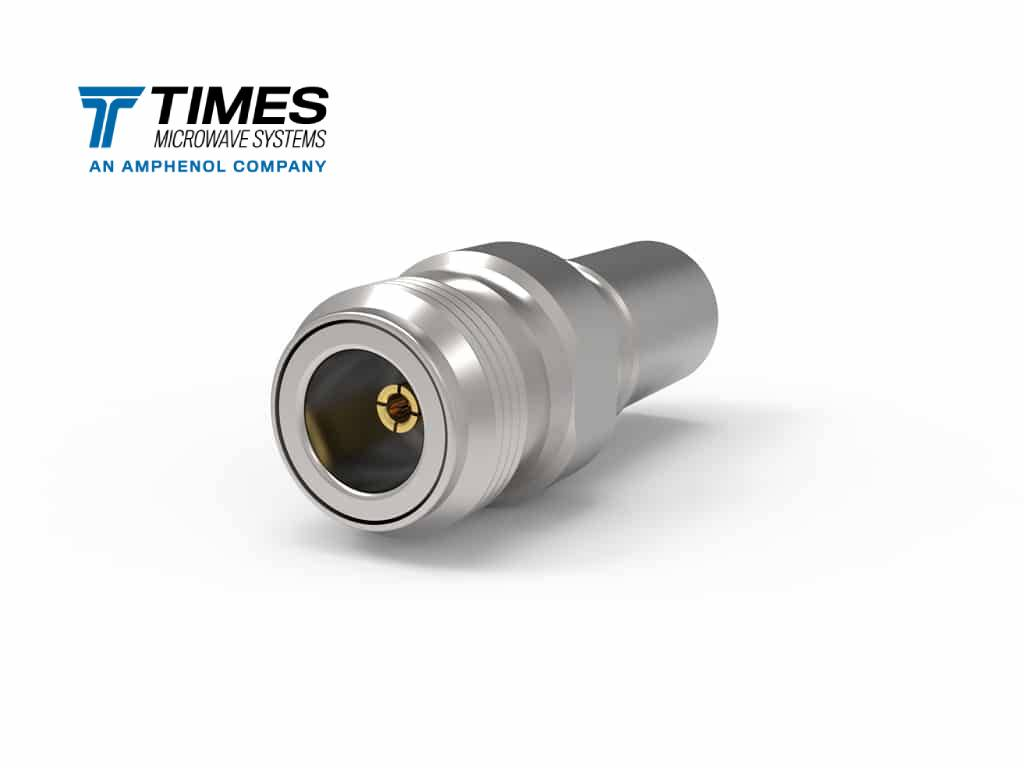

TC-400-NF-X N Female Genuine Connector

TC-400-NF-X N Female Crimp/Solder Connector for LMR-400 coaxial cable

TC-400-NF-X Connector is a heavy-duty N-Type Female (jack) connector specifically designed for the reliable termination of LMR-400 and similar 400-series flexible low-loss coaxial cable. As part of the traditional TC Series, this connector features a solder pin connection, which is often preferred for applications using stranded center conductors or where maximum mechanical and electrical integrity is required. It provides a durable, weatherproof, and high-performance female connection point for systems operating up to 6 GHz.

Key Features & Advantages

• LMR-400 Optimized: Precision-engineered for the larger diameter and superior low-loss characteristics of LMR-400 coaxial cable, ensuring optimal signal integrity and power handling.
• Solder Pin Connection: The traditional solder inner contact is ideal for installations where maximum durability and a low-resistance electrical connection are critical, especially with stranded center conductors.
• High-Frequency N-Type: The robust, medium-sized threaded coupling mechanism is renowned for its durability and excellent electrical characteristics, supporting frequencies up to 6 GHz.
• Weatherproof Design: The N-Type interface provides a reliable, threaded, weatherproof coupling when mated, making it suitable for both indoor and outdoor rated systems.
• Rugged Materials: Constructed from brass with nickel body finish and a gold-plated center pin for exceptional corrosion resistance and a long lifespan.

Detailed Technical Specifications

Typical Applications

The robust construction and LMR-400 compatibility make the TC-400-NF-X essential for:

• Wireless Infrastructure: Used in cellular base stations, antennas, and repeater systems.
• High-Power Systems: Where the low loss and power handling of LMR-400 coaxial cable are required.
• Coaxial Jumper Assemblies: Creating durable, high-performance N-Female cables for device interconnection.
• Test & Measurement: Used in lab environments for robust, high-frequency test leads.

Installation & Recommended Tooling

The TC-400-NF-X requires a specific set of tools for proper solder and crimp installation:

• Cable Prep Tool: A dedicated LMR-400 strip tool (e.g., CST-400 or equivalent) is essential for accurate conductor and dielectric preparation.
• Crimping Tool: Requires the appropriate hex die size (typically .429″ HEX or Times Microwave 3190-666/CT-400 tool) for the ferrule.
• Soldering Equipment: Requires a fine-tip soldering iron and high-quality solder for reliably securing the center pin.
