Reliable Connectivity for Broadcast and Wireless Applications

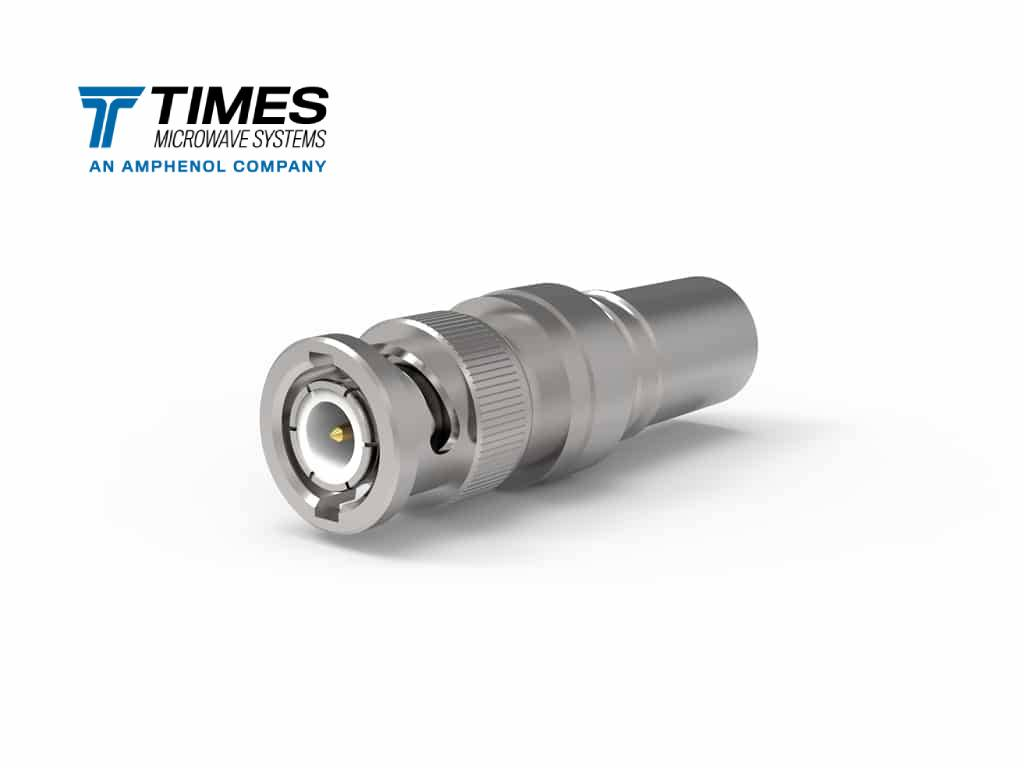

TC-400-BM-X provides a premium, classic termination method for LMR-400 coaxial cable. Utilizing a solder center pin combined with an outer crimp shield, this BNC Male connector is engineered for superior pull strength, signal integrity, and reliable performance up to 4 GHz better than RG-213 Performance.
- Secure Bayonet Lock: Features the classic BNC bayonet coupling mechanism for fast, positive locking, ensuring a secure connection that is resistant to vibration.
- Solder Center Pin: The inner contact requires soldering, which provides a permanent, low-resistance electrical connection, ideal for demanding applications or stranded center conductors.
- High Frequency Performance: Engineered for excellent VSWR performance (typically <1.35:1) with an impedance of 50 Ohms for use in applications up to 4 GHz better than RG-213 Performance.
- Robust Construction: Features a White Bronze (Albaloy) body finish and Gold-plated center pin for exceptional durability, corrosion resistance, and low signal loss.
- Time-Tested TC Style: This connector is a reliable, industry-proven design, offering maximum mechanical robustness where solderless connections are not preferred.
Technical Specifications (Performance & Build)
| Attribute | Detail |
| Part Number | TC-400-BM-X |
| Manufacturer | Amphenol Times Microwave Systems |
| Interface | BNC |
| Gender | Male (Plug) |
| Orientation | Straight |
| Cable Compatibility | LMR-400, FBT-400, TCOM-400 |
| Impedance | 50 Ohms |
| Max Frequency | 4 GHz |
| VSWR (Max) | <1.35:1 at 4 GHz |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| Coupling Mechanism | Bayonet Lock |
| Body Finish | White Bronze (Albaloy) |
| Pin Finish | Gold Plated |
| Working Voltage | 2500 V |
| Operating Temperature | -55 C to 125 C |
Installation Method: Solder Pin Advantage
The TC-400-BM-X uses a two-step termination process that prioritizes connection quality over speed.
- Solder Pin: The center conductor is soldered directly to the provided pin, ensuring a permanent electrical and mechanical bond with near-zero insertion loss.
- Crimp Shield: The outer ferrule is crimped over the cable jacket and braid, providing a robust, 360-degree shield termination and superior cable retention force (> 500 N pull force).
Applications & Use Cases
This high-quality BNC Male connector is suitable for 50 Ohm coaxial cable systems where a rugged, quick-disconnect interface is required.
- Test & Measurement Equipment: Oscilloscopes, Signal Generators, and Spectrum Analyzers.
- Radio Communications: Two-way radio, Amateur Radio (Ham), and fixed wireless.
- Security & Surveillance: Older generation CCTV and specialized camera systems.
- General Purpose RF Interconnects
- Military and Aviation RF Systems
