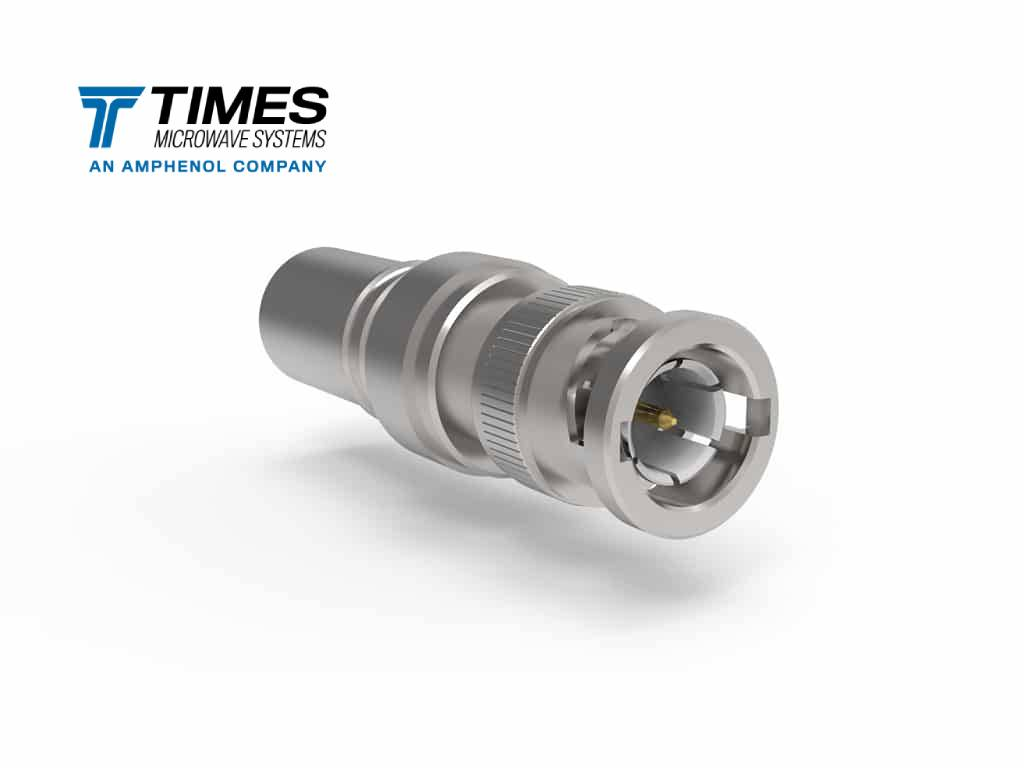

TC-400-BM-75-X BNC Male Straight 75 Ohm TC Connector for LMR-400-75 Coaxial Cable
TC-400-BM-75-X Connector is a high-precision, 75 Ohm BNC Male (plug) connector specifically engineered for the reliable termination of the large, low-loss LMR-400-75 coaxial cable. Crucial for professional broadcast and video systems, this connector is designed for perfect 75 Ohm impedance matching up to 2 GHz, ensuring the highest integrity for digital video signals (SDI, HD-SDI). Part of the trusted TC (Times Crimp) series, it features a traditional solder-on center pin for the most robust electrical connection, making it ideal for stranded center conductors and permanent installations.
Features
- True 75 Ohm Impedance: Crucial for video and broadcast applications, maintaining a VSWR < 1.1:1 up to 2 GHz for minimal signal reflection and pristine image quality.
- LMR-400-75 Optimized: Engineered specifically for the larger LMR-400-75 coaxial cable, maximizing the benefit of its superior low-loss performance over long cable runs.
- BNC Bayonet Coupling: Features the classic quick-connect/disconnect bayonet mechanism, providing a reliable, positive lock with just a quarter-turn.
- Solder Center Pin: Provides the most durable electrical connection, especially suitable for the stranded conductors often found in LMR-400-75, ensuring maximum pull strength and reliability.
- Superior Corrosion Resistance: Finished with Albaloy/Tri-Plate plating (White Bronze), which provides market-leading performance against corrosion and salt fog, enhancing reliability in challenging environments.
- No Braid Trim Design: Simplifies cable prep and ensures consistent, superior performance by eliminating the braid trim step.
Specifications
| Attribute | Detail |
| Connector Style | BNC |
| Gender | Male (Plug) |
| Interface | Straight, Bayonet Coupling |
| Impedance | 75 Ohms |
| Max Frequency (VSWR $\le 1.1:1$) | 2 GHz |
| Compatible Cable Group | LMR-400-75 (and variants) |
| Inner Contact Attach | Solder-on |
| Outer Contact Attach | Crimp |
| Body Finish | Albaloy/White Bronze |
| Center Contact Plating | Gold |
| IP Rating | IP67 (when used with WSB-400 sealing boot) |
| Voltage Rating | 500 V |
Applications
- Broadcast Video: Creating high-integrity jumpers and feeder cables for SDI/HD-SDI video signals in studios and field production.
- CATV & MATV Systems: Head-end and backbone connectivity requiring high-fidelity 75 Ohm signaling.
- Specialized Test Leads: Precision 75 Ohm test and measurement applications.
- Long-Distance CCTV: Maintaining video quality over extended security and surveillance camera runs.
