Superior PIM Performance and Compact Footprint

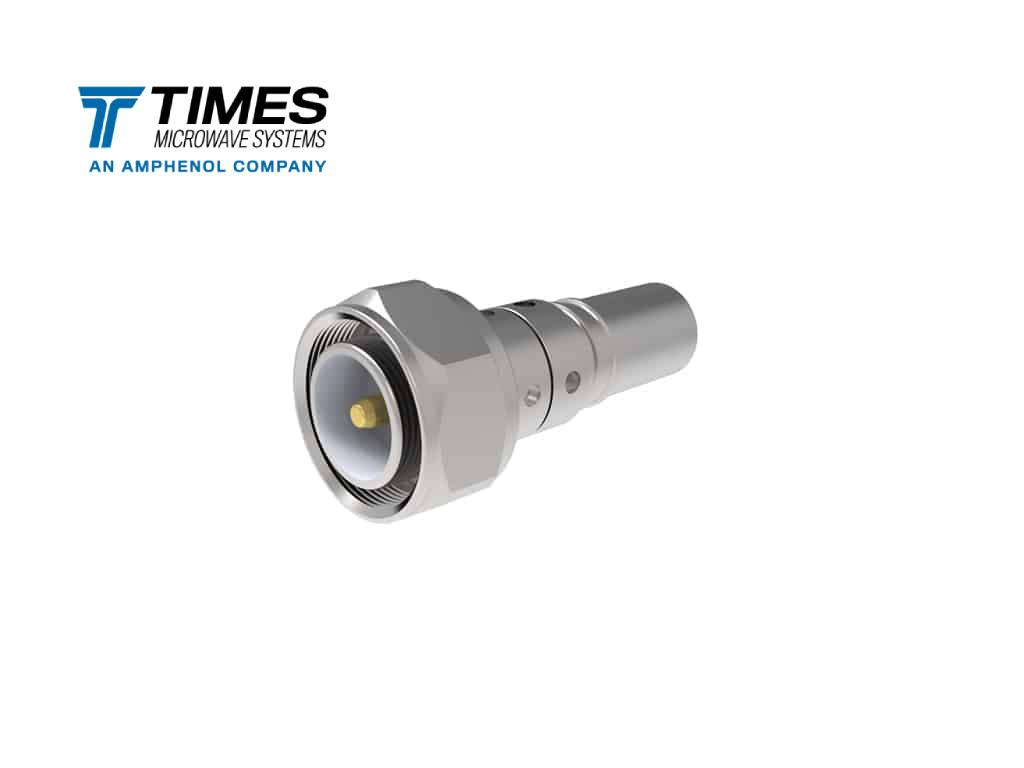

TC-400-4310M-X combines the proven reliability of the LMR-400 coaxial cable series with the advanced, low-PIM performance of the 4.3/10 mini DIN Male interface. This connector is the ideal choice for modern wireless infrastructure where Passive Intermodulation (PIM) stability is critical.
- Compact 4.3/10 Interface: Offers the same robust mechanical and electrical performance as the larger 7/16 DIN but in a smaller, lighter footprint, allowing for increased port density on modern remote radio heads (RRH) and base stations.
- Solder Center Pin (TC Style): Features a solder-pin inner contact for a permanent, high-integrity electrical bond, making it an excellent choice for stranded center conductors and highly critical installations in LMR-400 coaxial cable.
- Extremely Low PIM: The 4.3/10 design inherently minimizes PIM, which is essential for maintaining signal quality in LTE and 5G networks.
- Superior Environmental Resistance: Constructed with a Silver-plated inner contact and White Bronze (Alballoy) body finish for maximum corrosion resistance and excellent conductivity.
- High Frequency Support: Stable 50 Ohm impedance engineered for reliable performance up to 6 GHz, supporting current and future wireless bands.
Technical Specifications (PIM & Electrical Integrity)
| Attribute | Detail |
| Part Number | TC-400-4310M-X (Stock Code: 3190-6272) |
| Manufacturer | Amphenol Times Microwave Systems |
| Interface | 4.3/10 Mini DIN |
| Gender | Male (Plug) |
| Orientation | Straight |
| Cable Compatibility | LMR-400, FBT-400, TCOM-400 |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| VSWR (Max) | <1.30:1 at 6 GHz |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Crimp |
| PIM Performance | Excellent (Inherently Low PIM Design) |
| Body Finish | White Bronze (Alballoy) |
| Pin Finish | Silver Plated |
| Operating Temperature | -40 C to 85 C |
The 4.3/10 Advantage in Telecom
The 4.3/10 connector standard is rapidly replacing older 7/16 DIN and N-Type interfaces in modern wireless deployments due to its superior features:
| Feature | 4.3/10 Advantage | Benefit to Your Network |
| Size & Weight | Significantly smaller and lighter than 7/16 DIN. | Increases Port Density on sensitive remote radio heads and small cells. |
| PIM Stability | Design minimizes PIM generation through decoupled electrical and mechanical plane. | Improved Network Quality and higher data throughput, critical for 5G. |
| Installation Torque | Torque requirement is lower and less critical to performance. | Easier, more repeatable installation in the field. |
Installation Method: Maximum Reliability
The TC-400-4310M-X uses the robust TC-style termination method for uncompromised signal transfer:
- Preparation: Use the compatible CST-400 stripping tool to expose the center conductor and braid.
- Solder Pin: The center pin is soldered directly onto the center conductor, ensuring a permanent, low-loss electrical connection.
- Crimp Shield: The outer ferrule is crimped securely over the cable jacket and braid for environmental sealing and superior pull strength.
Applications & Use Cases
This connector is the industry-standard for high-performance LMR-400 coaxial cable connections in next-generation wireless systems.
- LTE and 5G Base Stations
- Small Cell and Distributed Antenna Systems (DAS)
- Remote Radio Heads (RRH) Jumper Cables
- Test and Measurement for Low-PIM Applications
- In-Building Wireless and Public Safety Networks
