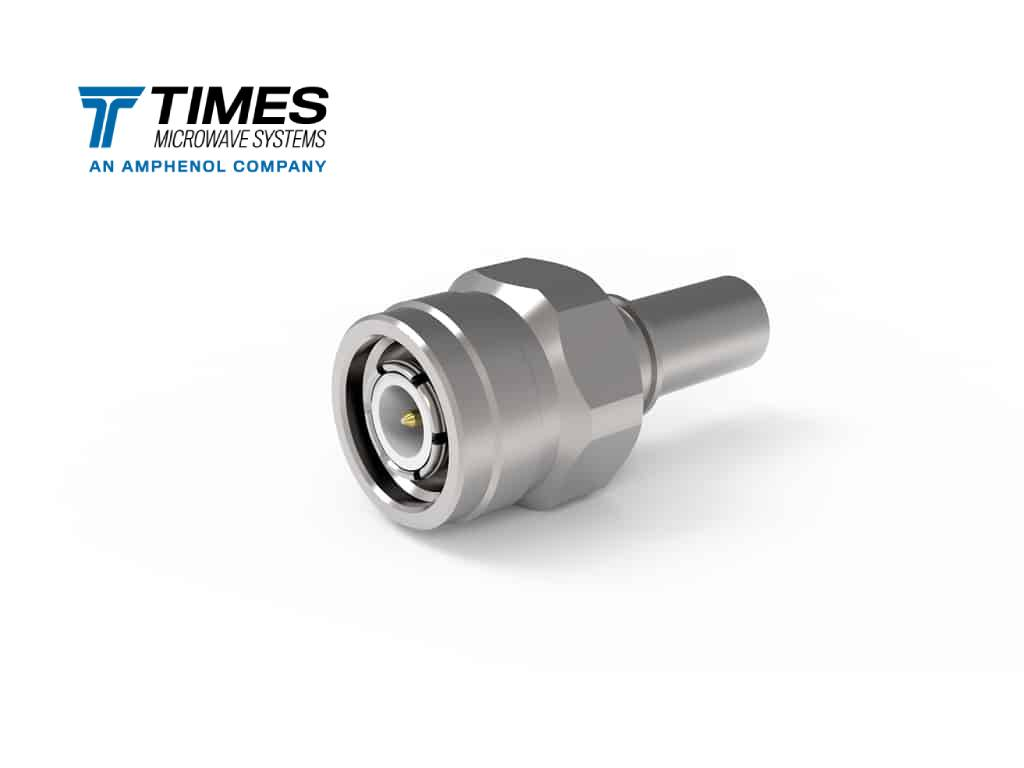

Times Microwave Systems TC-195-TM-X TNC Plug, Straight, Solder Pin Connector
TC-195-TM-X is a high-performance, premium TNC male (plug) connector designed specifically for LMR-195 series cables. Engineered by Times Microwave Systems, this connector features a non-solder, EZ-style design, ensuring a reliable, high-frequency connection with minimal installation time. As a trusted partner, Soyuztec Trading LLC provides this mission-critical component for applications requiring low signal loss and superior mechanical durability in telecommunications and industrial RF systems.
Features
-
EZ Installation: Features a pressure-fit center contact (non-solder), eliminating the need for soldering and reducing the risk of heat damage to the cable dielectric.
-
Tri-Metal Plating: The “X” series designation indicates a premium Albaloy (Tri-Metal) finish, providing excellent corrosion resistance and superior intermodulation (PIM) performance compared to standard nickel plating.
-
Robust Connection: The TNC threaded coupling mechanism ensures a secure, vibration-resistant connection, ideal for mobile or high-movement environments.
-
Optimized for LMR-195: Specifically matched to the dimensions of LMR-195 cable to ensure a seamless fit and maintain the 50 Ohm impedance profile.
Specifications
| Property | Specification |
| Connector Type | TNC Male (Plug) |
| Connection Method | Crimp Outer / EZ (Non-Solder) Inner |
| Compatibility | LMR-195 / RG-58 / 195-Series Cables |
| Impedance | 50 Ohms |
| Body Finish | Albaloy (Tri-Metal) |
| Contact Plating | Gold |
| Outer Contact Attach | Crimp |
| Inner Contact Attach | Spring Finger (Press-fit) |
Applications
The TC-195-TM-X is the preferred choice for Soyuztec Trading LLC clients operating in
-
Wireless Communication Systems: Base station and antenna cabling.
-
WLAN/Wi-Fi Networks: High-frequency data transmission.
-
GPS & Navigation: Secure, low-loss signal paths for maritime and aviation.
-
Test & Measurement: Durable connections for lab and field equipment.
Why Source from Soyuztec Trading LLC?
-
Authenticity Guaranteed: We supply only genuine Times Microwave Systems components.
-
Expert Support: Our technical team can assist in selecting the correct crimp tools and compatible accessories for your project.
-
Regional Availability: Stocked locally for rapid delivery to meet your project deadlines.
