Times Microwave Systems TC-195-TM-X TNC Plug, Straight, Solder Pin Connector

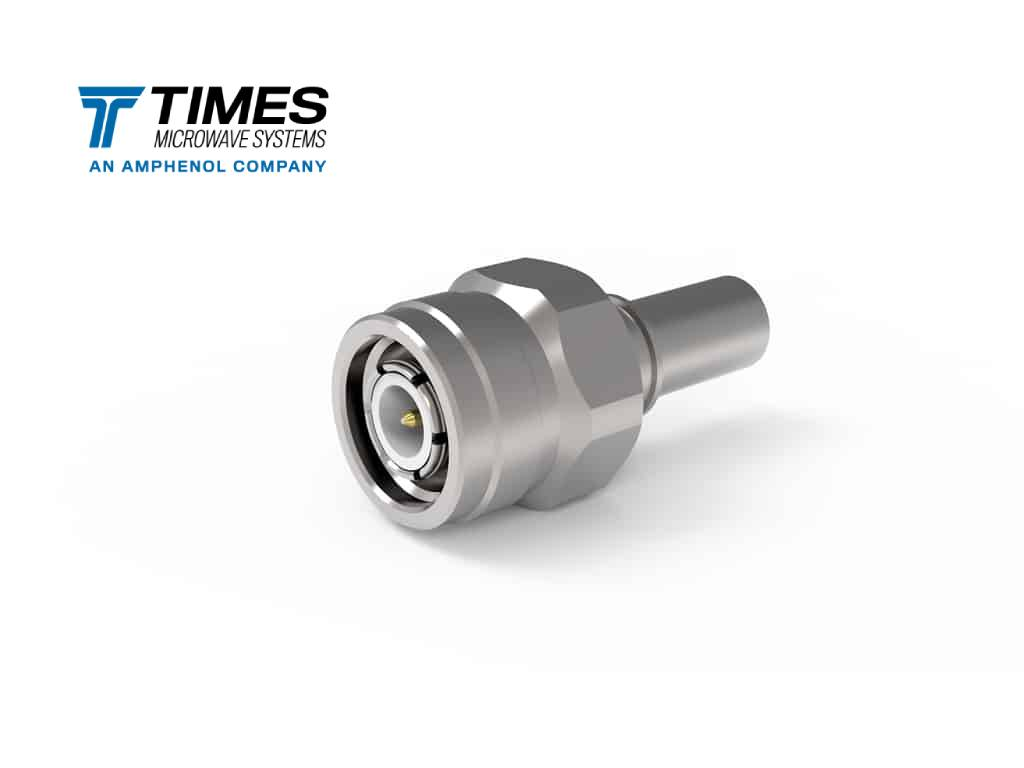

TC-195-TM-X Connector is a high-performance TNC Male (plug) connector specifically engineered for rapid, reliable termination of LMR-195 and similar flexible low-loss coaxial cable. This connector is an excellent choice for applications requiring a threaded, medium-sized connector known for superior electrical performance up to 6 GHz. It simplifies installation while providing the high-quality connection demanded by professional RF systems.
Key Features & Advantages
- TNC Threaded Interface: Features the robust threaded coupling mechanism, providing a secure, vibration-resistant connection superior to the BNC bayonet in many environments.
- Solderless Installation: Utilizes a unique internal contact method (often a spring-finger design, though specific details vary by series) that eliminates the need for soldering the center pin. This drastically reduces installation time and field errors.
- Optimal RF Performance: Delivers superior electrical characteristics, including low insertion loss and an optimal VSWR (Voltage Standing Wave Ratio) up to 6 GHz.
- Crimp Outer Contact: Features a standard crimp method for the ferrule, ensuring a strong, secure mechanical and electrical grip on the cable braid.
- Durable Construction: Built with high-quality brass and finished with nickel plating for excellent wear and corrosion resistance, suitable for professional indoor and light outdoor use.
Specifications
| Attribute | Detail |
| Connector Style | TNC |
| Gender | Male (Plug) |
| Interface | Straight, Threaded Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Solderless (Rapid Assembly) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Typical Applications
- Wireless Networking: Used in commercial Wi-Fi systems, base stations, and repeater connections.
- Antenna Systems: Connecting LMR-195 cable runs to antennas or equipment where a threaded connector is preferred over BNC.
- Telemetry & SCADA: Providing robust connections in industrial monitoring and data transmission systems.
- Test & Measurement: Creating reliable, durable jumper cables for laboratory and field testing.
Installation & Recommended Tooling
- Crimping Tool: The required CT-240-200-100 Crimp Tool is necessary for securing the ferrule.
- Cable Prep Tool: A dedicated CST-195/200 is highly recommended for achieving the precise strip dimensions needed for the solderless center contact.
