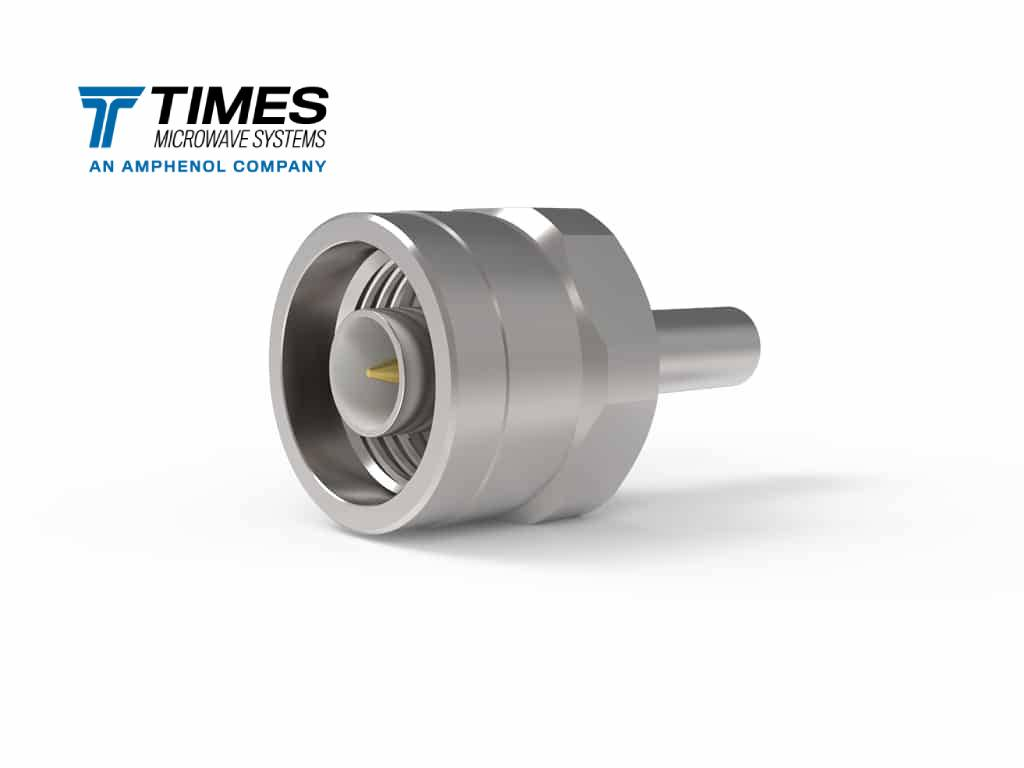

Times Microwave TC-195-NMH-X N-Male Solder Pin Connector
TC-195-NMH-X Connector is a premium N-Male (plug) connector designed for high-integrity termination of LMR-195 and similar flexible low-loss coaxial cable. This connector is specifically intended for installers who prefer or require the traditional hand-solder method for the center pin connection, ensuring maximum mechanical and electrical robustness. The N-Type interface provides reliable, high-performance connectivity, making it the superior choice for demanding applications up to 11 GHz.
Features
-
Precision Engineering: Specifically optimized for LMR-195, LMR-195-DB, and LMR-195-FR cables.
-
High-Frequency Performance: Operates reliably from DC up to 8 GHz.
-
Superior Conductivity: Features a gold-plated center pin and Alballoy/Tri-Metal plated body for maximum signal integrity and corrosion resistance.
-
Durable Attachment: Utilizes a Crimp-on outer attachment and Solder inner contact for a permanent, vibration-resistant connection.
-
Weatherproof Design: Medium-sized threaded coupling ensures stability in outdoor and harsh industrial environments.
Specifications
| Attribute | Detail |
| Connector Style | N-Type |
| Gender | Male (Plug) |
| Interface | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 11 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Hand Solder (Pin supplied) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Applications
The TC-195-NMH-X is the preferred choice for professional RF installers in
-
Wireless Infrastructure: Base station antennas and jumpers.
-
Industrial IoT: Connecting sensors and gateways in remote locations.
-
Public Safety: Critical radio networks for police, fire, and emergency services.
-
Telecommunications: GPS, WLAN, and cellular backhaul systems.
Why Source from Soyuztec Trading LLC?
As a specialized partner for Times Microwave Systems in Dubai, Soyuztec provides
-
Guaranteed Authenticity: Avoid the risks of counterfeit connectors that degrade signal quality.
-
In-Stock Availability: Ready local stock in our Dubai warehouse for immediate dispatch across the UAE and MENA.
-
Technical Support: Expert guidance on tool selection (CST-195/200 prep tools) and installation techniques.
-
Complete Solutions: We supply the full range of LMR cables and compatible connectors to build your entire RF chain.
