TC-195-NMH-RA-D N Male Right Angle Connector

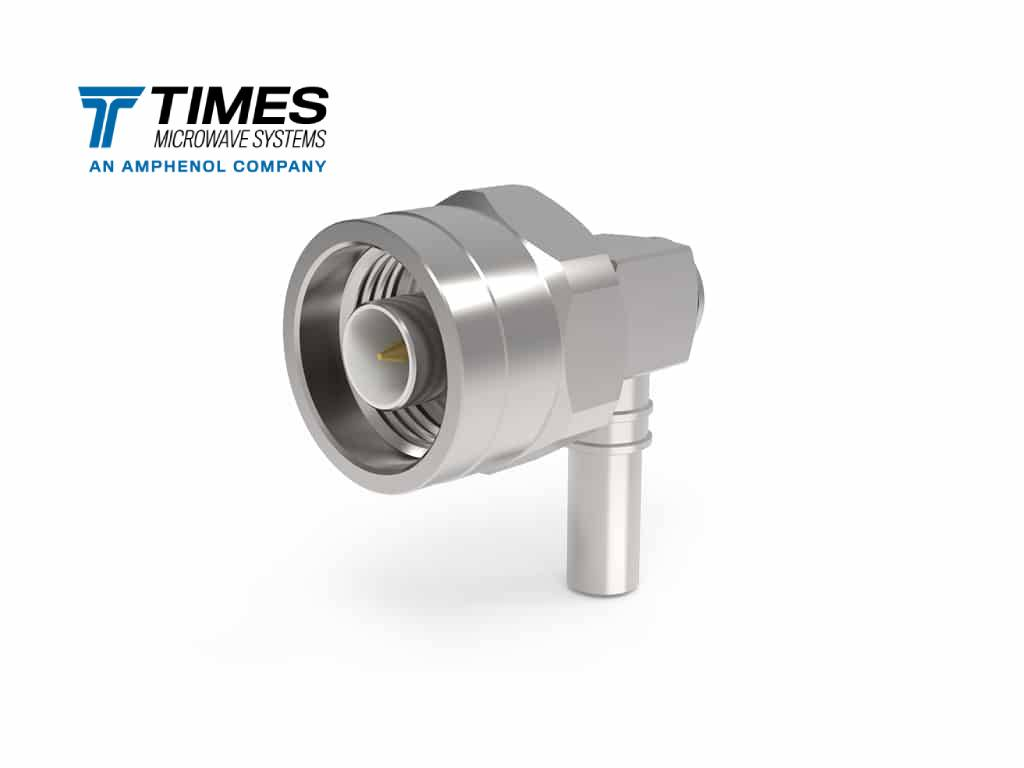

Times Microwave TC-195-NMH-RA-D N Type, Male (Plug), Right Angle Connector

TC-195-NMH-RA-D Connector is a high-performance, Right-Angle (90°) N-Male (plug) connector meticulously designed for terminating LMR-195 and similar flexible low-loss coaxial cable. This specialized connector is essential for installations in tight spaces or crowded equipment racks where a straight connector is impractical. It combines the ruggedness of the N-Type interface with a robust, traditional hand-solder center pin connection for maximum electrical and mechanical integrity up to 11 GHz.

Features

• Right-Angle (RA) Design: The 90-degree body is critical for minimizing cable bending stress and reducing the footprint in space-constrained installations, allowing the cable to exit the equipment immediately.
• N-Type High Performance: Features the durable, medium-sized N-connector, known for its superior mechanical stability and excellent electrical characteristics, supporting frequencies up to 11 GHz.
• Hand Solder Center Pin: The ‘H’ suffix indicates this connector requires the installer to solder the center pin to the cable’s inner conductor, ensuring a low-resistance, high-reliability connection preferred for critical applications.
• Optimal RF Integrity: Engineered to maintain low insertion loss and an optimal VSWR (Voltage Standing Wave Ratio), even with the right-angle configuration.
• Durable Construction: Built with high-quality brass and finished with nickel plating for maximum corrosion and wear resistance, ideal for both indoor and severe outdoor settings.

Specifications

Applications

• Rack-Mounted Equipment: Used for neat cable management and strain relief when connecting to panels inside server racks and enclosures.
• Fixed Wireless & Telemetry: Ideal for compact base stations and remote monitoring units where space efficiency is vital.
• Test & Measurement: Creating custom jumper cables that require a low-profile connection to crowded test fixtures.
• OEM Integration: Preferred by manufacturers when designing products with restricted internal space.
