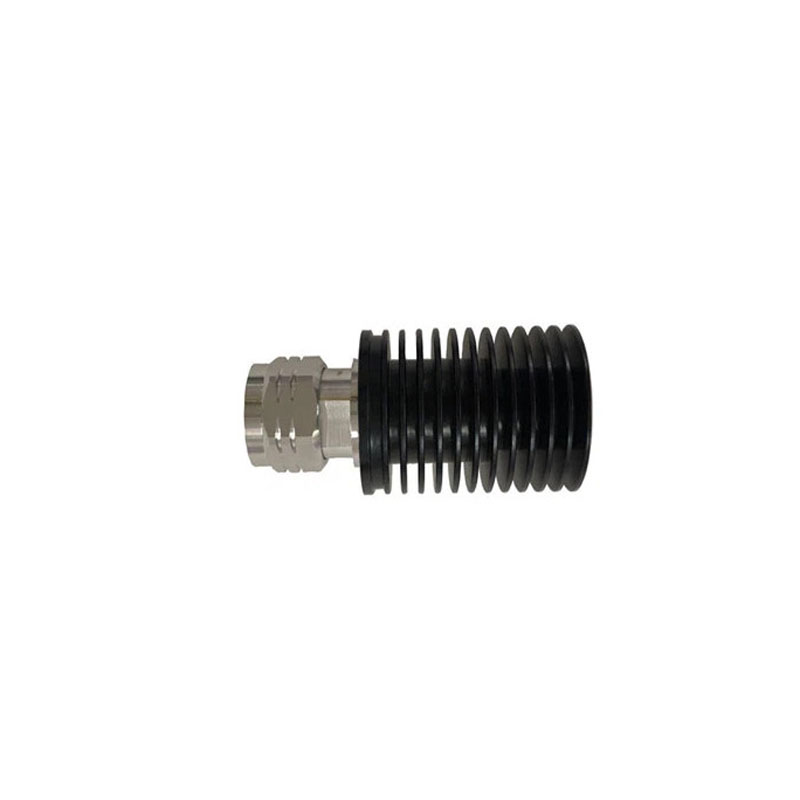

ST-25W-NM 25W Low Power Dummy Load

Original price was: د.إ350.00.Current price is: د.إ329.00.

ST-25W-NM 25W Low Power Dummy Load is a high-precision dry-type RF termination designed for testing, tuning, and protecting radio frequency equipment

SKU: ST-25W-NM Category: Tag: Brand:

ST-25W-NM 25W Low Power RF Dummy Load

ST-25W-NM 25W Low Power Dummy Load is a high-precision, dry-type RF termination designed for testing, tuning, and protecting radio frequency equipment. Engineered for reliability, this dummy load provides a stable 50-ohm impedance, ensuring minimal signal reflection during transmitter maintenance and laboratory measurements.

Features

  • Broadband Performance: Operates efficiently across a wide frequency spectrum, making it ideal for VHF, UHF, and cellular bands.

  • Convection Cooled: Designed with a high-grade aluminum heat sink for efficient heat dissipation without the need for noisy fans or liquid coolants.

  • Precision Accuracy: Low VSWR (Voltage Standing Wave Ratio) ensures that your equipment sees a near-perfect load, protecting sensitive power amplifiers.

  • Rugged Construction: Built to withstand field use with a durable finish and high-quality “N” type connectors.

Specifications

Feature Specification
Frequency Range DC to 3000 MHz
Power Rating 25 Watts (Continuous)
Impedance 50 Ohms (Nominal)
VSWR 1.20:1
Connector Type N-Male
Cooling Natural Convection (Dry Type)
Operating Temp -30°C to +70°C
Finish Black Anodized Aluminum

Applications

  • Transmitter Testing: Safely absorb power while tuning or troubleshooting base stations and repeaters.

  • Lab Measurements: Provides a consistent reference load for R&D and quality control testing.

  • Isolation: Used in conjunction with couplers and hybrids to terminate unused ports in RF distribution systems.
