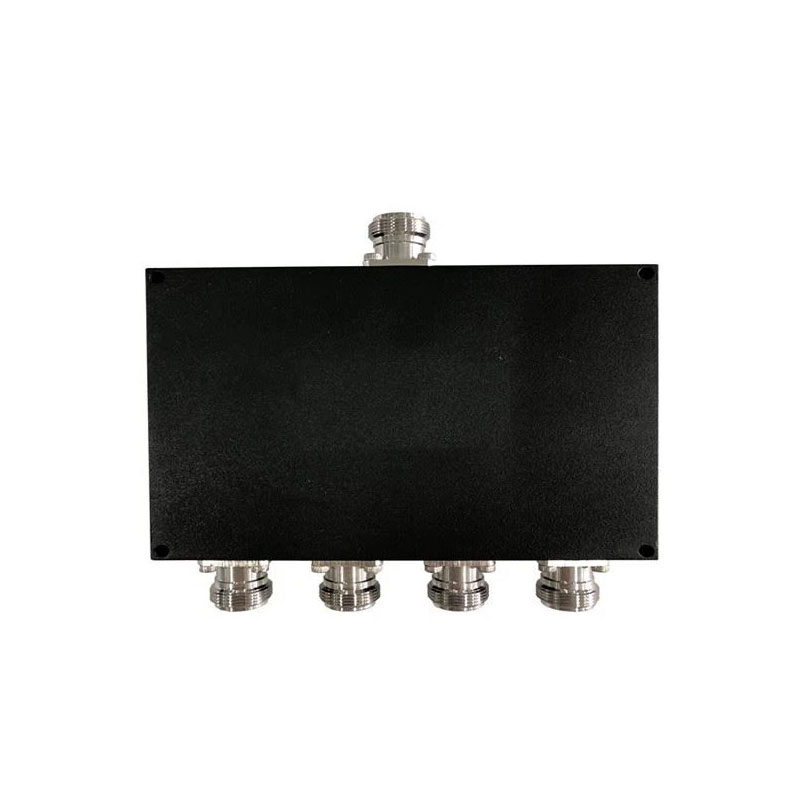

SP-0305-4 High-Performance 4 Way RF Power Divider
SP-0305 4 Way RF Power Splitter is a professional-grade, 4-way power splitter designed for high-reliability RF distribution. Engineered for minimal signal loss and maximum isolation, it is the ideal solution for telecommunications, laboratory testing, and complex antenna systems.
Features
-
Low Insertion Loss: High-efficiency circuitry ensures minimal signal degradation across the entire frequency range.
-
Superior Isolation: Excellent port-to-port isolation prevents crosstalk and feedback between connected devices.
-
Rugged Construction: Encased in a precision-machined aluminum housing with a corrosion-resistant finish for long-term durability.
-
Broadband Performance: Optimized for consistent impedance matching (50 ohm) across its specified bandwidth.
Specifications
| Parameter | Specification |
| Frequency Range | 300 MHz – 5000 MHz |
| Split Loss | 6.0 dB (Nominal) |
| Insertion Loss | 1.2 dB |
| Isolation | 20 dB |
| VSWR (Input/Output) | 1.25:1 / 1.15:1 |
| Power Rating | 30W (Forward), 2W (Reverse) |
| Connector Type | SMA-Female (Standard) |
| Impedance | 50 ohm |
| Operating Temp | -45°C to +85°C |
Applications
-
Distributed Antenna Systems (DAS): Splitting signals for multi-floor or multi-room cellular coverage.
-
Test & Measurement: Distributing a single source signal to four different analyzers or receivers simultaneously.
-
Wireless Infrastructure: Supporting MIMO (Multiple Input, Multiple Output) configurations and signal monitoring.
