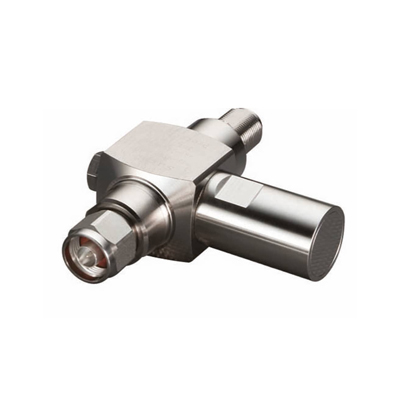

LP-STRH-NFF Surge Protector High-Performance Surge Protector (700-2700 MHz)
The Times Protect LP-STRH-NFF is an exceptional DC-blocked surge protector designed for superior lightning protection across the 700 MHz to 2700 MHz frequency band. Bulkhead Lightning Protector Ideal for LTE and Public Safety applications, it features N-Type Female connectors on both sides and an IP67 weatherized housing for extreme environments.
Features
Broadband Performance: Optimized for the 700–2700 MHz range.
DC Blocked Design: Provides superior surge protection by blocking DC current.
Multi-Strike Capability: Engineered to withstand multiple lightning strikes without degradation.
Environmental Durability: Fully weatherized housing (IP67 rated) for indoor and outdoor use.
Low PIM & Insertion Loss: Ensures minimal signal interference and maximum power throughput.
Specifications
| Attribute | Specification |
| Frequency Range | 700 – 2700 MHz |
| Connector Type | N Type Female / Female (F/F) |
| Impedance | 50 Ohm |
| VSWR / Return Loss | < 1.1:1 / < -26dB (840-2700MHz) |
| Insertion Loss | < 0.1 dB |
| Average Power | 500 Watts |
| Max Surge Current | 50kA (8×20µs waveform) |
| Protection Circuit | DC Blocked |
| Weatherization | IP67 / IEC 60068 |
Why Source from Soyuztec Trading LLC?
As the Exclusive Distributor of Times Microwave Systems in the MENA region, Soyuztec Trading LLC provides:
Authenticity Guaranteed: 100% genuine Times Microwave components.
Local Inventory: Ready stock available in Dubai for rapid GCC distribution.
Expert Support: Technical guidance for Oil & Gas, Maritime, and Telecom infrastructure.
