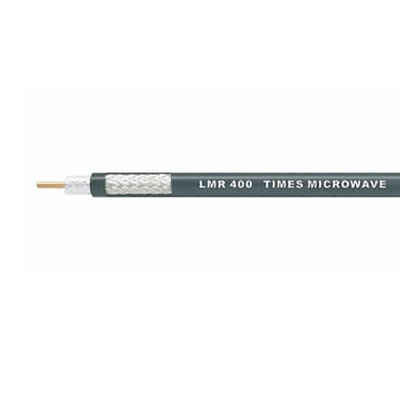

Times Microwave Systems LMR-400-LSZH Low Smoke Coaxial Cable
LMR-400-LSZH Low Smoke Coaxial Cable is the industry-standard for high-performance RF connectivity where safety and signal integrity are paramount. Engineered by Times Microwave Systems, this 50-ohm cable provides the flexibility of a braided cable with the low-loss performance of air-dielectric or corrugated hard-line cables. The LSZH (Low Smoke Zero Halogen) jacket is specifically designed for indoor use in enclosed spaces—such as data centers, marine vessels, and transit tunnels—where fire safety regulations require minimal smoke and zero toxic halogen emissions.
Features
-
Ultra-Low Attenuation: Significantly outperforms standard RG-8 and RG-213 cables, offering up to 40% less signal loss.
-
Enhanced Fire Safety: LSZH jacket meets stringent fire safety standards (IEC 61034-2, IEC 60754-1/2), emitting no toxic halogens when exposed to heat.
-
Superior Shielding: Double-shielded construction (Aluminum Tape + Tinned Copper Braid) ensures >90 dB RF shielding.
-
Weather Resistant: Despite its indoor safety rating, the jacket is UV-protected, making it suitable for outdoor antenna runs as well.
-
Drop-in Replacement: Compatible with all standard LMR-400 connectors and installation tools.
Specifications
| Property | Value |
| Impedance | 50 Ohms |
| Maximum Frequency | 6 GHz (Usable up to 8 GHz) |
| Velocity of Propagation | 85% |
| Center Conductor | Solid BCCAI (0.108 in / 2.74 mm) |
| Dielectric | Foam Polyethylene |
| Outer Diameter | 0.405 in (10.29 mm) |
| Minimum Bend Radius | 1.0 in (25.4 mm) |
| Operating Temperature | -40°C to +85°C |
Applications
-
Critical Infrastructure: Tunnels, airports, and high-rise buildings.
-
Wireless Systems: WLAN, WISP, WiMax, and SCADA.
-
Marine & Offshore: Shipboard communications requiring halogen-free materials.
-
Base Stations: GPS and cellular antenna feeder runs
Why Source from Soyuztec Trading LLC?
As the Exclusive Distributor for Times Microwave Systems in the UAE, Soyuztec ensures
-
Genuine Products: 100% authentic LMR series cables directly from the manufacturer.
-
Local Availability: Extensive stock maintained in our Dubai warehouse for immediate dispatch.
-
Technical Support: Expert guidance on connector selection and installation tools.
-
Competitive Pricing: Direct distributor rates for large-scale projects and retail needs.
