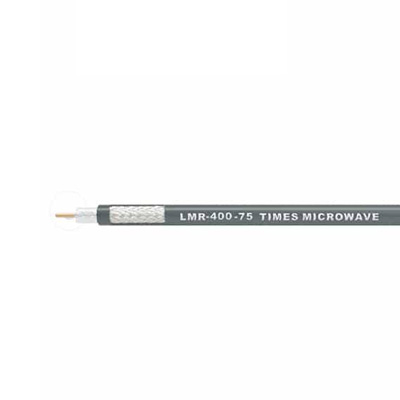

LMR-400-75 High-Performance 75 Ohm Flexible Low-Loss Coaxial Cable
LMR-400-75 is a 75 Ohm version of the world-renowned LMR-400 cable. It is specifically engineered for applications where signal integrity and low attenuation are critical but the system architecture requires a 75 Ohm impedance. It serves as a superior, high-performance replacement for RG-11 and other corrugated copper cables. Soyuztec Trading LLC is the exclusive distributor of Times Microwave Systems in the UAE and MENA region. We provide authentic, high-quality RF solutions for satellite, video, and wireless applications that demand the reliability of the industry-standard LMR series.
Features
-
Ultra-Low Loss: Designed to provide the lowest loss of any flexible 75 Ohm cable in its class.
-
Superior Shielding: Features a multi-ply bonded foil and tinned copper braid, achieving >90 dB RF shielding (50 dB better than typical single-shielded coax).
-
Weatherproof & Durable: The UV-resistant Polyethylene (PE) jacket is built for a 20-year service life in harsh outdoor environments.
-
High Flexibility: Enables tight bends (1-inch minimum bend radius) without the kinking or performance degradation common in “hard-line” cables.
-
Easy Installation: Compatible with EZ-400-FM-75-X (F-Type) and EZ-400-NMH-75-X (N-Type) solderless connectors for rapid field termination.
Specifications
| Property | Imperial Value | Metric Value |
| Impedance | 75 Ohms | 75 Ohms |
| Outer Diameter (Nominal) | 0.405 in | 10.29 mm |
| Max Operating Frequency | 2.5 GHz | 2.5 GHz |
| Velocity of Propagation (VoP) | 85% | 85% |
| Shielding Effectiveness | >90 dB | >90 dB |
| Capacitance | 15.9 pF/ft | 52.3 pF/m |
| Min. Bend Radius (Installation) | 1.0 in | 25.4 mm |
| Jacket Material | UV-Resistant Polyethylene (PE) | UV-Resistant Polyethylene (PE) |
| Operating Temp. Range | -40 F to +185 F | -40C to +85C |
| Peak Power | 10 kW | 10 kW |
Applications
-
Satellite Communications: Ideal for L-Band and VSAT feeder runs.
-
Video Systems: High-definition CCTV, CATV, and broadband distribution.
-
In-Building Wireless: 75 Ohm distributed antenna systems (DAS).
-
Maritime: Marine-grade communication networks requiring rugged, salt-fog resistant cabling.
Available Variants at Soyuztec
-
LMR-400-75: Standard outdoor/indoor UV-resistant PE jacket.
-
LMR-400-75-DB: Watertight version with an inert flooding compound for direct burial.
-
LMR-400-75-FR: Fire-retardant, non-halogen (LSZH) jacket for in-building riser applications (UL/NEC rated).
Why buy from Soyuztec?
As the authorized partner in Dubai, we guarantee 100% genuine Times Microwave products, avoiding the performance failures and safety risks of “LMR-equivalent” clones. We offer in-house custom cable assembly services and technical support for large-scale infrastructure projects.
