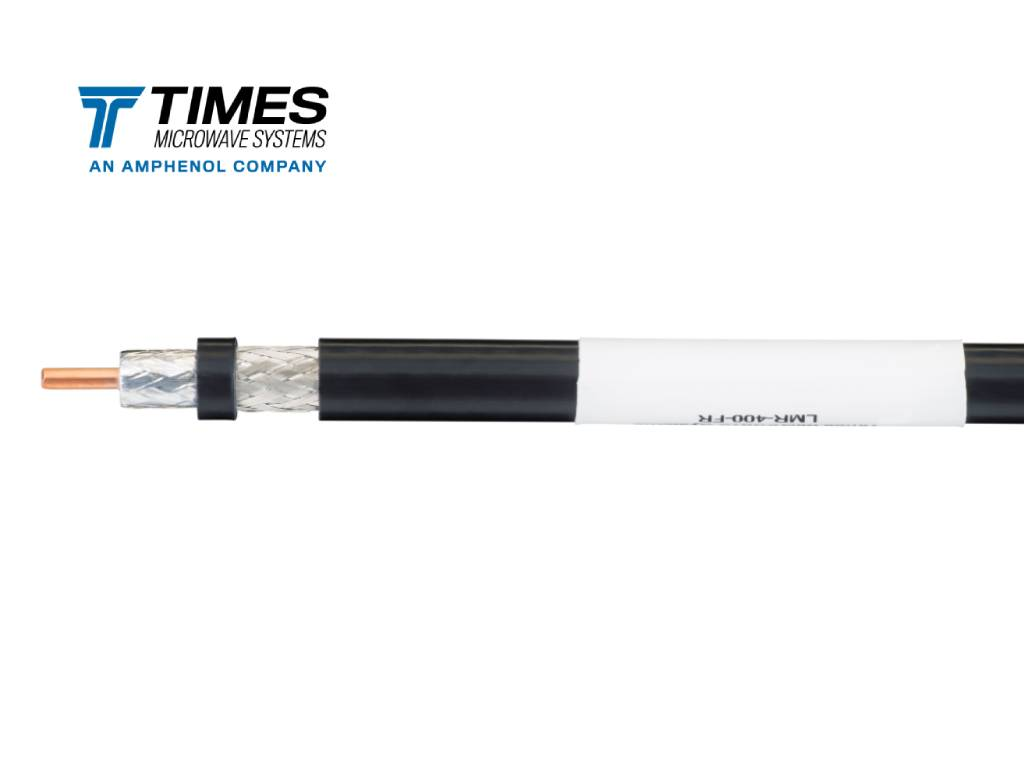

LMR-400 Ultimate High-Performance Coaxial Cable
LMR-400 coaxial cable is the industry-leading, high-performance, flexible, low-loss coaxial cable, perfectly engineered as a superior 50 ohm drop-in replacement for bulky and higher-loss cables like RG-8 and RG-213. It strikes the ideal balance between minimal signal loss, physical size, and flexibility, making it the top choice for modern wireless and radio frequency (RF) applications.
Experience up to 50% lower attenuation than traditional RG-8 cables. This is crucial for maintaining signal strength over long runs, especially at high frequencies VHF/UHF and GHz. Despite its performance, LMR-400 maintains a manageable 1 inch minimum bend radius, allowing for easier routing in tight spaces, cable trays, and antenna mast installations compared to semi-rigid cables.
| Specification | Value |
| Impedance | 50 Ohms |
| Outer Diameter | 0.405 inches 10.3 mm |
| Velocity of Propagation | 85% |
| Attenuation at 900 MHz | 3.9 dB 100 ft |
| Max Power (30 MHz) | 1.6 kW |
| Center Conductor | Solid Bare Copper Clad Aluminum |
| Jacket Material | UV-Resistant Polyethylene (PE) |
Ideal Applications
- Wireless Communication Systems: Cellular repeaters, antenna jumpers, and distributed antenna systems.
- WLAN/Wi-Fi: Feedlines for 2.4 GHz and 5 GHz directional and omnidirectional antennas.
- Amateur Radio (Ham): Low-loss feedlines for VHF/UHF base stations.
- GPS/GNSS: Protecting sensitive signals from satellites to receivers.
- Fixed Wireless Access: Point-to-Point and Point-to-Multipoint links.
