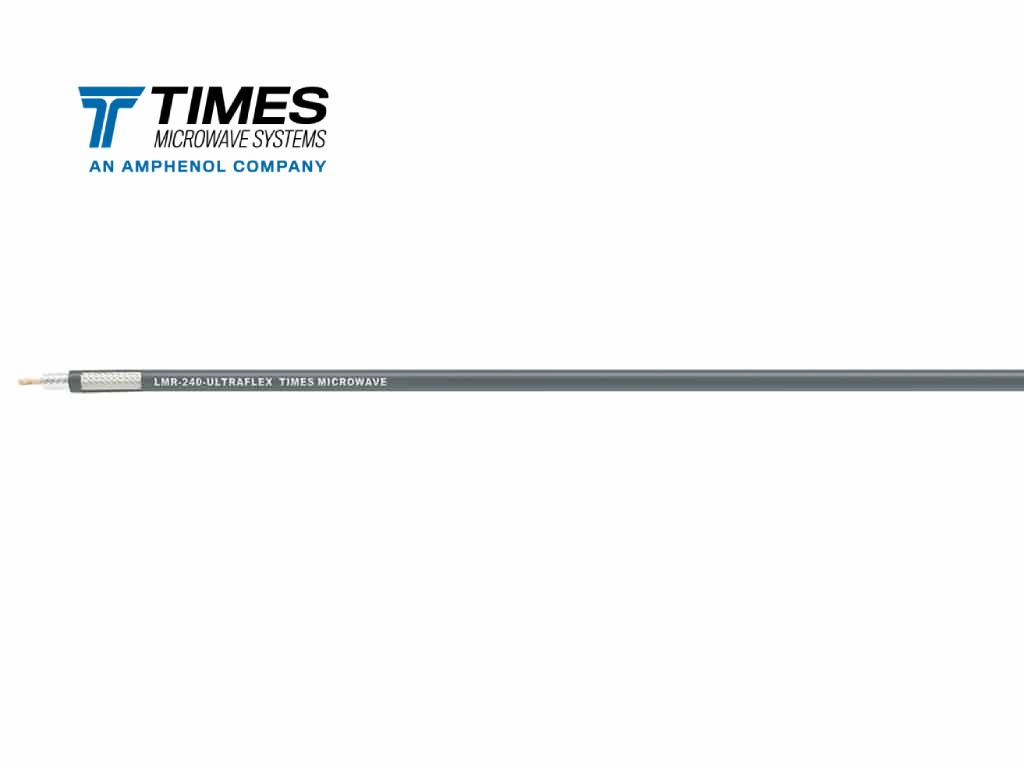

Times Microwave LMR-240-UF UltraFlex High-Flexibility Low-Loss Coaxial Cable
LMR-240-UF is the “UltraFlex” version of the industry-standard LMR-240. While it maintains the same 0.240-inch diameter, it replaces the solid center conductor with stranded bare copper and utilizes a specialized Black Thermoplastic Elastomer (TPE) jacket. This combination makes it ideal for jumpers in wireless systems, mobile antennas, and any deployment where the cable must navigate tight spaces or move frequently.
Features
-
Extreme Flexibility: Stranded conductor and TPE jacket allow for a tighter bend radius (19.1 mm for installation) and better “memory” after repeated flexing.
-
Low Loss: Outperforms standard RG-8X and similar braided cables with significantly lower attenuation.
-
Superior Shielding: Double shielding (Aluminum Tape + Tinned Copper Braid) provides >90 dB RF shielding.
-
Weatherproof: Designed for both indoor and outdoor use with a life expectancy of 10+ years in harsh environments.
Specifications
| Property | Value |
| Impedance | 50 Ohms |
| Outer Diameter | 0.240 inches 6.10 mm |
| Jacket Material | Thermoplastic Elastomer (TPE), UV Resistant |
| Center Conductor | Stranded Bare Copper |
| Max Frequency | 6 GHz |
| Min. Bend Radius (Installation) | 0.75 inches 19.1 mm |
| Min. Bend Radius (Repeated) | 2.5 inches 63.5 mm |
| Attenuation @ $900 \text{ MHz}$ | approx 9.1 dB 100 ft |
| Shielding Effectiveness | > 90 dB |
Applications
-
Wireless Communication: Jumper assemblies for Wi-Fi, Cellular, and GPS.
-
Mobile Platforms: Antennas on vehicles, robotics, or portable masts.
-
In-Building Systems: Easy routing through conduit and tight wall cavities.
-
Test Labs: Reliable performance for patch cables that are handled daily.
Compatible Accessories (Available at Soyuztec)
-
Connectors: TC-240-NMH (N Male), TC-240-SM (SMA Male), TC-240-TM (TNC Male).
-
Tools: CCT-02 Cutting Tool, CST-240 Prep Tool.
-
Services: Custom cable assembly and testing available in-house.
Contact Soyuztec Trading LLC
As the authorized MENA distributor, we maintain local stock in Dubai for immediate dispatch.
