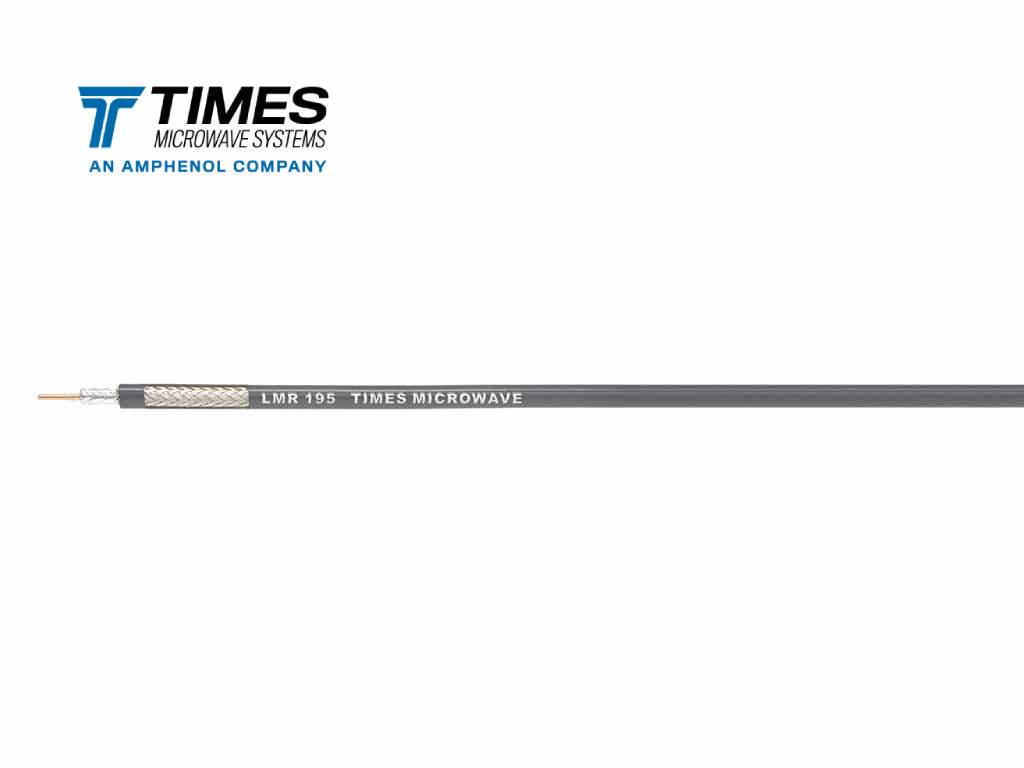

Fire-Retardant LMR-195-FR Coaxial Cable Ultimate Low Loss, Flexible RF Jumper Solution
LMR-195-FR (Fire Retardant) is the safety-certified version of the LMR-195, Low-smoke coaxial cable designed specifically for in-building, riser-rated (CMR) wireless and RF applications. It delivers the same ultra-low loss and high-frequency performance of the standard LMR-195 but with a critical safety upgrade: a Fire-Retardant Polyethylene (FRPE) jacket.
This non-halogenated, low-smoke jacket material is engineered to meet strict fire safety codes, making it the required cable choice for routing through vertical shafts (risers) and non-plenum areas in commercial buildings and industrial facilities. The LMR-195-FR ensures your in-building communication system is both high-performing and compliant with safety regulations.
| Feature | Detail |
| Safety Rating | UL/NEC, CMR/MPR, CSA FT4, Riser Rated |
| Jacket | Fire-Retardant Polyethylene (FRPE) |
| Smoke/Toxicity | Non-Halogenated, Low Smoke |
| Impedance | 50 Ohm |
| Loss | Low-Loss (Lower attenuation than RG-58) |
| Diameter | 0.195 inches 4.95 mm |
| Shielding | Double shielded >90 dB effectiveness |
| Frequency | Excellent performance up to 6 GHz |
Ideal Applications
- In-Building Wireless (DAS): Signal distribution in commercial, office, and campus environments.
- Vertical Riser Cable Runs: Routing through vertical pathways between floors in multi-story buildings (where CMR rating is required).
- Industrial & Commercial: Applications requiring certified fire safety compliance.
- Jumper Assemblies: Short, flexible pigtails for indoor network equipment and base stations.
