Miniature, Low-Loss, and Exceptionally Flexible RF Performance

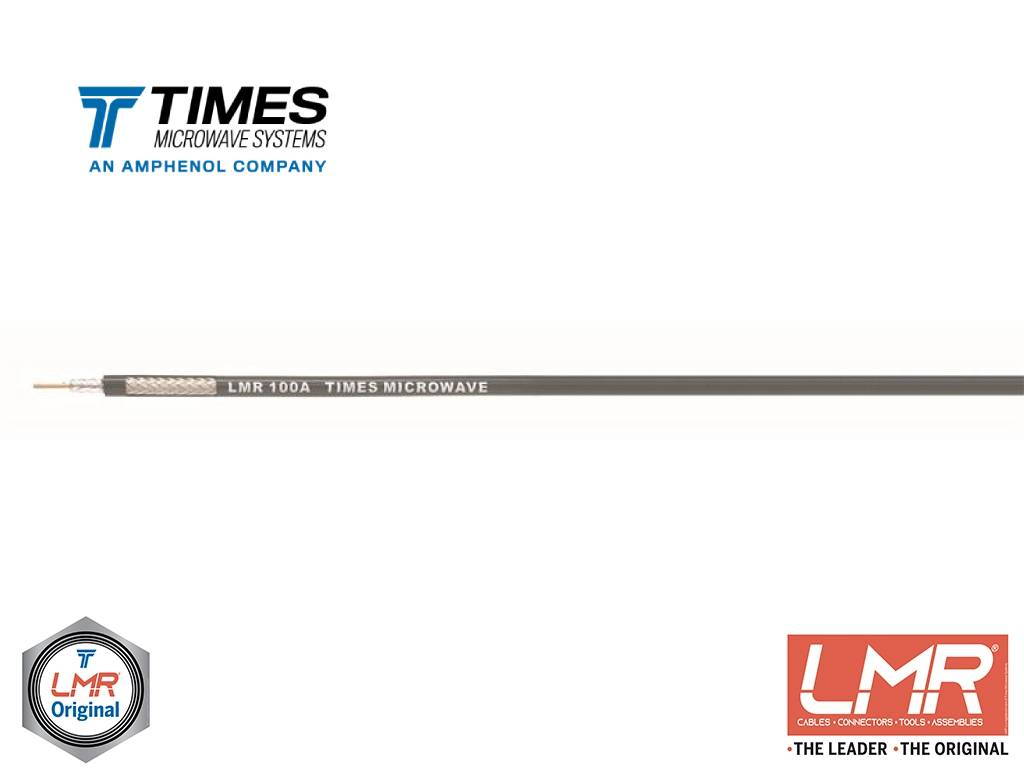

LMR-100A-UF coaxial cable, which is Double Shielded feeder cable, the UltraFlex variant of the standard LMR-100A series. Engineered with a stranded center conductor and TPE jacket, it easily handles tight-radius bends and repeated movement, making it the premier drop-in upgrade for less efficient Low Loss Coaxial Cable like RG-174 and RG-316.
Ultra Flexible 50 Ohm Coax Cable
-
Ultra-Flexible Design: Features a stranded center conductor and a durable TPE jacket for exceptional flexibility, tight bend radius (as low as 1/4 inch installation), and suitability for dynamic environments and tight spaces.
-
Low-Loss Performance: Provides significantly lower attenuation compared to traditional flexible cables of similar size (e.g., RG-174), preserving signal integrity across a wide frequency range.
-
Broadband RF Coverage: Supports a maximum operating frequency of up to 8 GHz (typical), ideal for modern wireless applications.
-
Double Shielding: A combination of bonded aluminum tape and a tinned copper braid provides high Shielding Effectiveness (typically > 90 dB), minimizing RF interference.
-
Indoor/Outdoor Rated: The robust Black TPE jacket is designed for use in both indoor and outdoor environments.
Specifications
| Specification | Value |
| Cable Type | Flexible Low Loss Coaxial Cable |
| Impedance | 50 Ohms |
| Nominal Outer Diameter | 0.110 in (2.79 mm) |
| Center Conductor | Stranded Copper (7 Strand) |
| Dielectric Material | Solid Polyethylene (PE) |
| Shielding | Bonded Aluminum Tape & Tinned Copper Braid |
| Shielding Effectiveness | >90 dB |
| Velocity of Propagation (VoP) | 66% |
| Max Operating Frequency | 8 GHz (typical) |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Operating Temperature | -40 C to +85 C |
| Min. Installation Bend Radius | 0.25 in (6.4 mm) |
Ideal Applications
- Jumper Assemblies: Short, high-performance jumpers in wireless communications systems (e.g., base stations, cellular networks).
- Mobile Antennas: vehicle antennas (GPS, LMR, WLAN) where cable routing is a challenge.
- Wireless Networking: WiFi (WLAN)
- GPS/GNSS: interconnects for Global Positioning System and Satellite Communication applications.
- Test & Measurement: Flexible for laboratory use and RF equipment testing.
