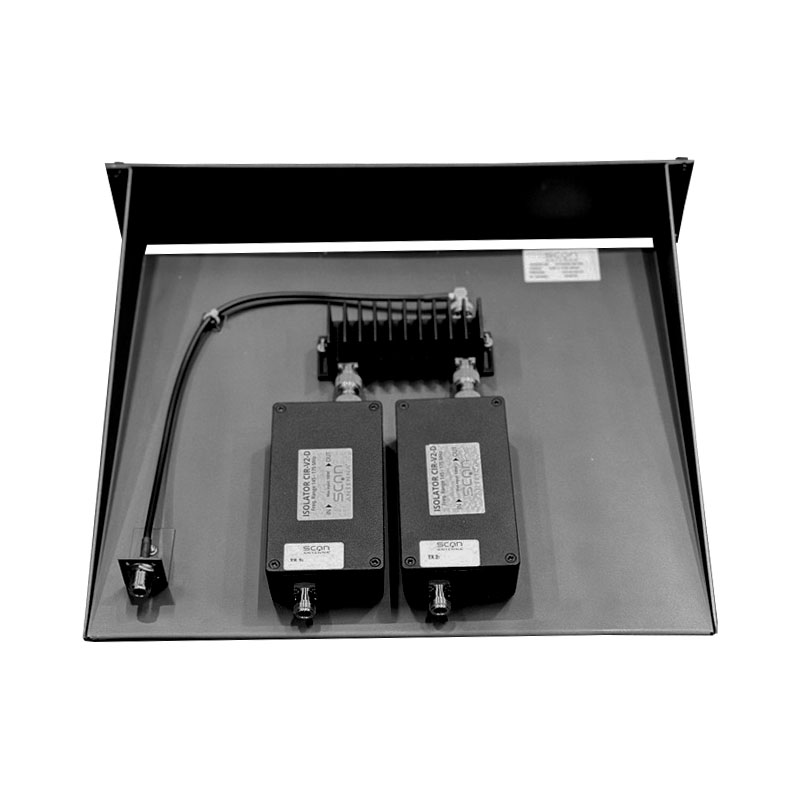

HC450 2 Port RF Combiner

HC450 2 Port RF Combiner is a high-performance 2-way hybrid combiner designed for seamless integration of RF signals across the UHF spectrum

SKU: HC450-2 Category: Tag: Brand:

HC450-2 High-Power Hybrid Combiner

HC450 2 Port RF Combiner is a high-performance 2-way hybrid combiner designed for seamless integration of RF signals across the UHF spectrum. Engineered for reliability in mission-critical broadcasting, public safety, and telecommunications infrastructure, this unit ensures minimal signal loss while providing superior isolation between inputs.

Features

  • Low Insertion Loss: Maximizes power transfer efficiency to the antenna system.

  • High Isolation: Prevents intermodulation and protects sensitive transmitter equipment by isolating input ports.

  • Robust Thermal Management: Designed with high-grade aluminum housing to dissipate heat during continuous high-power operation.

  • Compact Form Factor: Standardized mounting options for easy integration into existing rack-mount systems.

  • Broadband Performance: Optimized for the 400–500 MHz range, covering standard UHF and PMR bands.

Specifications

Feature Specification
Frequency Range 400 – 500 MHz
Number of Inputs 2
Input Power (Max) 100W per port (Continuous)
Insertion Loss 3.5 dB
Isolation 25 dB
VSWR 1.25:1
Impedance 50 ohm
Connector Type N-Female (Standard)
Operating Temp -30°C to +70°C

Applications

  • Public Safety Networks: Combining P25 or TETRA radio channels.

  • Industrial Wireless: Consolidating multiple telemetry or data streams.

  • Broadcasting: Integrating auxiliary UHF signals into a single feed.

  • Bi-Directional Amplifiers (BDA): Essential component for in-building signal enhancement systems.
