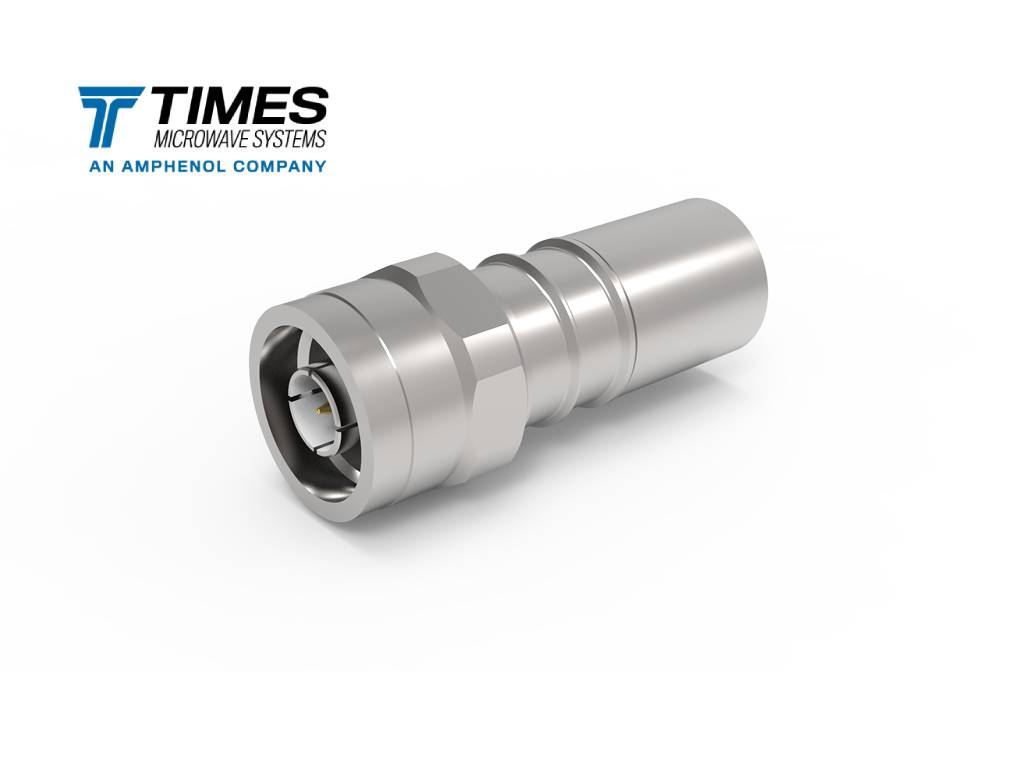

EZ-600-NMH-X High-Performance N Male Connector for 600-Series Cables
EZ-600-NMH-X is a revolutionary N Male (Plug) Straight Connector from the Times Microwave Systems EZ-Connector series. Designed for fast, error-free field installation, this connector eliminates the need for soldering and complex braid trimming, making it perfect for LMR-600 and equivalent cables. It delivers reliable, weatherproof, and mechanically superior RF performance for critical systems up to 6 GHz.
Features
-
Solderless Installation: Features a spring finger inner contact and a crimp-style outer contact, making it ideal for environments where soldering is impractical or restricted.
-
High Performance: Optimized for broadband performance up to 6 GHz with superior VSWR characteristics.
-
No-Braid Trim Design: The EZ design eliminates the need for braid trimming, reducing the risk of Foreign Object Debris (FOD) and ensuring a clean termination every time.
-
Durability: Finished in Alballoy® (tri-metal plating) for excellent corrosion resistance and long-term environmental protection.
-
Rugged Construction: Includes a hex/knurl coupling nut for secure hand-tightening or torque-tool application.
Specifications
| Attribute | Value |
| Manufacturer | Amphenol Times Microwave Systems |
| Part Number | EZ-600-NMH-X |
| Connector Type | N-Type Male (Plug) |
| Orientation | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| VSWR | < 1.25:1 (up to 3 GHz) or < 1.30:1 (up to 8 GHz) |
| Inner Contact Attach | Spring Finger |
| Outer Contact Attach | Crimp |
| Body Material/Finish | Brass/Alballoy or White Bronze |
| Pin Finish | Gold Plating |
| Voltage Rating | 2500\text{ V |
| Operating Temperature | -55 C to +155 C |
| Compatible Cable Group | LMR-600 (and equivalents) |
Recommended Tools
-
Crimp Tool: CT-600 (or equivalent)
-
Cable Prep Tool: CST-600
-
Weather Sealing: Cold Shrink Weatherproofing Kits or Weather Seal Strain Relief Boots
-
Grounding: Grounding Kits (e.g., GK-S600TT)
As the exclusive distributor for Times Microwave Systems in the Middle East and North Africa, Soyuztec Trading LLC maintains a ready stock of EZ series connectors and specialized assembly tools.
