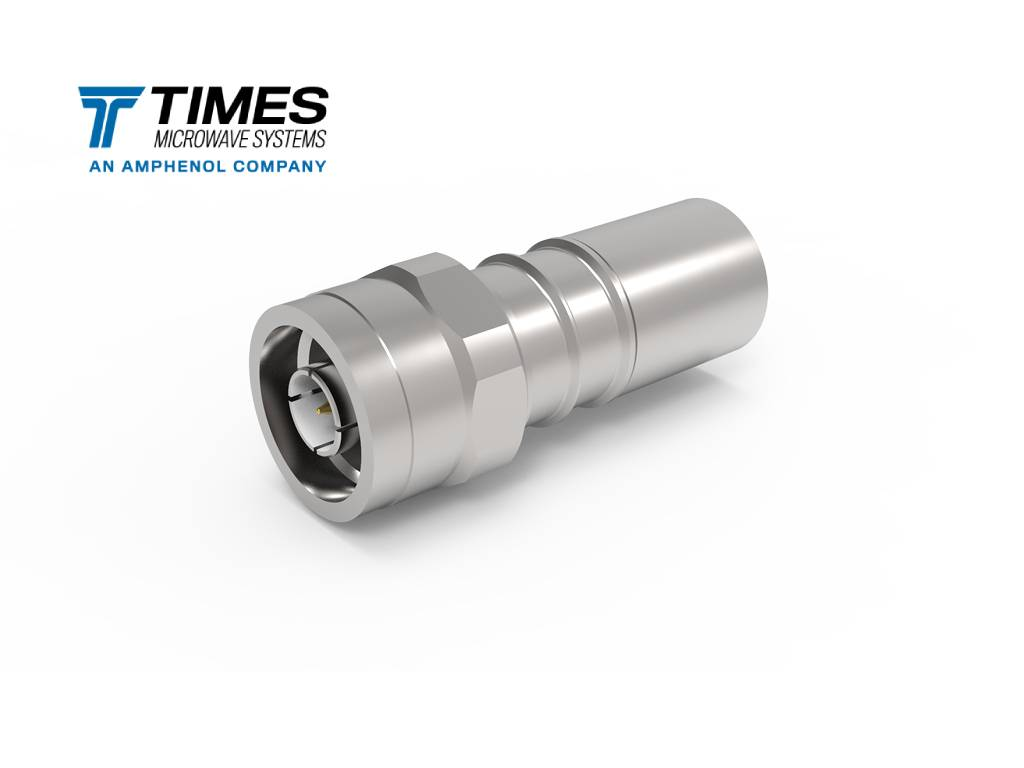

EZ-600-NM-75 | 75 Ohm N Male Straight Crimp Connector for LMR-600-75 Cable

EZ-600-NM-75 is a solderless, N Male, straight crimp connector designed specifically for LMR-600-75 coaxial cable. Part of the Times Microwave Systems EZ Connector series, it delivers superior broadband VSWR performance and industry-leading installation speed, making field termination simple and reliable

Connector Benefits

• Solderless EZ Assembly: Features a push-fit/snap-on spring finger center pin design for rapid, solder-free termination (often under 30 seconds). Ideal for field installations.

• Simple & Consistent: Consists of only two parts (crimp tube and connector body). The center pin is pre-installed and captivated, eliminating assembly errors and the need to check pin/dielectric heights.

• Superior Environmental Resistance: Tri-metal/Albaloy plating provides market-leading corrosion and salt-fog resistance for high reliability in wet environments.

• Excellent RF Performance: Engineered for superior broadband VSWR performance up to 2 GHz (<1.25:1 VSWR).

• Rugged & Durable: Features a hex coupling nut for secure, proper mating force and a robust design for high pull strength and connector retention.

• No Braid Trim: Unique design eliminates the need for braid trimming, saving time during installation.

EZ-600-NM-75 Specifications

Installation & Recommended Tools

The EZ-600-NM-75 is designed for the quickest and easiest installation in the industry.

• Recommended Strip Tool: CST-600 Strip Tool

• Recommended Crimp Tool: CT-600 Crimp Tool

• Complete Tool Kit: TK-600EZ Cable Assembly Tool Kit (includes CST-600, CT-600, and CCT-03 Cutting tool)
