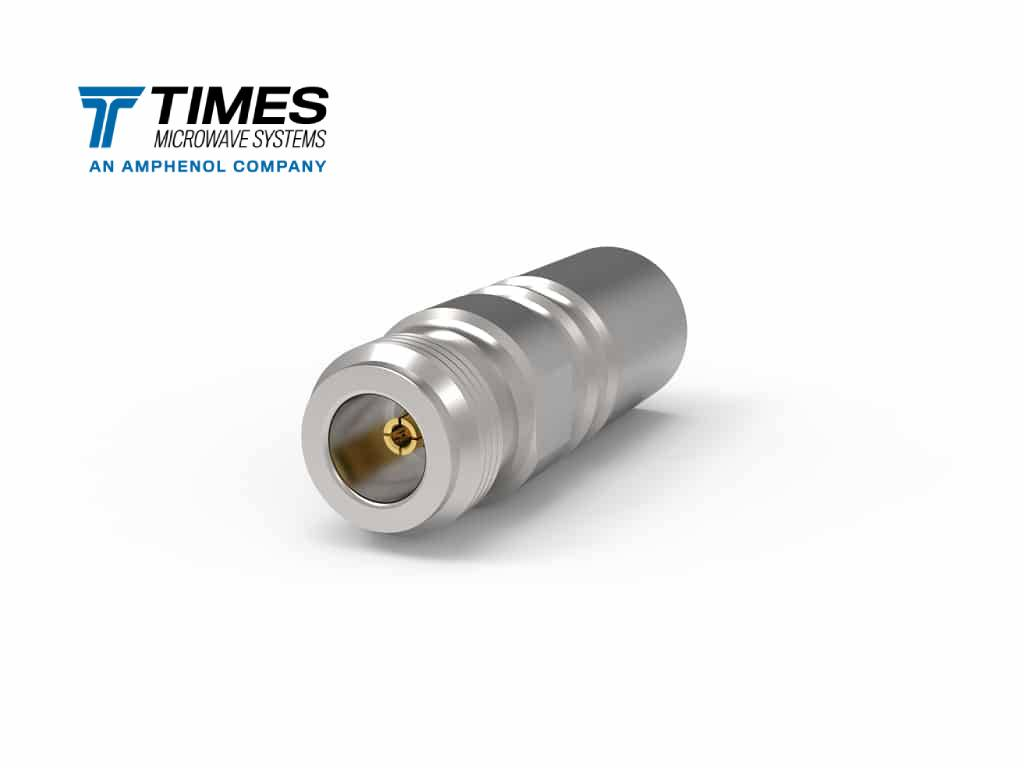

EZ-600-NF-X is an N-Type female RF coaxial connector (jack) for LMR-600 type cables. It’s an EZ-style, crimp-on connector that features a no-solder, no-braid trim design for fast, reliable installation up to 6 GHz

SKU: 3190-2817 Category: Tags: , , Brand:

EZ-600-NF-X N-Female EZ Connector for LMR-600 Cable

EZ-600-NF-X is an innovative N-Type Female (Jack) connector engineered by Amphenol Times Microwave Systems for quick, reliable field termination of LMR-600 coaxial cable. This EZ-style connector eliminates the need for soldering the center pin, significantly reducing installation time and the potential for assembly errors. It’s the ideal choice for demanding RF interconnect applications, offering superb electrical and mechanical integrity.

Solderless N-Type Connector: Fast, Flawless, Field-Installable

  • Solderless Installation: Features a non-solder, spring finger inner contact and crimp outer contact, making field assembly quick and consistent.

  • No Braid Trim: Designed to eliminate the time-consuming step of trimming the cable braid shield, further speeding up installation and reducing FOD (Foreign Object Debris).

  • Extreme Durability (IP67): Built to withstand harsh environments with a robust brass body, nickel finish, and PTFE dielectric, ensuring weatherproof operation.

  • High-Frequency Operation: Guarantees reliable signal transmission up to a maximum frequency of 6 GHz with a low VSWR.

  • Maximum Conductivity: Gold-plated center contact (Phosphor Bronze) ensures maximum signal integrity and corrosion resistance.

EZ-600-NF-X Specifications

Attribute Detail
Manufacturer Amphenol Times Microwave Systems
Part Number EZ-600-NF-X
Connector Style N-Type (Threaded Coupling)
Gender Jack, Female Socket
Orientation Straight
Impedance 50 Ohms
Max Frequency 6 GHz
Cable Group Compatibility LMR-600, T-RAD®-600, TCOM®-600
Termination Method Crimp / Non-Solder
Mounting Type Free Hanging (In-Line)
Ingress Protection IP67
Voltage Rating 2500 V
Operating Temperature -55 C to 155 C
Body Material/Finish Brass / Alballoy (or Nickel/Copper-tin-zinc)
Contact Plating Gold

Recommended Assembly Tool

  1. Crimp Tool: The recommended tool is often the CT-600 (Crimp Tool for LMR-600 connectors).

  2. Cable Prep Tool: A dedicated strip tool, such as the CST-600 (Cable Strip Tool for LMR-600), is usually necessary to prepare the LMR-600 cable to the correct dimensions for the EZ connector.
