EZ-600-FM-75-X

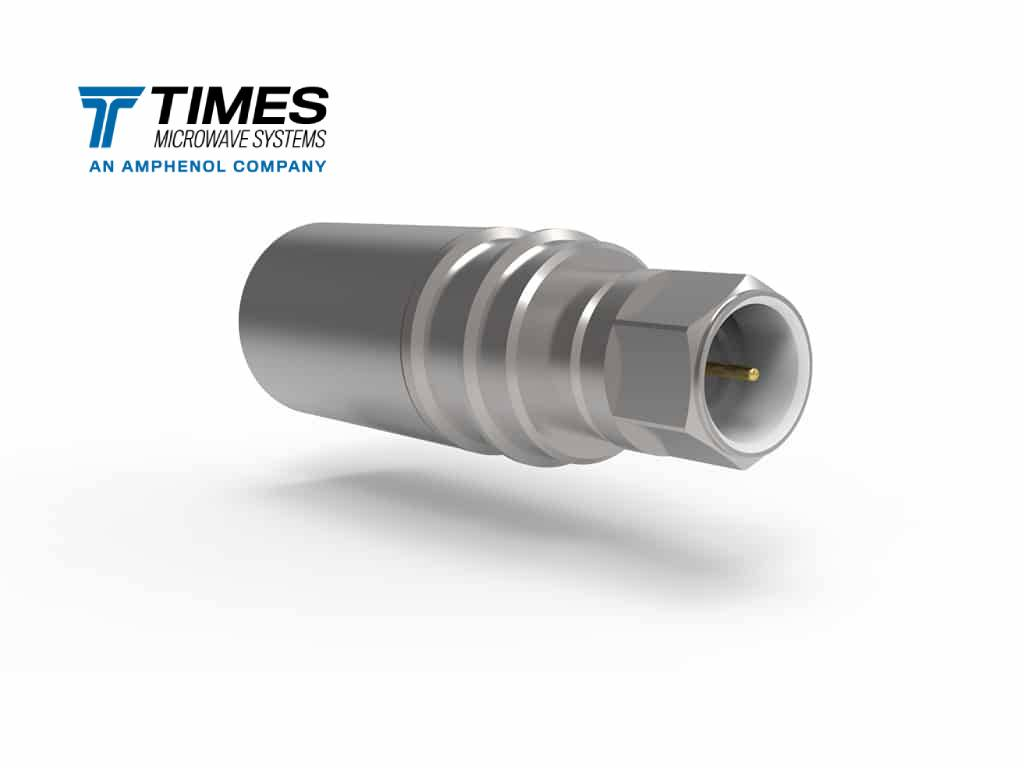

EZ-600-FM-75-X F-Type Male Connector

Original price was: د.إ69.84.Current price is: د.إ66.51.

EZ-600-FM-75-X is an F-type male 75 Ohm coaxial connector for LMR-600-75 cable It features an easy, solderless crimp/push-on design max frequency of 1 GHz

SKU: 3190-6410 Category: Tags: , , Brand:

Times Microwave System EZ-600-FM-75-X F-Type Male Connector for LMR-600-75 Cables

EZ-600-FM-75-X is a high-performance Type F Male, Straight, Solderless EZ-Style Connector designed specifically for LMR-600-75 series cables. As part of the EZ series, it is engineered for fast, reliable field installations without the need for soldering, ensuring consistent, optimal termination every time.

Features

  • Cable Compatibility: Designed for LMR-600-75, LMR-600-75-DB, and LMR-600-75-FR cables.

  • EZ-Style Termination: Eliminates assembly errors and soldering with a crimp-style outer contact and a spring-finger inner contact.

  • No-Braid Trim Design: Guarantees an optimal and consistent termination while eliminating FOD (Foreign Object Debris).

  • Robust Performance: Ideal for extreme cold and high-vibration applications due to the strong spring force of the BeCu (Beryllium Copper) pins.

  • High-Quality Materials: Features a Gold-plated Beryllium Copper center contact and an Alballoy/White Bronze body finish for superior conductivity and corrosion resistance.

  • Excellent Electricals: 75 Ohm Impedance with a maximum frequency of 1 GHz and a VSWR (Voltage Standing Wave Ratio) of 9$\le 1.30:1$ at 1 GHz.

Specification

Attribute Specification
Connector Type F Male (Plug)
Style/Orientation Straight
Cable Compatibility LMR-600-75, LMR-600-75-DB, LMR-600-75-FR
Impedance 75 Ohms
Max Frequency 1 GHz
VSWR (Max) < 1.30:1 at 1 GHz
Inner Contact Attach Spring Finger (Non-Solder)
Outer Contact Attach Crimp
Body Finish Alballoy (White Bronze/Tri-Metal)
Pin Finish Gold
Ingress Protection IP 67 Rated (when used with WSB Weather Sealing Boots)
Operating Temp. -40 C to +125 C
Length (in / mm) 2.02  in / 51.4  mm
Weight (lb / g) 0.03 lb / 12.64 g

Why Choose Times Microwave from Soyuztec?

At Soyuztec Trading LLC, we understand that signal integrity is non-negotiable. By choosing genuine Times Microwave “EZ” connectors, you ensure

  1. Lower Total Cost: Faster installation means lower labor costs.

  2. Reliability: Reduced failure points compared to traditional solder connectors.

  3. Performance: Optimized for the low-loss characteristics of LMR cable.
