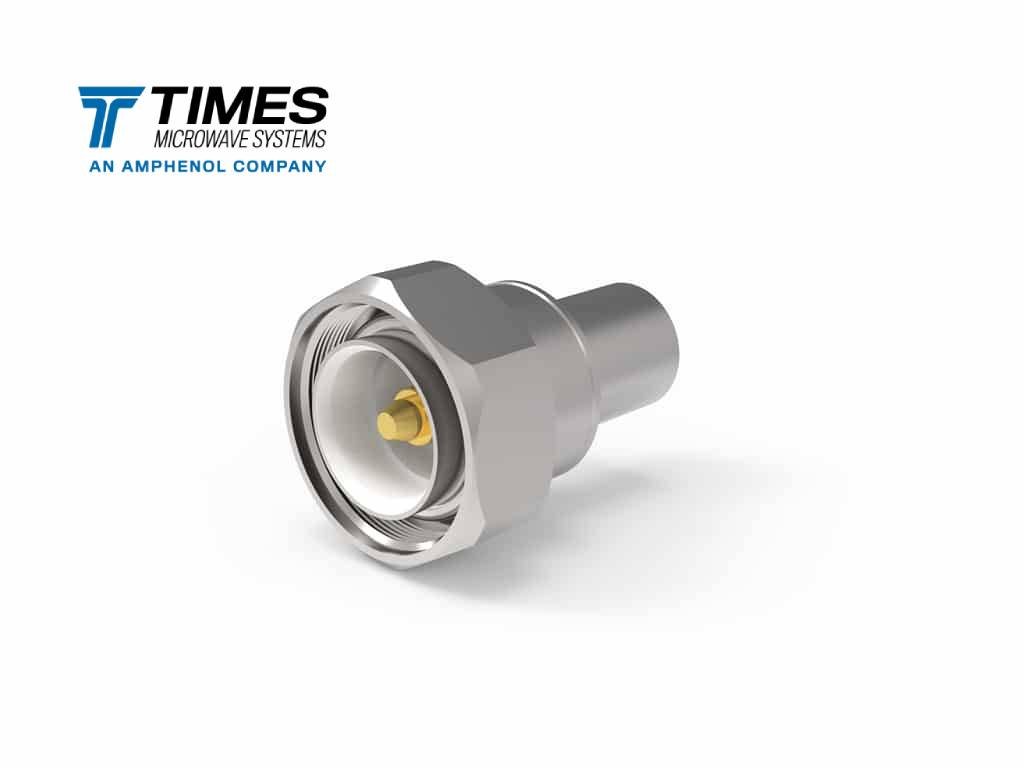

EZ-600-716M-X Connector: 7/16 DIN Male for LMR-600 Cable

The EZ-600-716M-X is a high-performance 7/16 DIN Male (plug) straight EZ connector designed for use with LMR-600, T-RAD-600, and TCOM-600 type cables. It is engineered for quick, error-free, and reliable field installations, making it an excellent choice for demanding RF applications.

7/16 DIN Male Features

This EZ-600-716M-X 7/16 DIN Male EZ Connector is engineered for speed, reliability, and superior performance with LMR-600 series cables. It simplifies installation while guaranteeing an optimal, consistent termination.

• Easy & Fast Termination: The “EZ” design eliminates soldering and complex prep steps, allowing for rapid field installation—often in under 30 seconds.

• Solderless Design: Utilizes crimp-style outer contacts and an innovative spring finger inner contact mechanism, eliminating assembly errors associated with soldering.

• No-Braid Trim: Features a no-braid trim design, which saves time, eliminates Foreign Object Debris (FOD), and guarantees consistent termination quality.

• High-Performance in Extreme Conditions: BeCu (Beryllium Copper) pins maximize surface contact and minimize current density. The strong spring force makes this connector ideal for extreme cold and high-vibration environments where the center conductor may contract.

• Water Resistant: As a 7/16 DIN connector, it’s a threaded RF connector often used in applications requiring water resistance, such as base stations and broadcast communication systems.

• Durable Construction: Features an Alballoy body finish and Silver pin finish for robust, long-lasting performance.

EZ-600-716M-X Specification

Compatible Tools and Accessories

• CST-600 Prep Tool

• CT-600 Crimp Tool

• CCT-02 / CCT-03 Cable Cutting Tool

• WR-600 Weather Seal Strain Relief Boot
