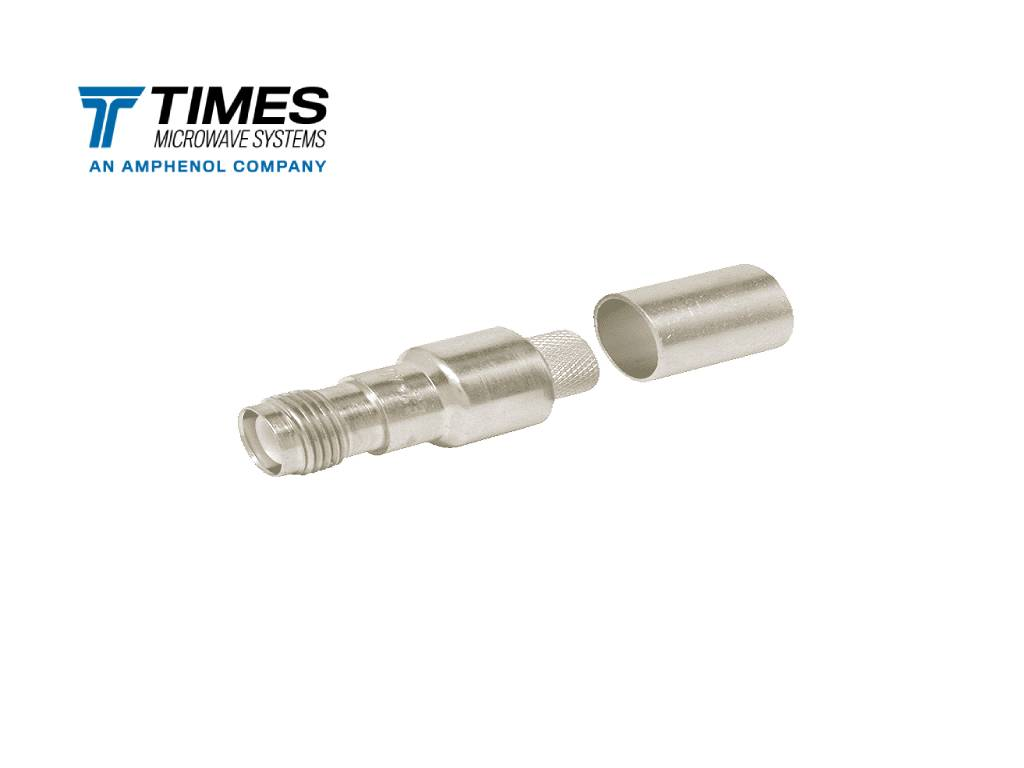

EZ-400-TM-RP Reverse Polarity TNC (RP-TNC) Male (Plug) Crimp Connector for LMR-400 coaxial cable
EZ-400-TM-RP is a high-performance, Reverse Polarity TNC (RP-TNC) Male (Plug) Crimp Connector engineered by Amphenol Times Microwave Systems. Designed for quick, reliable, and solderless termination of LMR-400 series coaxial cables, this connector is the ideal choice for demanding RF and wireless applications like Wi-Fi, WLAN, antenna systems, and Land Mobile Radio (LMR).
Key Features & Benefits
| Feature | Benefit |
| Solderless EZ-Style Design | Utilizes spring-finger inner contacts for secure, low-resistance connection—eliminating soldering for fast, error-free field installation. |
| Reverse Polarity TNC Interface | Features a female center contact in a male body, ensuring compatibility with RP-TNC female components in specialized wireless systems. |
| Quick Crimp Outer Attachment | Securely assembled in under 30 seconds with a standard .429″ hex crimp tool, minimizing installation time and errors. |
| High-Performance RF | Offers reliable signal integrity with low VSWR (Voltage Standing Wave Ratio) up to 2.5 GHz (some sources indicate up to 6 GHz). |
| Durable Construction | Gold-plated center contact and Alballoy or Nickel-plated body provide excellent corrosion resistance and robust performance in harsh environments. |
| Compatibility | Optimized for LMR-400, TCOM-400, and T-RAD-400-FR type cables. |
Technical Specifications
| Specification | Detail |
| Connector Type | TNC, Reverse Polarity (RP) |
| Gender | Male (Plug) with Female Pin |
| Cable Compatibility | LMR-400, TCOM-400, T-RAD-400-FR |
| Impedance | 50 Ohms |
| Maximum Frequency | 3 GHz (Typical) |
| VSWR | <1.25:1 up to 2.5 GHz |
| Body Material/Finish | Brass / Alballoy (Nickel/White Bronze) |
| Center Contact Plating | Gold |
| Coupling | Threaded |
| Operating Temperature | -40 C to +85 C |
| Voltage Rating | 500 V |
Applications
The EZ-400-TM-RP is the go-to connector for applications demanding quick deployment and consistent electrical performance in the field:
- Wireless Networking (Wi-Fi/WLAN): Connecting antennas and access points that utilize RP-TNC interfaces.
- Land Mobile Radio (LMR): Reliable connections for critical public safety and commercial radio systems.
- Fixed Wireless Infrastructure: Base stations, antenna feeder cables, and tower installations.
- Broadband and General RF Applications: Wherever high-frequency, low-loss interconnectivity is essential.
Installation Resources
- Compatible Tools: Recommended crimp tools (e.g., Times HX-4) and cable prep tools (e.g., Times DBT-01) are available separately.
