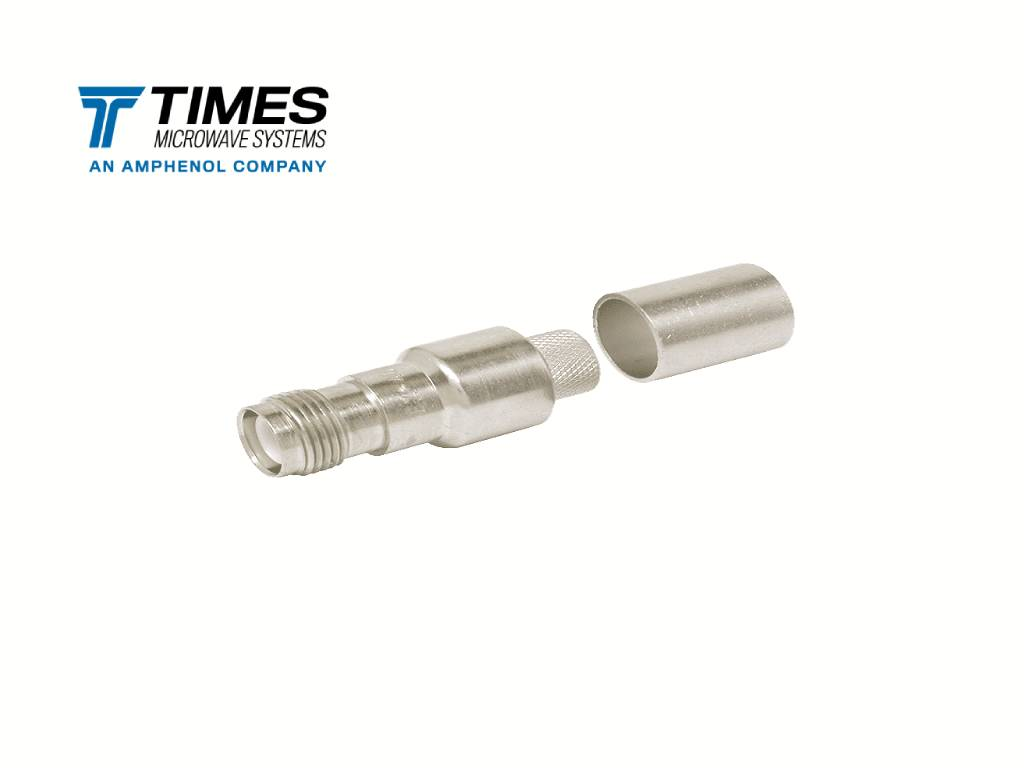

EZ-400-TF-RP Reverse Polarity TNC Female Connector for LMR-400 Coaxial Cable
EZ-400-TF-RP is a Reverse Polarity TNC female (jack) connector from Times Microwave Systems specifically, for LMR-400 coaxial cable. Features an “EZ-style” solderless, crimp design for fast field installation, providing 50 Ohm impedance and excellent VSWR up to 3 GHz. Crucially, this female body contains a male center pin.
Key Product Highlights
The EZ-400-TF-RP is engineered to set the new “gold standard” for easy and consistent termination of LMR-400 type coaxial cables. In effect, it eliminates the need for soldering, consequently drastically reducing installation time and potential errors in the field.
- The RP-TNC Female connector (Jack) houses a male center pin inside its female body, making it suitable for specialized RP-TNC male connections often found in Wi-Fi and WLAN systems.
- Solder-Free EZ-Style Design: Employs spring finger contacts that securely clasp the cable’s center conductor, creating a reliable, low-resistance DC connection without soldering.
- Superior Signal Performance: Provides excellent broadband VSWR performance and a low insertion loss for reliable signal integrity.
Technical Specifications
| Attribute | Value |
| Manufacturer | Amphenol Times Microwave Systems |
| Part Number | EZ-400-TF-RP (Stock Code: 3190-795) |
| Series | EZ Connectors |
| Interface Type | TNC (Threaded Neill-Concelman) |
| Gender | Jack (Female Socket) with Male Center Pin |
| Polarity | Reverse Polarity (RP) |
| Impedance | 50 Ohms |
| Maximum Frequency | 3 GHz (Some data suggests up to 6 GHz) |
| VSWR | Low reflection (typically <1.25:1 at 2.5 GHz) |
| Cable Compatibility | LMR-400, TCOM-400, T-RAD-400-FR |
| Termination Style | Inner Contact: Spring Finger (Push-On); Outer Contact: Crimp |
| Mounting Type | Free Hanging (In-Line) / Cable Mount |
| Body Material/Finish | Brass / Alballoy/White Bronze (Superior corrosion resistance) |
| Center Contact Plating | Gold (50 micro inches for enhanced mate/de-mate life) |
| Voltage Rating | 500 V |
| Operating Temperature | -40°C to 85°C (Some variants up to 155°C) |
Applications & Ideal Uses
The EZ-400-TF-RP has been lauded by engineers. Specifically, due to its high-performance characteristics
- Wireless Networking: Wi-Fi access points, WLAN, and other 50-ohm RF systems.
- Antenna Systems: Connecting LMR-400 cable runs to base station and outdoor antennas.
- Field Installations: Where speed, reliability, and solder-free assembly are critical.
- Demanding Environments: Robust design and tri-metal plating ensure durability against vibration, moisture, and extreme temperatures.
