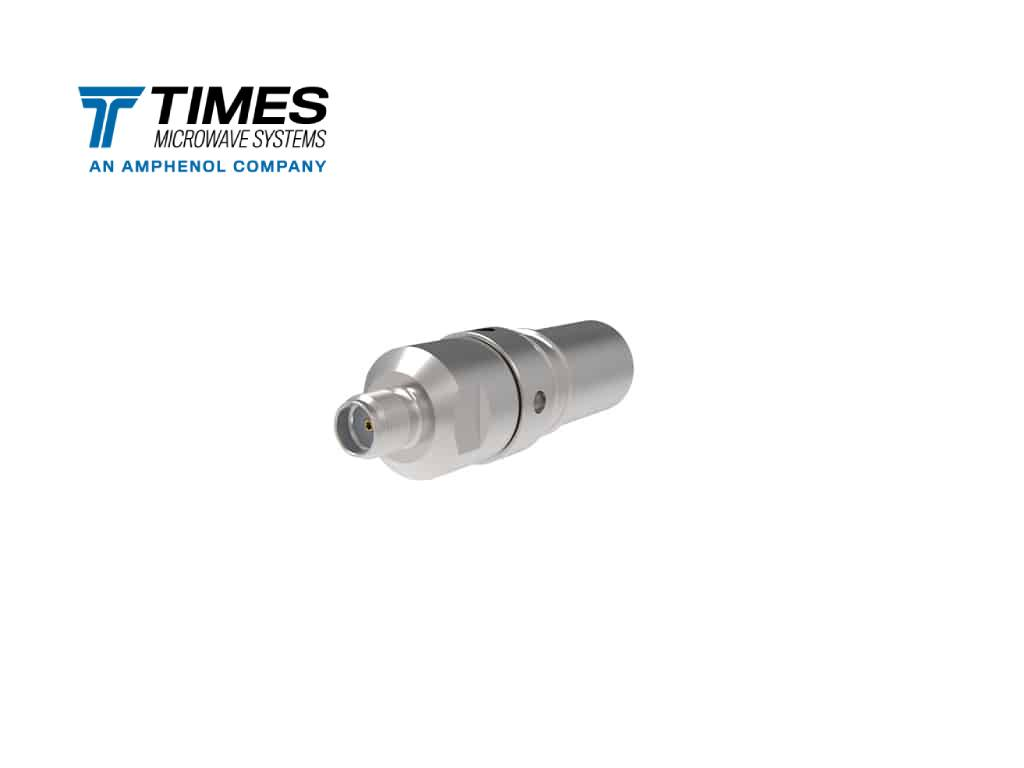

EZ-400-SF-X

EZ-400-SF-X SMA female connector for LMR-400 coaxial Cable

The EZ-400-SF-X is the ultimate SMA Female Jack connector designed specifically, for LMR-400, TCOM-400, and T-RAD-400-FR coaxial cable, offering a superior, solderless termination that ensures rapid, reliable, and consistent performance every time. Engineered by Amphenol Times Microwave Systems, Moreover, this connector is a game-changer for field installations, emergency repairs, and high-volume deployment.

Key Features & Benefits

• Solderless EZ-Style Design eliminates complex and time-consuming soldering, allowing for significantly faster assembly and lower labor costs.
• No-Braid Trim simplifies cable prep by eliminating the need to trim the braid shield, reducing the potential and ensuring a guaranteed optimal termination.
• Spring Finger Inner Contact provides a strong, durable, and reliable electrical connection, perfect for high-vibration and extreme cold environments where, the center conductor may contract.
• Crimp-Style Outer Contact ensures a secure, mechanical, and durable connection to the cable shield.
• High Performance offers excellent RF performance with a maximum frequency of 8 GHz and low VSWR.
• Gold-Plated Beryllium Copper Pins maximizes surface contact and minimizes current density for superior signal integrity.

Technical Specifications

Ideal Applications

The EZ-400-SF-X is the preferred choice for any application demanding speed, consistency, and reliability in its coaxial connections:

• Telecommunications & Wireless Networks: Cell towers, Wi-Fi infrastructure.
• Field Installations & Emergency Repairs: Quick and reliable assembly when time is critical.
• Industrial & Military: Environments subject to high mechanical stress or vibration.
• General-Purpose RF Applications: Data centers and broadcast towers.
