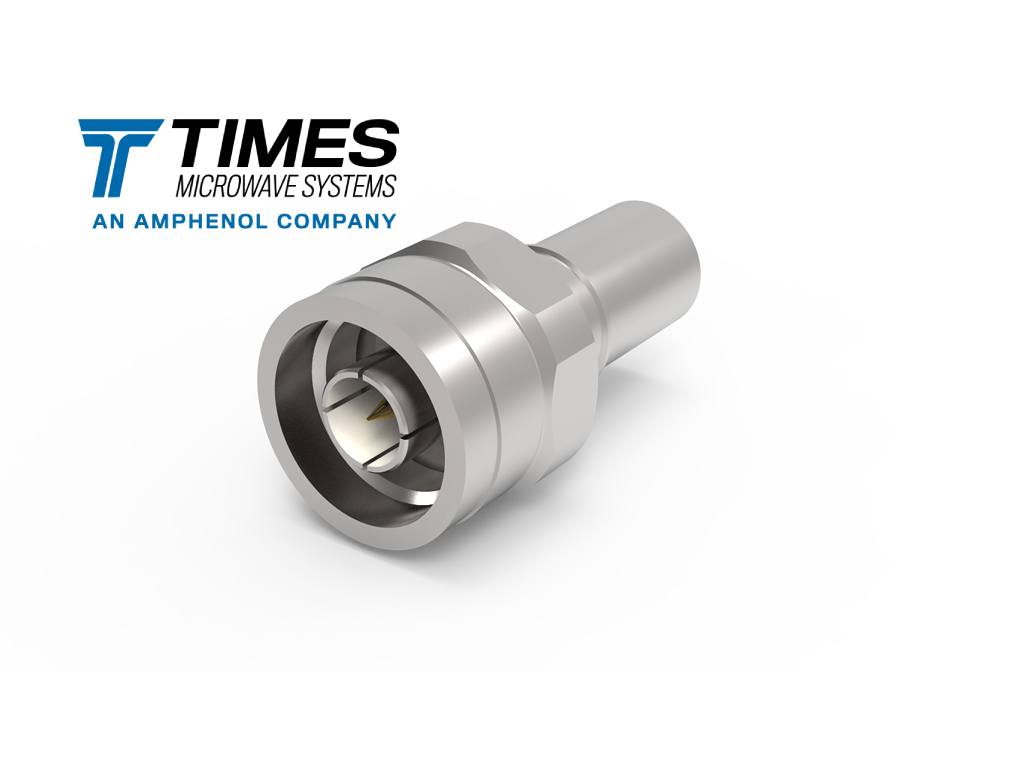

EZ-400-NMH-X ULTIMATE N-Male Straight Crimp Connector
EZ-400-NMH-X is a high-performance, Type N Male (Plug) connector specifically engineered for use with LMR-400 low-loss coaxial cables. Featuring a “Non-Solder” EZ design, this connector provides a reliable, high-speed termination solution for telecommunications, wireless systems, and satellite communications. As an authorized trading partner, Soyuztec Trading LLC ensures you receive genuine Times Microwave components for mission-critical connectivity.
Features
-
Solderless Installation: The EZ design utilizes a spring-finger inner contact, eliminating the need for soldering and reducing installation time while maintaining electrical integrity.
-
Exceptional Low Loss: Optimized for LMR-400 cable to ensure minimal signal degradation across high-frequency bands.
-
Tri-Metal Plating: Features a robust Albaloy (tri-metal) plating that offers superior corrosion resistance and lower intermodulation (PIM).
-
Weatherproof Construction: When used with the appropriate heat shrink or boots, it provides a durable, moisture-resistant connection suitable for outdoor environments.
Specifications
| Feature | Specification |
| Connector Type | N Male (Plug) |
| Cable Compatibility | LMR-400 (and variants) |
| Contact Attachment | Spring Finger (Non-Solder) |
| Outer Contact | Crimp |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz |
| Coupling Nut | Hex/Knurl |
| Finish | Albaloy/Tri-Metal Plated |
Why Choose the “X” Series?
The “X” suffix denotes the latest generation of Times Microwave connectors. These are designed with enhanced ergonomics and improved materials to provide:
-
Lower VSWR (Voltage Standing Wave Ratio) across a wider frequency range.
-
Increased Durability for repeated mating cycles in the field.
-
Simplified Prep: Works perfectly with standard Times Microwave prep tools (like the CST-400).
