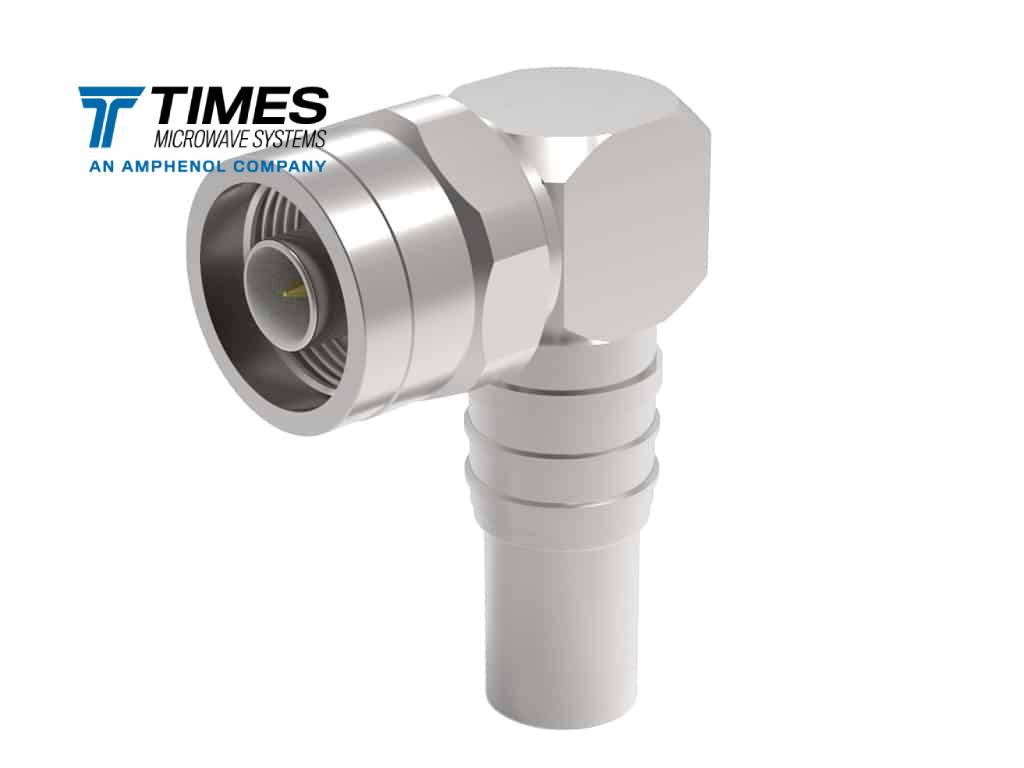

EZ-400-NMH-RA-X N Male Right Angle Connector

EZ-400-NMH-RA-X N Male Right Angle Crimp Connector for LMR-400 coaxial cable

EZ-400-NMH-RA-X Connector is a high-performance, Right-Angle (90°) N-Type Male (plug) connector specifically engineered for terminating LMR-400 and similar high-performance, low-loss coaxial cable. This specialized connector is essential for installations in tight spaces or crowded enclosures, allowing the thicker LMR-400 cable to exit the equipment immediately with minimal stress. It combines the ruggedness of the N-Type interface with the speed and reliability of the solderless EZ-Fit installation method.

Features

• Right-Angle (RA) Design: The 90-degree body is critical for LMR-400 coaxial cable, reducing the required bend radius and minimizing cable bending stress in compact installations like equipment racks or behind wall panels.
• LMR-400 Optimized: Designed specifically for LMR-400 coaxial cable, providing significantly lower signal loss and superior handling of high-power/high-frequency signals compared to smaller cables.
• EZ-Fit Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin, dramatically reducing installation time (often under 60 seconds) and guaranteeing consistent, high-quality connections.
• High-Frequency N-Type: The robust, threaded N-Type interface is renowned for its durability and excellent electrical characteristics, supporting high-frequency applications up to 6 GHz.
• No Braid Trim Design: Simplifies cable preparation by eliminating the braid trim step, ensuring consistent termination geometry and reducing Foreign Object Debris (FOD).

Specifications

Applications

• Wireless Infrastructure: Base stations, cellular repeaters, and WISP deployments requiring short cable exit profiles.
• Antenna Systems: Connecting LMR-400 jumper cables to antenna ports on radios inside crowded enclosures.
• Rack-Mounted Equipment: Used for clean cable management and strain relief within server and equipment racks.
• Military & Aerospace: Applications requiring high reliability and low loss in constrained spaces.

Why Source from Soyuztec Trading LLC?

As the Exclusive Distributor of Times Microwave Systems in the MENA region, Soyuztec Trading LLC ensures:

• Genuine Products: 100% authentic Times Microwave components directly from the manufacturer.

• Local Stock: Immediate availability in Dubai for UAE and GCC customers.

• Expert Support: Technical guidance on cable preparation and tool selection (CST-400 prep tools available).

• Full Solutions: We provide the complete ecosystem from LMR cables to connectors and custom assemblies.
