EZ-400-NF-X N Female Connector

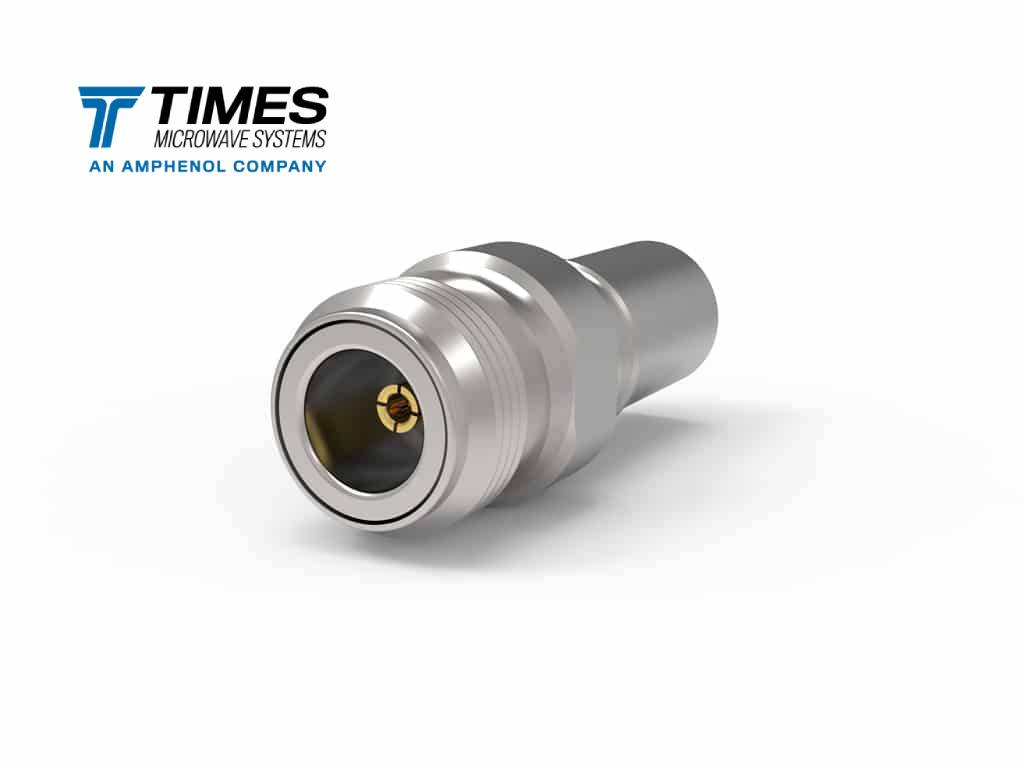

EZ-400-NF-X High-Performance N-Female Connector for LMR-400 Coaxial Cable

The EZ-400-NF-X (Stock Code: 3190-2818) is a premium, solderless Type-N Female connector designed by Times Microwave Systems. Engineered for rapid and reliable field installations, this “EZ” style connector eliminates the need for soldering, significantly reducing the risk of installation errors while maintaining superior RF performance across broadband frequencies.

Features

• Solderless “EZ” Design: Utilizes spring-finger inner contacts that securely grip the center conductor, ensuring a low-resistance connection without the heat of soldering.

• No-Braid-Trim Technology: Designed to eliminate the need for trimming the cable braid, reducing Foreign Object Debris (FOD) and guaranteeing consistent VSWR.

• Superior Durability: Features Albaloy/Nickel-plated brass body and gold-plated Beryllium Copper (BeCu) pins for maximum conductivity and corrosion resistance.

• Extreme Environment Ready: Ideal for high-vibration and extreme temperature applications (−40 C to +125 C) where center conductors may contract.

• Weatherproof: Provides a robust, moisture-tight seal (IP67 rated when used with the included adhesive-lined heat shrink boot).

Specifications

Compatible Cables & Tooling

As the authorized distributor, Soyuztec Trading LLC provides the full ecosystem required for a professional LMR-400 termination

• Supported Cables: LMR-400, TCOM-400, T-RAD-400-FR.

• Prep Tool: CST-400 (All-in-one stripping tool).

• Crimp Tool: CT-400/300 (0.429″ Hex die).

• Cutting Tool: CCT-02 (Clean-cut cable shears).

Why Source from Soyuztec Trading LLC?

As a specialized partner for Times Microwave Systems in the UAE, Soyuztec ensures

1. Genuine Products: 100% authentic connectors and cables sourced directly from the manufacturer.

2. Ready Stock: Local availability in our Dubai warehouse for immediate dispatch.

3. Technical Support: Expert guidance on RF link budgets and connector selection.
