EZ-400-NF-BH-X

Secure Panel Mount Connectivity with EZ-400-NF-BH-X

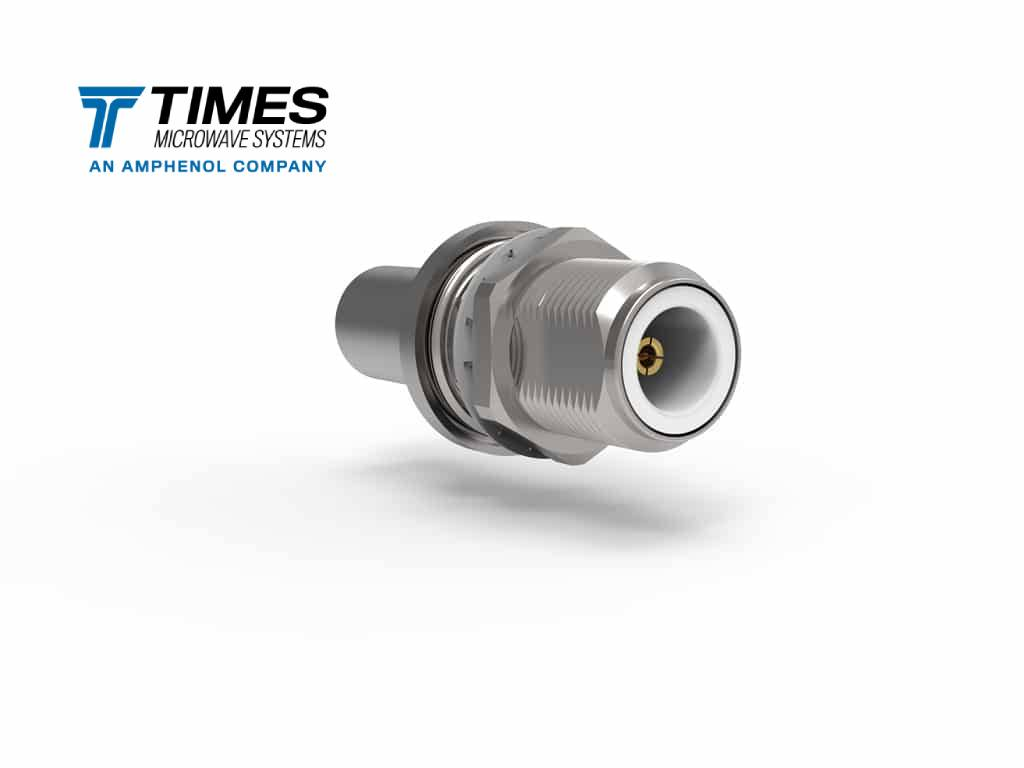

EZ-400-NF-BH-X sets the gold standard for fast, solderless, and high-performance termination EZ-400-NF-BH-X: N Female Bulkhead Jack for LMR-400 series coaxial cables. Ideal for field installations, this N Female Bulkhead connector ensures superior signal integrity up to 6 GHz with minimal assembly time.

• Solderless EZ-Style Design: Features a revolutionary spring-finger inner contact that eliminates the need for soldering, allowing for consistent, low-resistance connections in under 30 seconds.
• Bulkhead Mounting: N-Female jack with a bulkhead feature, perfect for secure, panel-mounted connections on enclosures, cabinets, or equipment.
• High-Performance up to 6 GHz: Engineered for exceptional VSWR performance <1.30:1 at 6 GHz and a stable 50 Ohm impedance for mission-critical RF applications.
• Superior Durability: Features Alballoy body finish and Gold-plated Beryllium Copper (BeCu) pins for enhanced corrosion/salt fog resistance and maximum mate/de-mate life (500 cycles).
• Crimp Outer Contact: Provides a robust and secure mechanical connection to the cable’s outer shield, ensuring superior pull strength.

Assembly and Installation

The EZ-400-NF-BH-X is designed for rapid, error-free assembly, dramatically reducing installation time and eliminating common field termination issues.

Installation Advantages

1. No Soldering Required: The center pin is pre-installed and captivated, using a secure spring-finger contact mechanism that grips the center conductor.
2. No-Braid Trim Design: The crimp outer contact system simplifies cable prep, eliminating the need to trim the cable’s braid, which prevents Foreign Object Debris (FOD) and guarantees a consistent termination every time.
3. Compatible Tooling: Designed for use with standard Times Microwave assembly tools (e.g., CST-400 stripping tool, CT-400/300 crimp tool).

Ideal Applications

This high-reliability connector is the ideal choice for any application requiring a secure, panel-mounted N-Female port and robust signal performance.

• Wireless Infrastructure: Base Stations, Cell Towers, and Antennas
• Distributed Antenna Systems (DAS)
• Tunnel and Indoor RF Installations (where soldering may be prohibited)
• High-Vibration Environments (BeCu pins maintain strong spring force)
• Test and Measurement Equipment
• Military and Aerospace (Meets or exceeds MIL-C-39012 interface specifications)
