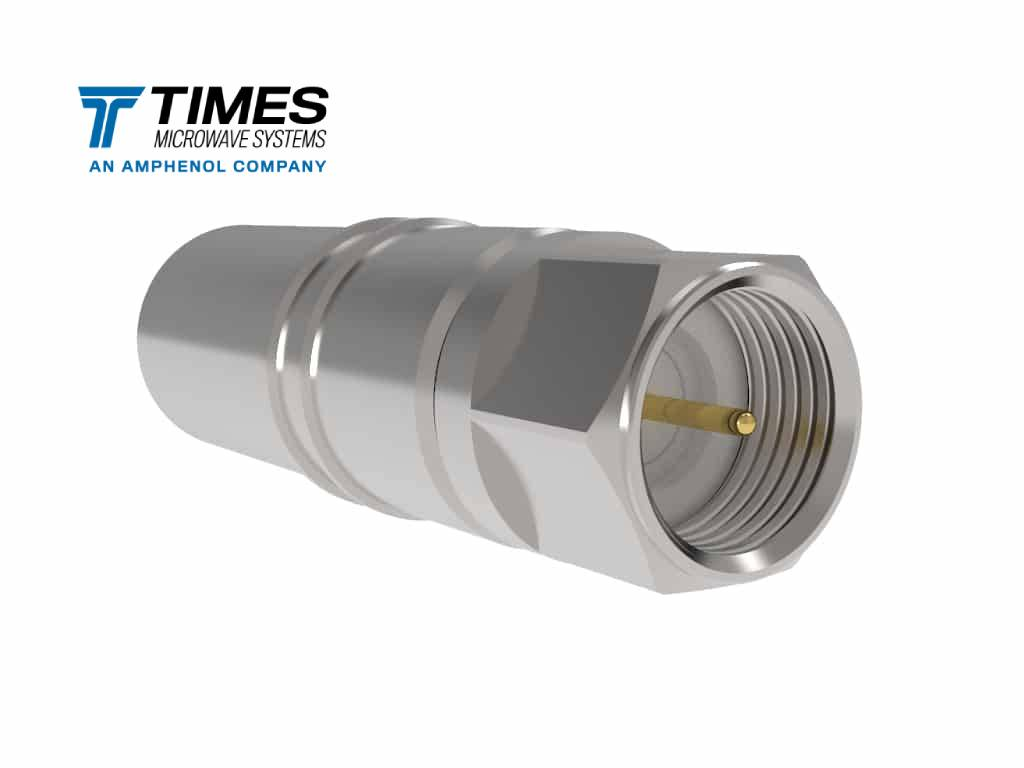

EZ-400-FM-75-X F-Male Connector for LMR-400-75
EZ-400-FM-75-X is a premium, high-reliability F-type male connector designed specifically for LMR-400-75 (75 Ohm) coaxial cables. Engineered by Times Microwave Systems, this connector features a “non-solder” design, ensuring rapid field installation while maintaining superior electrical performance and environmental integrity.
Features
-
Solderless Installation: Features a spring finger inner contact and a crimp-style outer attachment for fast, consistent termination without the need for soldering irons.
-
Tri-Metal Plating: The “X” series designation indicates a specialized Alballoy (Tri-Metal) plating, providing excellent corrosion resistance and low intermodulation (PIM).
-
Rugged Durability: Built to withstand harsh environments, making it ideal for both indoor and outdoor telecommunications infrastructure.
-
Precision Impedance: Specifically engineered for 75 Ohm systems to minimize signal reflection and return loss in video, broadband, and satellite applications.
Specifications
| Attribute | Specification |
| Connector Type | F Male |
| Impedance | 75 Ohms |
| Cable Compatibility | LMR-400-75 / LMR-400-75-DB |
| Coupling Nut | Hex/Knurl |
| Outer Contact Attachment | Crimp |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Finish (Body) | Alballoy / Tri-Metal |
| Frequency Range | DC – 2 GHz |
Why Choose Times Microwave via Soyuztec?
At Soyuztec Trading LLC, we specialize in providing genuine, high-tier RF components. The EZ-400-FM-75-X stands out because it eliminates the variability of solder joints, offering a “Advantage-X” design that ensures:
-
Lower Total Cost of Installation: Reduced labor time.
-
Weatherproof Reliability: When used with standard heat shrink or boots.
-
Broadband Performance: Stable performance across the entire 75 Ohm frequency spectrum.
