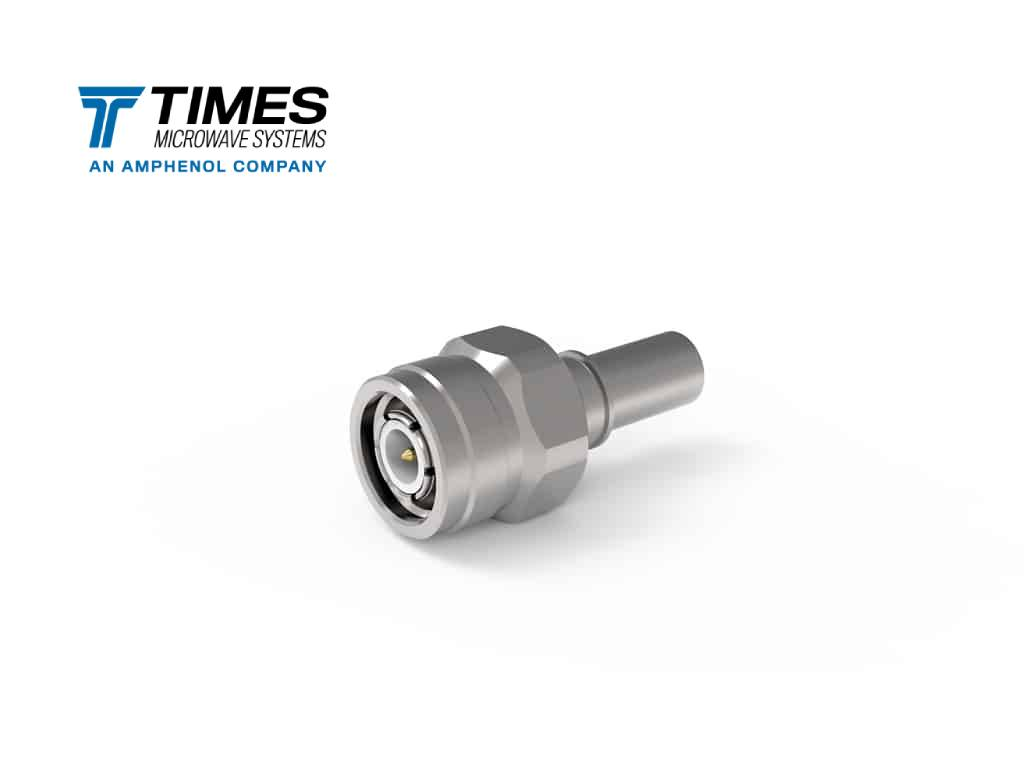

TNC PLUG STRAIGHT CRIMP (EZ-240-TM-X)
EZ-240-TM-X Connector is a high-performance TNC Male (plug) connector specifically engineered for rapid, reliable termination of LMR-240 and similar flexible low-loss coaxial cable. As a premium component of the revolutionary EZ-Fit series, this connector provides the rugged, threaded TNC interface combined with the convenience of solderless installation. It’s the ideal choice for creating durable, low-loss cable assemblies for systems operating up to 6 GHz.
Key Features & Advantages
- LMR-240 Optimized: Precisely matched to the electrical and physical requirements of LMR-240 coaxial cable, ensuring lower signal loss and superior performance compared to assemblies using smaller cables.
- EZ-Fit Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and guaranteeing consistent, high-quality connections in the field.
- TNC Threaded Interface: Provides a secure, vibration-resistant threaded coupling, offering reliable performance superior to bayonet (BNC) connectors in many environments.
- No Braid Trim Design: The connector’s design simplifies cable preparation by eliminating the braid trim step, ensuring a consistent, optimal termination geometry.
- Rugged Construction: Built with durable machined brass and Alballoy (White Bronze) plating for excellent corrosion resistance and longevity.
Specifications
| Attribute | Detail |
| Connector Style | TNC |
| Gender | Male (Plug) |
| Interface | Straight, Threaded Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-240 (and variants) |
| Inner Contact Attachment | Spring Finger (Solderless, Push On) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Alballoy (White Bronze) |
| Center Contact Plating | Gold |
| VSWR (DC-6 GHz) | <1.30:1 |
| Temperature Range | -55 C to 125 C |
Typical Applications
- Wireless Networking: Used in commercial Wi-Fi systems, base stations, and repeater connections.
- Coaxial Jumper Assemblies: Creating durable, high-performance TNC Male jumpers utilizing the low-loss LMR-240 coaxial cable.
- Industrial Monitoring: Providing robust, threaded connections in SCADA and telemetry systems.
- Test & Measurement: Creating reliable, low-loss test leads for lab and field use.
Installation & Recommended Tooling
- Crimping Tool: Times Microwave 3190-667 CT-240 tool is mandatory for securing the ferrule.
- Cable Prep Tool: A dedicated CST-240A is essential for achieving the exact strip dimensions required by the solderless contact.
