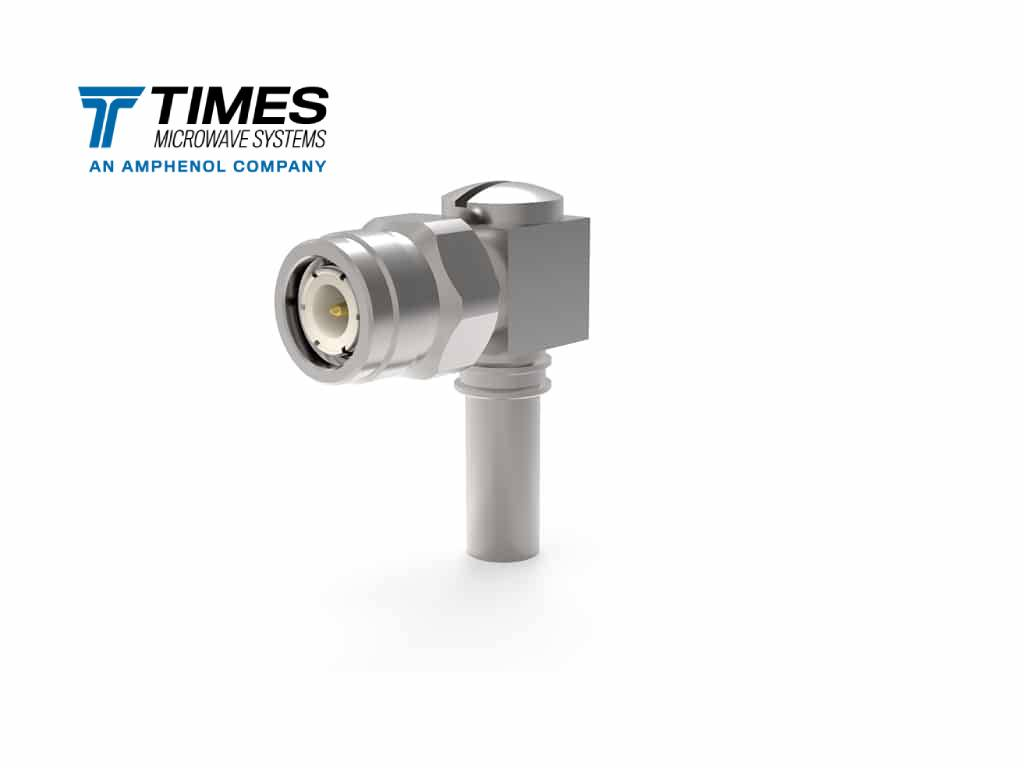

EZ-240-TM-RA-X TNC Male Right Angle Connector

TNC-MALE PLUG CRIMP RIGHT ANGLE EZ-240-TM-RA-X

EZ-240-TM-RA-X Connector is a high-performance, Right-Angle (90°) TNC Male (plug) connector specifically engineered for terminating LMR-240 and similar flexible low-loss coaxial cable. This specialized connector is essential for installations in tight spaces or crowded equipment panels, allowing the cable to exit immediately with minimal stress. It combines the superior signal integrity of the TNC interface with the speed and reliability of the solderless EZ-Fit installation method.

Features

• Right-Angle (RA) Design: The 90-degree body allows the LMR-240 coaxial cable to exit the connection point immediately, minimizing cable bending stress and reducing the required footprint, crucial for compact devices and crowded systems.
• LMR-240 Optimized: Precisely matched to the electrical and physical requirements of LMR-240 coaxial cable, ensuring low insertion loss and excellent VSWR performance up to 6 GHz.
• EZ-Fit™ Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and guaranteeing consistent, high-quality connections in the field.
• TNC Threaded Interface: Provides a secure, vibration-resistant threaded coupling, offering reliable performance superior to bayonet connectors in many environments.
• Rugged Construction: Built with durable machined brass and Alballoy (White Bronze) plating for excellent corrosion resistance and longevity.

Specifications

Applications

• Rack-Mounted Equipment: Used for clean cable management and strain relief when connecting to crowded panels inside enclosures.
• Wireless Networking: Providing low-profile connections to routers, access points, and repeaters.
• Telemetry Systems: Ideal for installations in vehicles or compact chassis where space is limited and vibration is a concern.
• Test and Measurement: Creating low-profile, low-loss jumper cables for lab environments.

Why Source from Soyuztec Trading LLC?

As a leading supplier of RF components, Soyuztec Trading LLC ensures that every EZ-240-TF-RP-X connector meets strict quality control standards. We provide

• Local Stock Availability: Fast shipping across the UAE and GCC.

• Technical Support: Expert guidance on cable assembly and connector selection.

• Genuine Quality: Guaranteed authentic components for mission-critical reliability.
