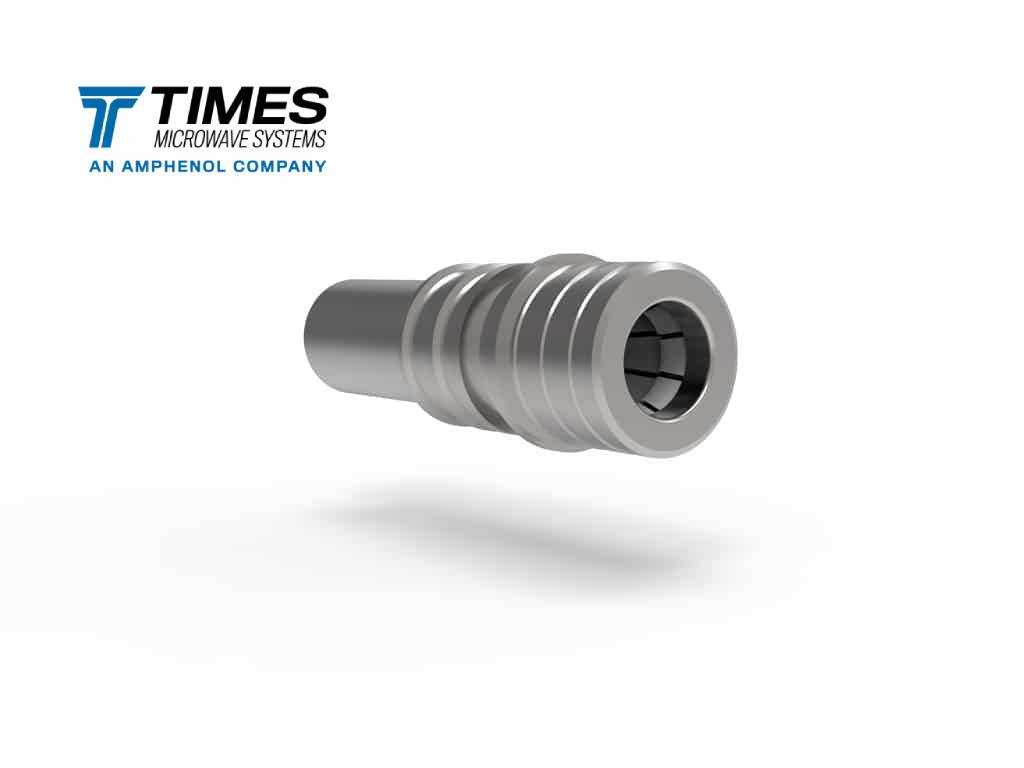

EZ-240-QM-X QMA Male Connector

Type QMA male plug straight, EZ style connector

EZ-240-QM-X Connector is a high-performance QMA Male (plug) connector specifically engineered for rapid, reliable termination of LMR-240 and similar flexible low-loss coaxial cable. As a premium component of the revolutionary EZ-Fit series, this connector provides the superior signal integrity of the QMA interface combined with the convenience of a solderless, tool-less connection. It’s the ideal choice for compact, high-density installations where speed and ease of use are crucial.

Key Features

• QMA Quick-Connect Interface: Utilizes a secure, snap-on/snap-off locking mechanism instead of threading, allowing for rapid mating and demating, which is essential in high-volume production or maintenance environments.
• LMR-240 Optimized: Precisely matched to the electrical and physical requirements of LMR-240 coaxial cable, ensuring low insertion loss and excellent VSWR performance up to 6 GHz.
• EZ-Fit Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and improving assembly consistency in the field.
• No Braid Trim Design: Simplifies cable preparation by eliminating the braid trim step, ensuring consistent, optimal termination geometry.
• Rugged and Compact: Built with durable machined brass and finished with nickel plating for reliable performance in demanding environments while maintaining a compact footprint.

Specifications

Applications

• Modular Telecommunications: Used in systems requiring frequent changes or upgrades where speed and ease of connection are crucial.
• High-Density Panels: Ideal for crowded equipment racks where accessing threaded connectors is difficult.
• Industrial IoT (IIoT): Connecting remote monitoring devices and sensors utilizing LMR-240 coaxial cable.
• Test and Measurement: Creating durable, easy-to-use jumper cables for automated test environments.
