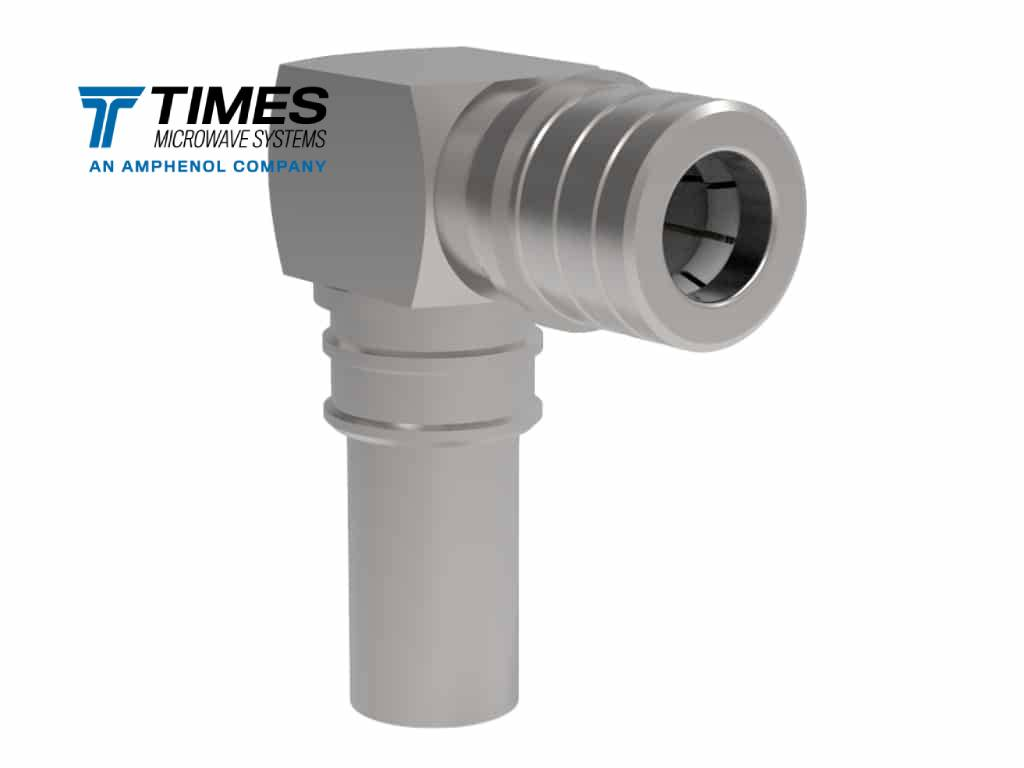

Right Angle QMA Male Plug Connector
EZ-240-QM-RA-X Connector is a high-performance, Right-Angle (90°) QMA Male (plug) connector specifically engineered for terminating LMR-240 and similar flexible low-loss coaxial cable. This specialized connector is essential for installations where quick-connect speed and space-saving design are paramount. It combines the superior low-loss performance of LMR-240 Coaxial cable with the speed of solderless EZ-Fit™ installation and the convenience of the QMA snap-on mechanism.
Key Features & Advantages
- Right-Angle (RA) Design: The 90-degree body allows the LMR-240 Coaxial cable to exit the connection point immediately, minimizing cable bending stress and reducing the required footprint in compact or crowded systems.
- QMA Quick-Connect Interface: Utilizes a secure, tool-less snap-on/snap-off locking mechanism instead of threading, allowing for faster mating and demating compared to traditional SMA or N-Type connectors.
- LMR-240 Optimized: Precisely matched to the electrical and physical requirements of LMR-240 Coaxial cable, ensuring low insertion loss and excellent VSWR performance up to 6 GHz.
- EZ-Fit™ Solderless Technology: Features a spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and improving assembly consistency in the field.
- Rugged Construction: Built with durable machined brass and nickel plating for reliable performance in demanding environments.
Specifications
| Attribute | Detail |
| Connector Style | QMA (Quick-Mate) |
| Gender | Male (Plug) |
| Interface | Right-Angle (90°), Quick-Disconnect |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-240 (and variants) |
| Inner Contact Attachment | Spring Finger (Solderless, Push On) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
Typical Applications
- Internal Enclosures: Providing quick, low-profile cable connections within densely packed equipment racks and enclosures.
- Modular Telecommunications: Used in systems requiring frequent changes or maintenance where speed and ease of connection are crucial.
- Industrial IoT (IIoT): Connecting compact remote monitoring devices and sensors utilizing LMR-240 Coaxial cable.
- Test and Measurement: Creating custom low-profile jumper cables for automated test environments.
Installation & Recommended Tooling
- Cable Prep Tool: A dedicated CST-240A is essential for achieving the exact strip dimensions required by the solderless contact.
