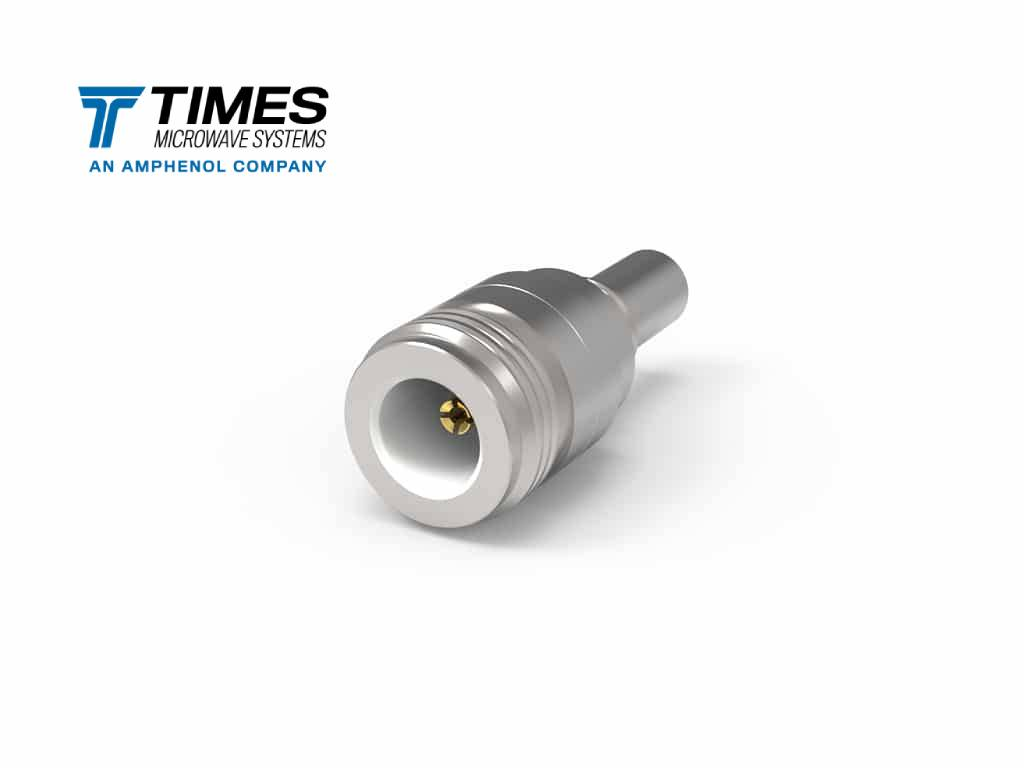

EZ-240-NF-X High-Performance N-Female Connector for LMR-240 Coaxial Cable
EZ-240-NF-X is a high-performance N-Female Type connector specifically optimized for LMR-240 series cables. It features a non-solder, “EZ” attachment design, ensuring a reliable connection in the field without the need for complex soldering equipment. Its robust construction makes it ideal for harsh environmental conditions and high-frequency applications.
Specifications
| Feature | Specification |
| Connector Type | N-Female |
| Cable Compatibility | LMR-240 (and equivalents) |
| Coupling Nut | Hex/Knurl |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz |
| Finish | Alballoy (Tri-Metal) Plating |
Benefits for Soyuztec Clients
-
Exceptional Signal Quality: Low VSWR performance up to 6 GHz ensures minimal signal loss and maximum power transfer.
-
Superior Weatherproofing: When used with appropriate heat shrink or boots, the Alballoy plating provides excellent corrosion resistance for outdoor deployments.
-
Rapid Installation: The “EZ” solderless design reduces labor time and eliminates the risk of cold solder joints, providing consistent results across large-scale projects.
-
Mechanical Integrity: Built to withstand high-vibration environments, ensuring long-term reliability in telecommunications towers and industrial settings.
Applications
-
Wireless Communications Systems
-
WiFi/WLAN Installations
-
GPS and Mobile Antennas
-
Base Station Equipment
-
Oil & Gas Communication Links
