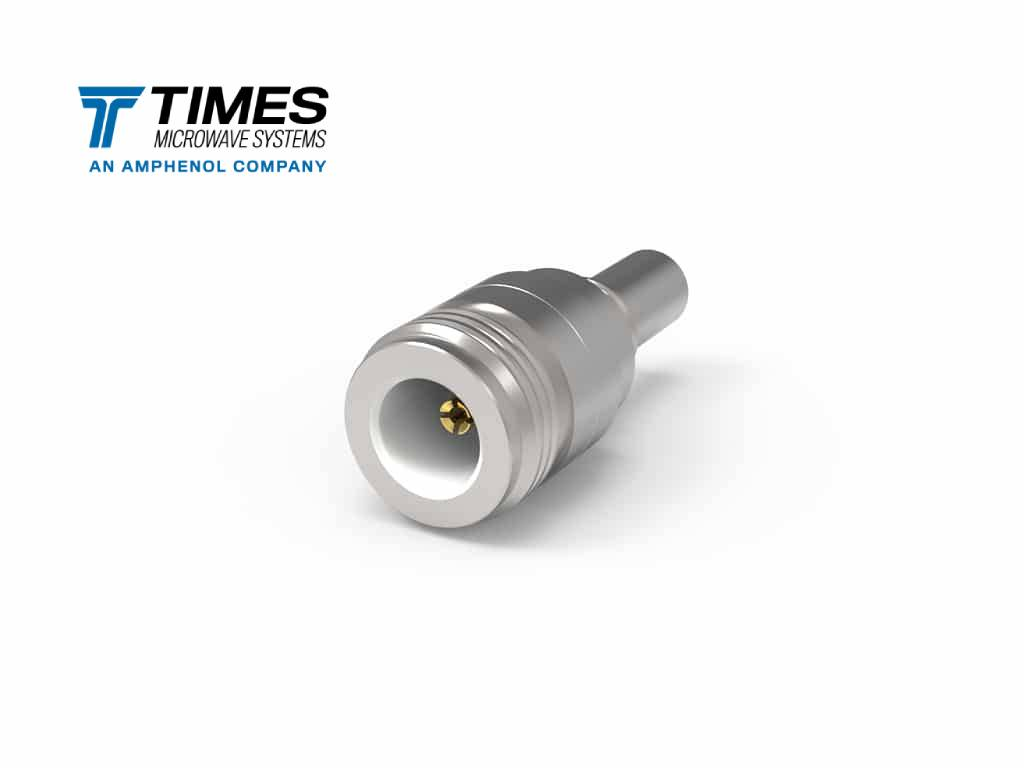

N-Female (Jack) Crimp Connector for LMR-240 (EZ-240-NF-X)
EZ-240-NF-X Connector is a high-performance N-Type Female (jack) connector specifically designed for quick, reliable termination of LMR-240 and similar flexible low-loss coaxial cable. As a part of the revolutionary EZ-Fit series, this connector provides the superior signal integrity and ruggedness of the N-Type interface, combined with the convenience of solderless installation. It is the ideal choice for creating durable, low-loss cable assemblies for systems operating up to 11 GHz.
Key Features & Advantages
- Optimized for LMR-240: Perfectly matched to the larger diameter and low-loss characteristics of LMR-240 cable, offering better performance and power handling than LMR-195 solutions.
- EZ-Fit™ Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin, significantly reducing installation time and minimizing field errors associated with heat or poor solder joints.
- High-Frequency N-Type: The robust, threaded N-Type interface is renowned for its durability and excellent electrical characteristics, supporting high-frequency applications up to 11 GHz.
- Standard Female Interface: Provides the N-Female connection point for terminating the end of a cable, typically used for extension cables or connecting to N-Male equipment ports.
- Crimp Outer Contact: Ensures a strong, mechanical and electrical grip on the cable braid, contributing to the assembly’s overall durability and RF performance.
Detailed Technical Specifications
| Attribute | Detail |
| Connector Style | N-Type |
| Gender | Female (Jack) |
| Interface | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 11 GHz |
| Compatible Cable Group | LMR-240 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Typical Applications
- Wireless Base Stations: Used for jumper cables and connections to equipment that utilize an N-Male port.
- Coaxial Jumper Assemblies: Creating high-quality, durable cable assemblies for interconnection between devices.
- Test & Measurement: Used in lab environments for robust, low-loss, high-frequency test leads.
- Industrial & Military: Applications requiring maximum reliability and performance in harsh operating conditions.
Installation & Recommended Tooling
- Crimping Tool: The required CT-240-200-100 Crimp Tool is mandatory for securing the ferrule.
- Cable Prep Tool: A dedicated CST-240 is essential for the exact strip dimensions required by the solderless contact.
