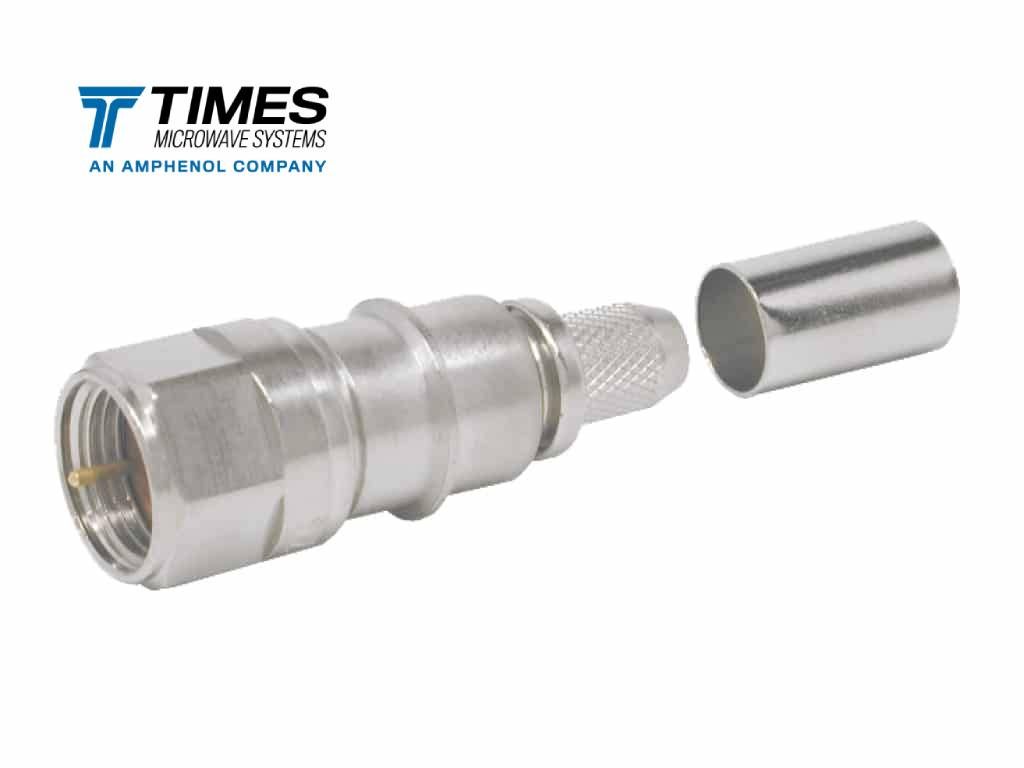

Times Microwave EZ-240-FM-75-X F Male (Plug) 75 Ohm Connector
EZ-240-FM-75-X Connector is a high-performance, F Male connector specifically engineered for the rapid, reliable termination of LMR-240-75 and similar flexible low-loss coaxial cable. As a part of the popular EZ-Fit series, this connector is crucial for high-definition video and broadcast applications that demand precise 75 Ohm impedance matching. It combines the superior low-loss performance of LMR-240 coaxial cable with the speed of solderless installation.
Key Features & Benefits
- True 75 Ohm Impedance: Engineered to maintain a consistent 75 Ohm characteristic impedance, which is essential for preserving signal quality in professional broadcast, CCTV, and high-definition digital video (SDI, HD-SDI) systems.
- LMR-240 Compatibility: Optimized for LMR-240 cable, providing significantly lower signal attenuation compared to smaller cables, ideal for medium-to-long video and data cable runs.
- EZ-Fit Solderless Technology: Features a cutting-edge spring-finger inner contact that eliminates the need for soldering the center pin. This reduces installation time and ensures consistent, reliable electrical performance in the field.
- High-Frequency Video Support: Engineered for excellent electrical performance across the demanding bandwidth required for modern digital video signals (up to 3 GHz).
Detailed Technical Specifications
| Attribute | Detail |
| Connector Style | F Male |
| Gender | Male |
| Interface | Straight, |
| Impedance | 75 Ohms |
| Max Frequency | 3 GHz (Suitable for HD-SDI/3G-SDI) |
| Compatible Cable Group | LMR-240 (75 Ohm version) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Typical Applications
- Broadcast & Studio: Terminating video cables that connect to switchers, routing matrices, and patch panels using SDI, HD-SDI, and 3G-SDI video standards.
- High-Resolution CCTV: Maintaining signal integrity over long cable runs for commercial security and surveillance systems.
- Audio/Visual (A/V) Infrastructure: Used in large corporate or educational facilities requiring reliable 75 Ohm data transmission.
- Test and Measurement: Creating precision 75 Ohm female jumpers or connections for lab equipment.
Installation & Recommended Tooling
- Crimping Tool: The required CT-240-200-100 Crimp Tool is mandatory for a uniform and lasting crimp.
- Cable Prep Tool: The dedicated CST-240 is essential for achieving the exact strip dimensions required by the solderless contact.
