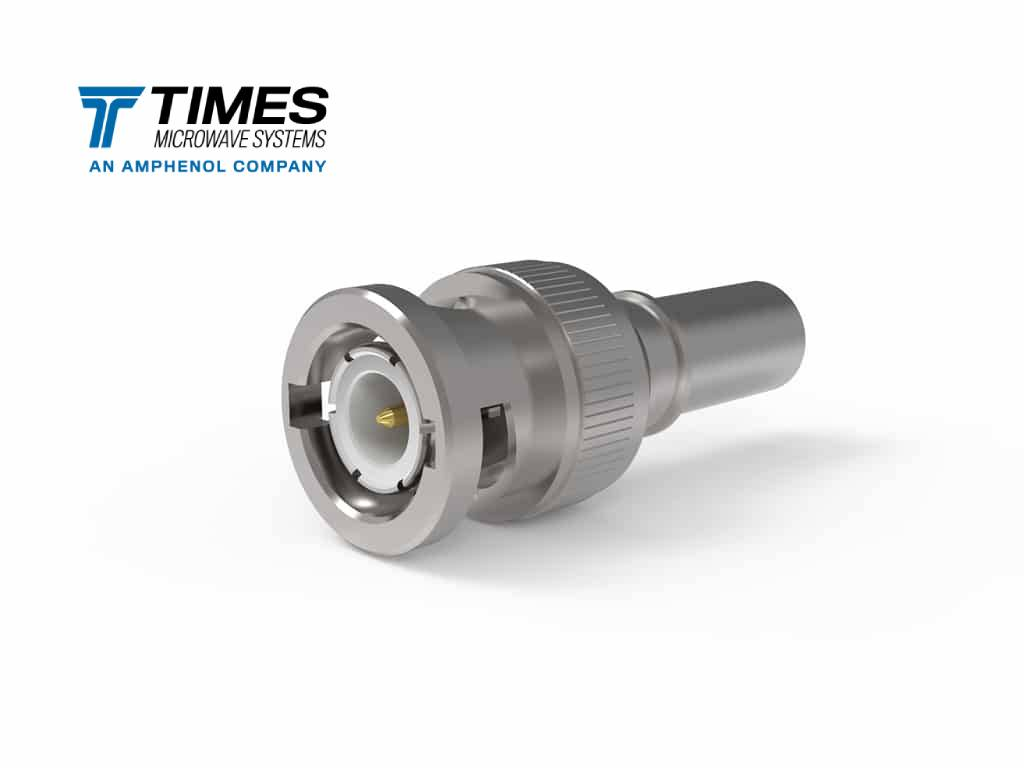

Times Microwave EZ-240-BM-X BNC Plug Straight EZ Style Connector
Soyuztec Trading LLC is proud to offer the EZ-240-BM-X is a high-performance BNC Male solderless “X-Series” connector from Times Microwave Systems. Engineered for speed and reliability, the EZ-240-BM-X eliminates common assembly errors, making it the industry standard for field-terminating LMR-240 and TCOM-240 cables.
Features
-
Solderless Installation: Features a spring-finger inner contact and a crimp-style outer contact, eliminating the need for soldering and reducing installation time to under 30 seconds
-
No-Braid Trim Design: Specifically engineered to require no braid trimming, which prevents Foreign Object Debris (FOD) and ensures a consistent termination every time.
-
Tri-Metal Plating: Finished with Albaloy (White Bronze), providing superior corrosion and salt-fog resistance compared to standard silver or nickel plating.
-
Rugged Performance: The BeCu (Beryllium Copper) pins maximize surface contact and maintain a strong spring force, even in extreme cold or high-vibration environments.
-
Superior VSWR: Part of the X-Series, designed to provide excellent broadband VSWR performance up to 4 GHz.
Specifications
| Attribute | Detail |
| Connector Style | BNC |
| Gender | Male (Plug) |
| Interface | Straight, Bayonet Coupling |
| Impedance | 50 Ohms |
| Max Frequency | 3 GHz |
| Compatible Cable Group | LMR-240 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Solderless) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Nickel Plating |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
Recommended Installation Tools
To ensure a manufacturer-certified termination, Soyuztec recommends the following Times Microwave tool kit
-
CST-240A: Precision cable stripping tool.
-
CT-240/200/100: Crimp tool for secure outer contact attachment.
-
CCT-03: Heavy-duty cable cutting tool.
Why Buy From Soyuztec?
As the Exclusive Distributor of Times Microwave Systems in the MENA region, Soyuztec Trading LLC guarantees:
-
100% Authentic Products: Direct from the manufacturer with full warranty.
-
Local Stock: Immediate availability in our Dubai warehouse for rapid delivery.
-
Technical Support: Expert guidance on RF system design and cable assembly.
-
Custom Assemblies: We can provide pre-terminated LMR-240 cables with the EZ-240-BM-X connector to your exact length specifications.
