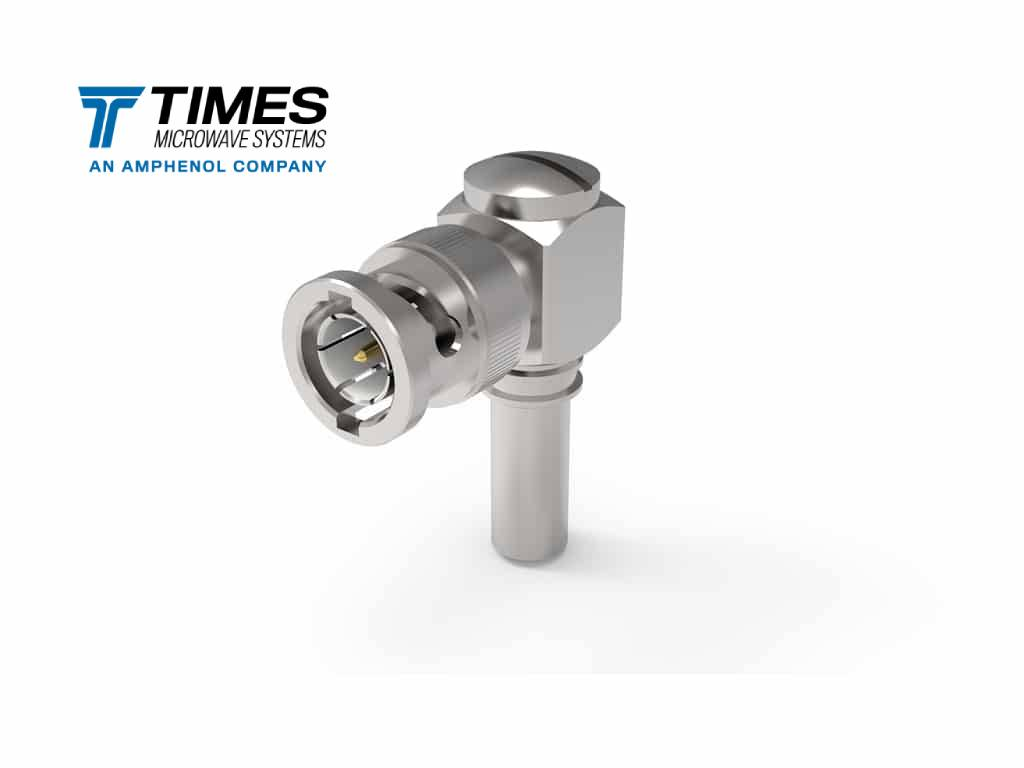

EZ-240-BM-RA-X BNC Male Right Angle Connector

Times Microwave Systems EZ-240-BM-RA-X BNC-Male (plug) right angle connector

Right angle Connector is a high-performance, BNC Male (plug) connector specifically engineered for terminating LMR-240 and similar flexible low-loss coaxial cable. This specialized connector is essential for installations in tight spaces or crowded equipment panels where a straight connection is impractical. It combines the superior low-loss performance of LMR-240 cable with the speed and reliability of the solderless EZ-Fit installation method.

Features

• Solderless EZ-Style Design: Features a unique spring-finger inner contact that securely snaps onto the cable’s center conductor. No soldering is required, significantly reducing installation time.

• No-Braid-Trim Technology: Eliminates the need for braid trimming, reducing Foreign Object Debris (FOD) and ensuring a consistent, high-quality termination every time.

• Right-Angle Configuration: Ideal for space-constrained environments and tight cabinet installations where a straight connector would cause excessive cable strain.

• Rugged Construction: Built with an Alballoy (Tri-metal) plated brass body for superior corrosion resistance and a gold-plated center pin for optimal signal integrity.

• Weatherproof Performance: When used with the WSB-240 weather-sealing strain relief boots, the connection achieves an IP67 rating.

Specifications

Applications

• Tactical and Mobile Communications

• Oil & Gas Remote Monitoring

• WLAN and Wi-Fi Infrastructure

• GPS and Satellite Ground Stations

• In-Building Wireless (DAS)
