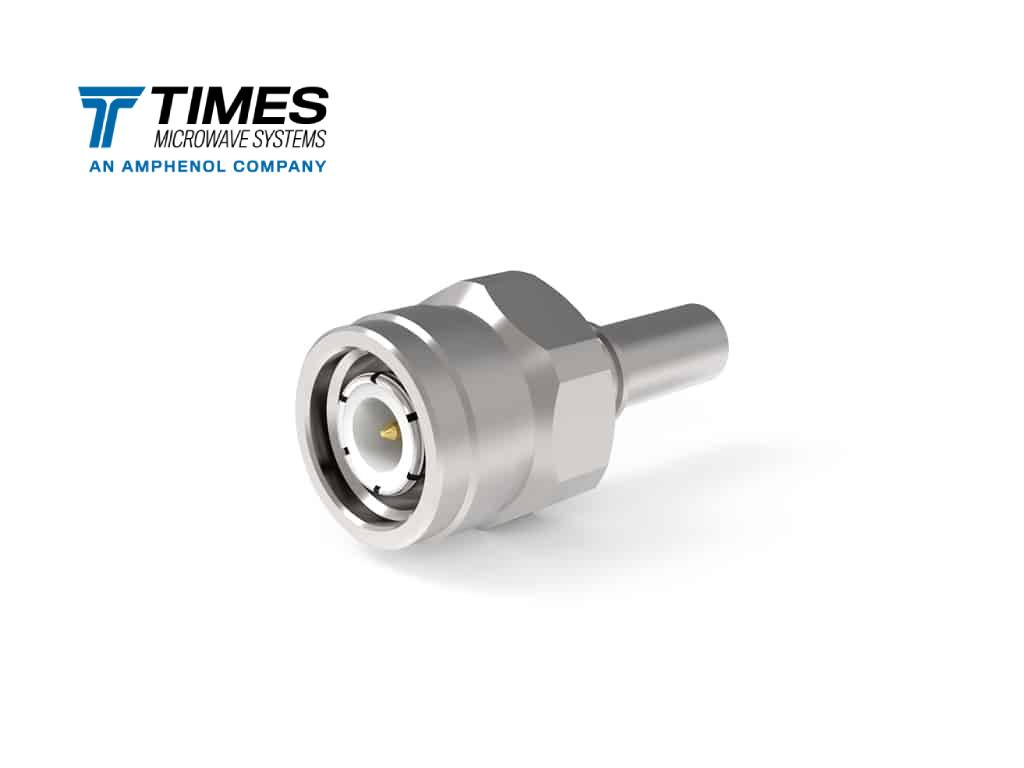

EZ-195-TM-X Premium TNC Male Straight Connector for LMR-195 Coaxial Cables
Soyuztec Trading LLC is proud to offer the EZ-195-TM-X, a high-performance, non-solder RF connector designed specifically for LMR-195 series cables. Engineered by Times Microwave Systems, this “EZ” style connector eliminates common assembly errors and ensures maximum signal integrity in mission-critical telecommunications, military, and aerospace applications.
Features
-
Solderless Installation: Features spring-finger inner contacts and crimp-style outer contacts, eliminating the need for soldering and reducing installation time.
-
No-Braid Trim Design: The unique design removes the need to trim the cable braid, preventing Foreign Object Debris (FOD) and ensuring a consistent termination every time.
-
Enhanced Durability: Built with Beryllium Copper (BeCu) pins that maximize surface contact and provide superior spring force, making it ideal for high-vibration and extreme-cold environments.
-
Weatherproof Interface: The TNC interface is a miniature, threaded connector providing higher frequency performance than BNC, with a secure, weatherproof fit.
Specifications
| Attribute | Specification |
| Part Number | EZ-195-TM-X (Stock Code: 3190-6496) |
| Interface | TNC Male (Plug) |
| Body Style | Straight |
| Impedance | 50 Ohms |
| Frequency Range | DC to 6 GHz |
| VSWR | < 1.30:1 (up to 6 GHz) |
| Inner Contact Attach | Spring Finger (Non-Solder) |
| Outer Contact Attach | Crimp (0.213″ Hex) |
| Body Finish | Alballoy (White Bronze) |
| Pin Finish | Gold Plated |
| Operating Temp | -40°C to +125°C |
Compatibility & Tooling
To ensure a 100% reliable connection, Soyuztec recommends using genuine Times Microwave preparation and installation tools
-
Compatible Cables: LMR-195, LMR-195-DB, LMR-195-FR.
-
Prep Tool: CST-195/200 (Part Number: 3192-102).
-
Crimp Tool: CT-240/200/100 (Part Number: 3190-667).
Why Source from Soyuztec Trading LLC?
As the Exclusive Distributor for Times Microwave Systems in the MENA region, we provide
-
Authenticity Guaranteed: 100% genuine OEM products directly from the manufacturer.
-
Local Inventory: Ready stock in our Dubai warehouse for rapid delivery across the UAE and GCC.
-
Technical Support: Expert guidance on RF path loss calculations and connector selection.
-
Custom Assemblies: We can provide pre-terminated LMR-195 cable assemblies to your exact length specifications.
