EZ-195-TM-RP-X TNC Male Reverse Polarity EZ Connector for LMR-195 Coaxial Cable

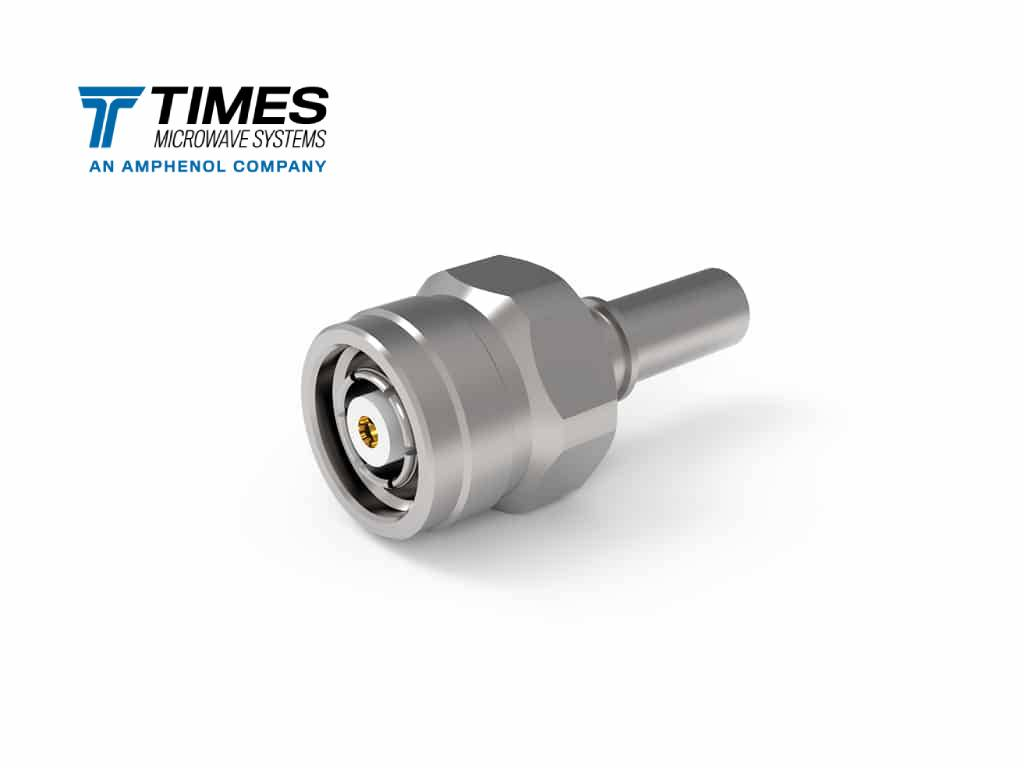

EZ-195-TM-RP-X Connector is a high-performance, reverse polarity TNC male (plug) connector specifically designed for fast, reliable termination of LMR-195 and similar flexible low-loss coaxial cables. Part of the EZ-Fit series, this connector is engineered to minimize installation errors and maximize RF performance, making it an ideal choice for critical wireless applications.
Key Features & Benefits
- EZ-Fit Technology: Features a solderless, spring-finger inner contact and a crimp outer contact, eliminating the need for soldering the center pin and drastically reducing installation time and complexity.
- Reverse Polarity (RP-TNC): Designed for applications requiring the Reverse Polarity TNC interface, common in Wi-Fi and wireless networking systems.
- No Braid Trim Design: The unique design eliminates the need to trim the coaxial cable braid, which reduces the risk of Foreign Object Debris (FOD) and ensures consistent, optimal geometry for superior VSWR performance.
- High Performance: Provides excellent electrical performance with low loss and an optimal Voltage Standing Wave Ratio (VSWR) up to 6 GHz.
- Rugged Construction: Built with a durable brass body and Alballoy finish for corrosion resistance, making it suitable for both indoor and outdoor professional installations.
Specifications
| Attribute | Detail |
| Connector Style | TNC (Reverse Polarity) |
| Gender | Male (Plug) |
| Interface | Straight |
| Impedance | 50 Ohms |
| Max Frequency | 6 GHz |
| Compatible Cable Group | LMR-195 (or equivalent) |
| Inner Contact Attachment | Spring Finger (Non-Solder) |
| Outer Contact Attachment | Crimp |
| Body Material/Finish | Brass / Alballoy (White Bronze) |
| Center Contact Plating | Gold |
| Dielectric Material | PTFE (Polytetrafluoroethylene) |
| Operating Temperature | -40°C to 125°C |
Applications
- Wi-Fi & Wireless Networking: Ideal for connecting access points, routers, and antennas in both commercial and residential settings.
- Antenna Systems: Used in various external and internal antenna installations where LMR-195 coaxial cables is utilized.
- Telemetry & Data Transfer: Reliable connection for low-loss data applications.
- Test and Measurement: Quick and repeatable field termination for mobile and temporary RF setups.
Installation & Tooling
- Cable Prep Tool: CST-195/200
- Cutting Tool: CCT-02
