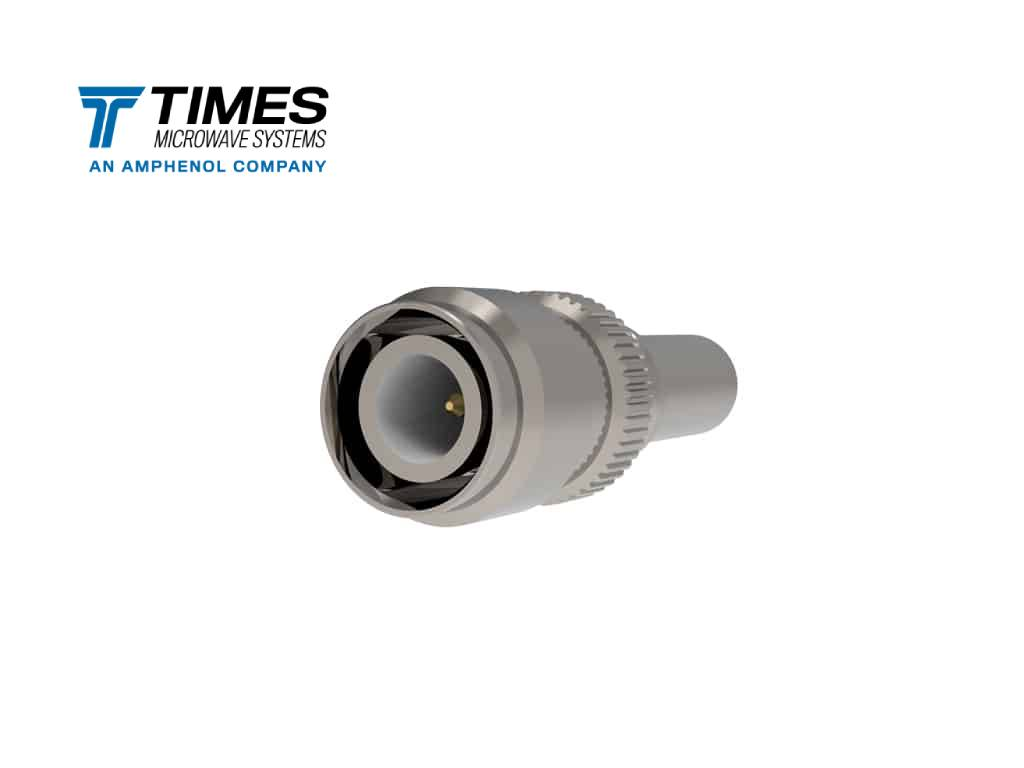

Times Microwave EZ-195-TF-RP-X TNC Female Reverse Polarity Crimp/Captivated for LMR-195 Coaxial Cable
EZ-195-TF-RP-X is a high-performance, precision-engineered TNC Female Reverse Polarity (RP) connector designed specifically for LMR-195 coaxial cables. Part of the “X” series, this connector features a solderless design, utilizing a spring finger inner contact and a crimp outer attachment for rapid, reliable field installation without the need for soldering irons.
Features
-
Solderless Installation: The “EZ” design utilizes a spring finger center pin, ensuring a consistent electrical connection and reducing installation time by up to 80%.
-
Reverse Polarity (RP): Specifically designed for Wi-Fi and wireless networking equipment that requires RP-TNC interfaces to comply with regulatory standards.
-
Advantage-X Design: Offers superior weatherproofing and improved grounding compared to standard connectors.
-
Tri-Metal Plating: Provides excellent corrosion resistance and eliminates the “tarnishing” associated with silver plating, ensuring long-term electrical stability.
Specifications
| Property | Specification |
| Connector Type | TNC Female Reverse Polarity (RP) |
| Cable Compatibility | LMR-195 |
| Attachment Method | Crimp (Outer), Spring Finger (Inner) |
| Body Finish | Alballoy (Tri-Metal) Plated |
| Inner Contact | Gold Plated |
| Impedance | $50\Omega$ |
| Frequency Range | DC to 6 GHz |
| Dielectric Type | PTFE |
| Coupling Nut | Hex/Knurl |
Installation Tools
To ensure the performance specifications of the LMR-195 system, the following Times Microwave tools are recommended for use with this connector
-
Crimp Tool: CT-240/200/195/100
-
Prep Tool: CST-195/200 (Combination tool for stripping and trimming)
